Traxxas 9843R - TRX-4M Portal Axle Kit
A New Level of Off-Road Capability

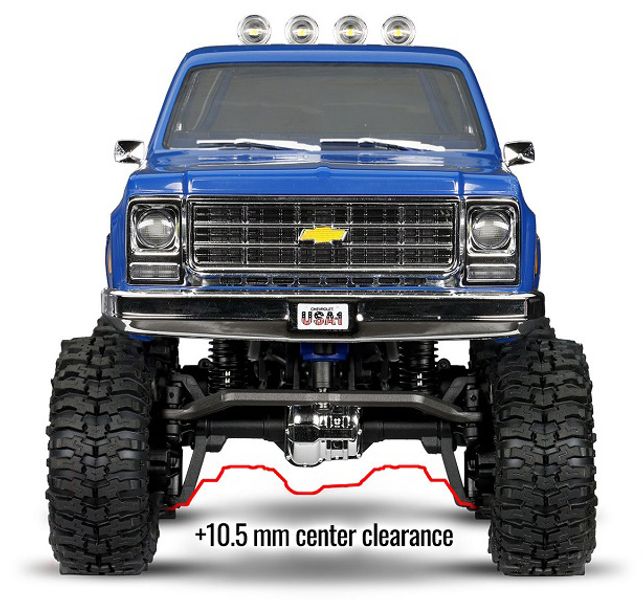

Just like the larger TRX-4®, new TRX-4M™ portal axles increase your off-road capability by raising the vehicle at the axles. Center ground clearance increases by over 10 mm and the track widens by 9 mm for a whole new level of 1/18 scale crawling capability.
The kit includes all-metal portal gears with self-lubricating bushings for long-lasting performance. The axles come completely assembled and ready to install with updated transmission gears to maintain stock speed and torque. Portal axles are also compatible with most TRX-4M accessories and work great with the optional 9891 2-speed transmission.
FEATURES ON PORTAL AXLE KIT:

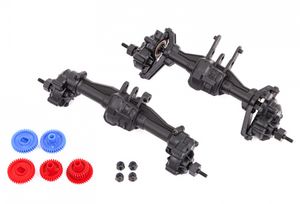

- Includes complete front and rear axles with portal assemblies
- 10.5 mm higher center ground clearance
- 9 mm wider track
- All-metal portal gears
- Includes two transmission gear sets:
- RED: optimized for single speed transmissions
- BLUE: optimized for 2-speed transmissions
- Retains stock forward-rotation motor
For standard single-speed transmission - Use the included red gears with the single speed transmission for general use or keep the standard gearing for crawling purposes. Portal axles are not compatible with 9776R low-range gears.
For optional 2-speed high/low transmission - Use the included blue gears to maintain stock vehicle speed in high gear and crawling speed in low gear.
Step Up to Even Greater Off-Road Capability
To boost your TRX-4M's performance even further add the optional two-speed transmission to maintain stock speed in high gear and provide an ultra-low crawl gear for maximum rock-crawling torque. Standard TRX-4M trucks can also upgrade to the taller 2.4" Mickey Thompson® Baja Pro XS® tires found on High Trail™ edition trucks for even higher ground clearance and a more aggressive stance.
