Traxxas 820464 TRX-4 Ford Bronco Ranger XLT Scale &Trail Crawler

Art.nr: TRX 82046-4SUN
7.495,- 7.895,- -5%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Traxxas
På lager: 1

Traxxas TRX-4 Ford Bronco Ranger XLT - Scale & Trail Crawler Sunset.




Originally introduced in 1966 as a 4x4 compact SUV, the Ford Bronco matured as a full-size truck in the late 1970s, cementing its status as a rugged off-roader. Traxxas honors the classic 1979 Ford Bronco with this beautifully detailed and faithful reproduction mounted on the incredibly capable TRX-4 chassis. From the chrome wheels and bumpers to the gorgeous Sunset or red graphics, the TRX-4 recaptures the Bronco’s iconic era with the toughness and technology that could only come from Traxxas.



Officially Licensed Ford Bronco Body
  • Scale details: grill, chrome bumpers, side mirrors, chrome side trim, and wipers
  • Clear front and side windows
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
  • Additional scale accessories sold separately

Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Traxxas EZ-Set® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
  • Two stage low voltage protection (LVD)

Five drive profiles:
  • Sport Mode — forward / brake / reverse
  • Race Mode — forward / brake / no reverse
  • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Motor
  • Powerful Titan™ 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh

Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts

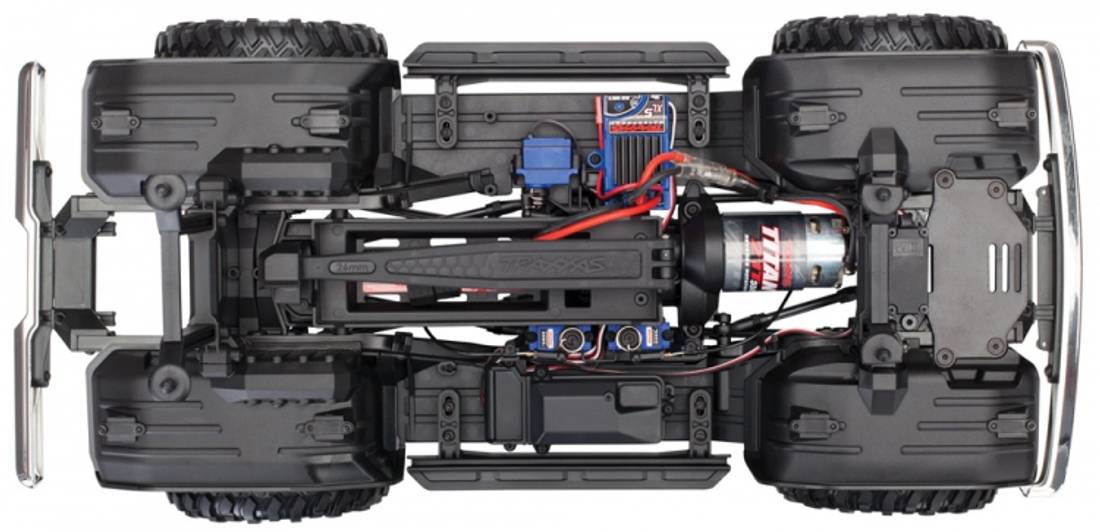

      Rigid Steel Frame
  • 1.5mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails

Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case

Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing

Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
 Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends

Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals

Wheels and Tires
  • Replica chrome wheels with hub inserts
  • Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12mm steel hex

Transmitter
  • TQi™ 2.4GHz 4-channel transmitter
  • Traxxas Link enabled
  • Telemetry ready #6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13ms frame rate and near-zero latency for responsive control

  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating



Specs:

  • Length: 523 mm
  • Front Track: 249 mm
  • Rear Track: 249 mm
  • Ground Clearance: 80 mm
  • Weight: 2.91 kg
  • Height: 266 mm
  • Wheelbase: 312 mm
  • Approach Angle: 63.82°
  • Departure Angle: 43.22°
  • Breakover Angle: 58.93°
  • Front Shock Length: 90 mm
  • Rear Shock Length: 90 mm
  • Front Wheels: 1.9 x 1.02" (49 x 26 mm)
  • Rear Wheels: 1.9 x 1.02"  (49 x 26 mm)
  • Front Tires: 4.64 x 1.89" (118 x 48 mm)
  • Rear Tires: 4.64 x 1.89" (118 x 48 mm)
  • Hex Size: 12mm
  • Speed Control: XL-5 HV
  • Motor (electric): 21T Reverse Rotation
  • Transmission: 2-speed Hi-Lo, Remote Shifting
  • Gear Pitch: 32P
  • Differential Type: 4 Gear, Remote Locking
  • Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
  • Brake Type: Electronic “Hill Hold”
  • Drive System: Shaft Driven 4WD
  • Steering: Chassis Mounted Servo
  • Servo: 2075X Metal Gear
  • Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
  • Receiver: 6533
  • Skill Level: 2
  • Battery Tray: L158.75 x W47 x H23/26 mm


Motor Specs:

  • Type: High-torque brushed motor
  • Size: 550
  • Weight: 390 g
  • Overall length: 78 mm
  • Can Length: 57 mm
  • Diameter: 38.9 mm
  • Turns: 21T reverse rotation
  • Voltage: 16.8V


ESC Specs:

  • Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
  • Case Size: W31 x D55 x H26 mm
  • Weight: 74 g
  • Motor Limit: 21-turns (550 size)
  • On Resistance Forward: 0.004 Ohms
  • On Resistance Reverse: 0.004 Ohms
  • Peak Current - Forward: 100A
  • Peak Current - Reverse: 100A
  • Braking Current: 60A
  • Continuous Current: 18A
  • BEC Voltage: 6.0 VDC
  • BEC Current: 1A
  • Power Wire: 14 Gauge / 5"
  • Input Harness Wire: 26 Gauge / 14.5"
  • Transistor Type: MOSFET
  • PWM Frequency: 1700Hz
  • Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
  • Thermal Protection: Thermal Shutdown
  • Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

  • Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode:* 50% FWD, 100% brakes, 50% REV
  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

* Patented

What’s In The Box:

  • TRX-4, Ready-To-Race® model
  • XL-5 HV waterproof electronic speed control
  • Titan™ 21T reverse rotation motor
  • TQi™ 2.4GHz radio system with cruise control
  • High quality maintenance tools


What You’ll Need:

  • Batteries:TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
  • Charger:  Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
  • AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
