Traxxas 82024-4 TRX-4 Sport Scale Crawler 4x4 Truck 1/10 RTR TAN

Art.nr: TRX 82024-4 TAN

5.595,- ~~5.895,-~~ -5%

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

Traxxas

På lager: 2

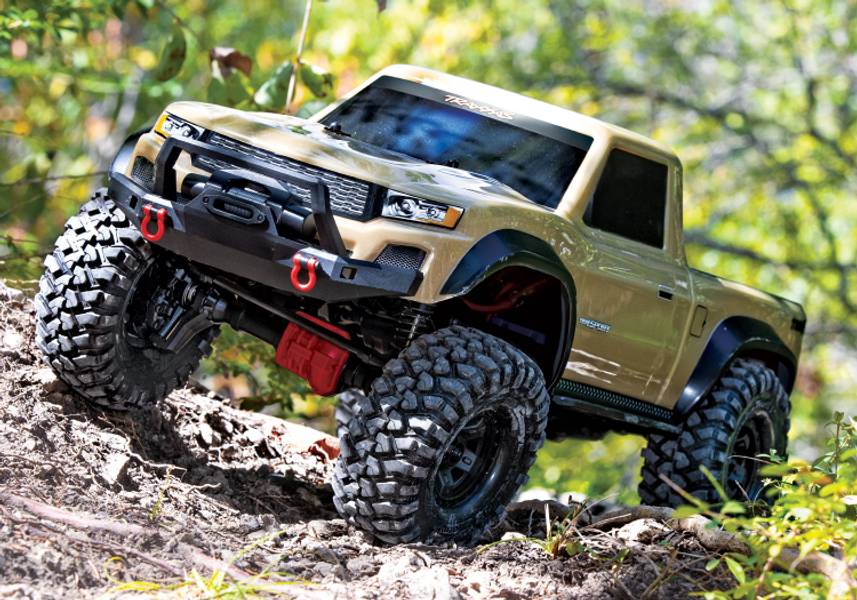

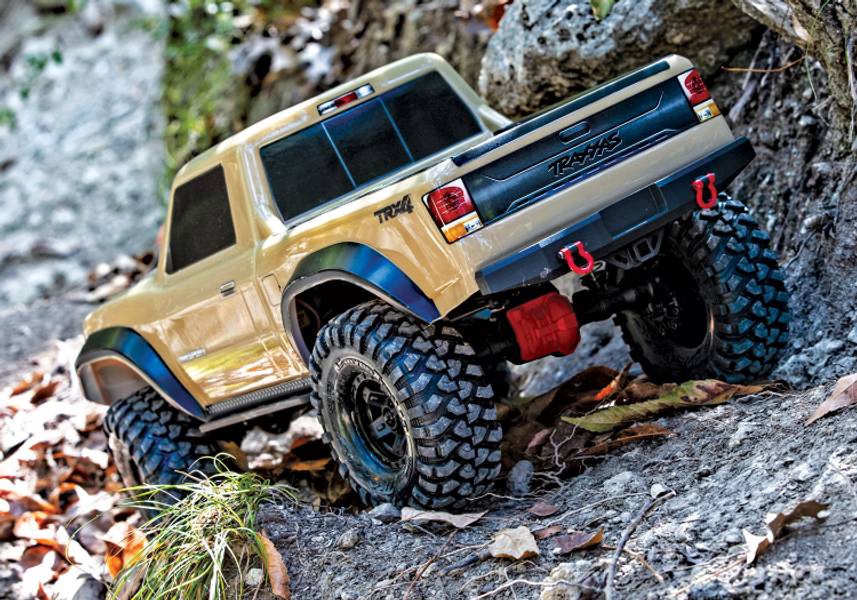

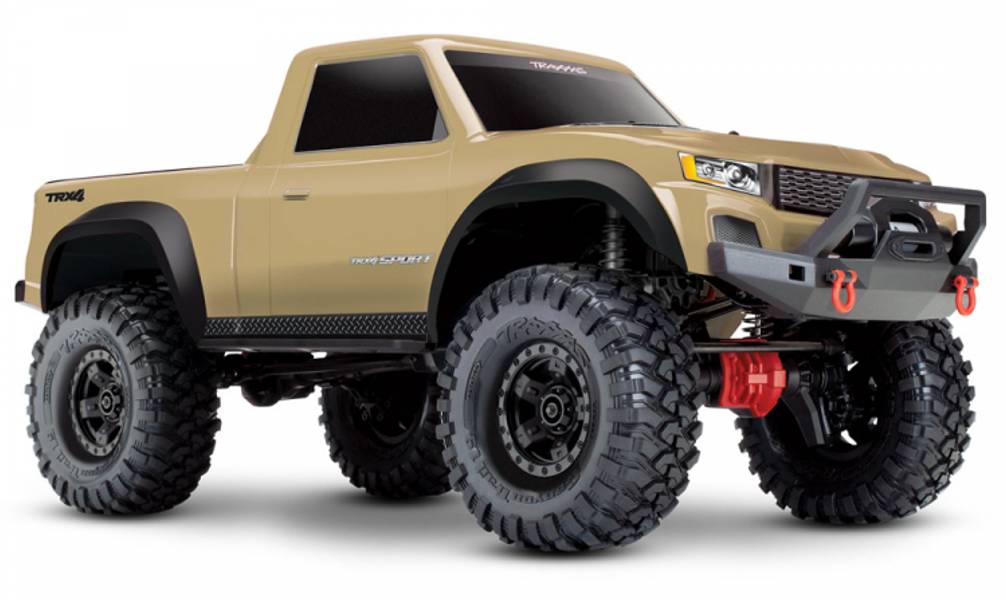

Traxxas TRX-4 SPORT - 4x4 RC Scale Crawler 1/10 Truck RTR

PURPOSE BUILT
The TRX-4 Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon® Trail tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.

Features:

Trail-Tuned XL-5 HV Waterproof Electronic Speed Control

Fully waterproof design
Traxxas EZ-Set® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
Two stage low voltage protection (LVD)
Five drive profiles:
Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Motor

Powerful Titan™ 21T reverse rotation motor with internal cooling fan
Precise preset gear mesh adjustments
Motor retention separate from gear mesh

Portal Axles

Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

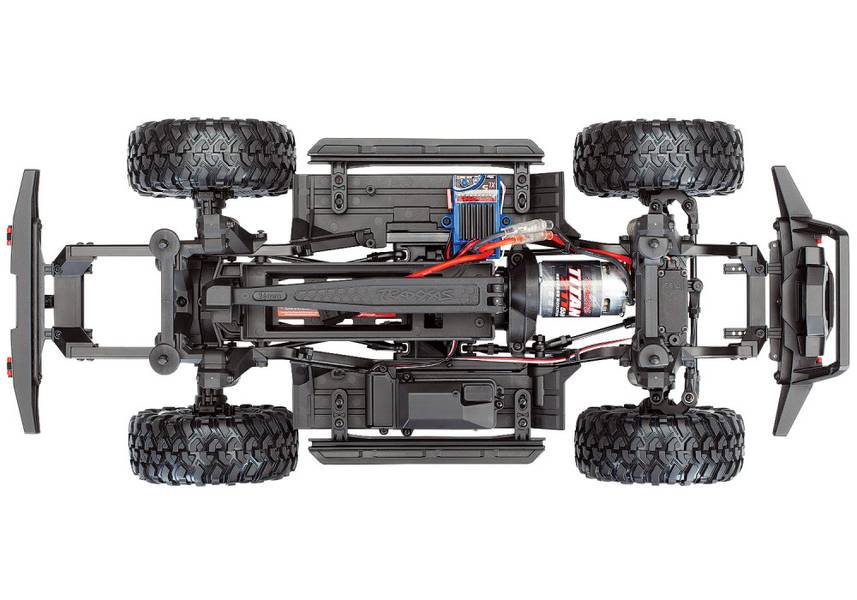

Rigid Steel Frame

1.5 mm thick steel frame rails increase torsional rigidity
Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails

Drivetrain

Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Spool-locked front and rear differentials
Steel gear transfer case

Innovative Battery Compartment

Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Transmission

Single-speed with steel gears
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing

Steering

Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer

Suspension

Front — 3 link with panhard
Rear — triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5mm diameter steel link rods with 4mm threaded ends

Aluminum GTS Shocks

Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

Rugged black 5-spoke wheels
Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12mm steel hex

TQ™ 2.4GHz 2-channel transmitter
Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating

TRX-4 SPORT DATA:

Length: 557 mm
Front Track: 249 mm
Rear Track: 249 mm
Ground Clearance: 80 mm
Weight: 2.63 kg
Height: 241 mm
Wheelbase: 312 mm
Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 58.93°
Front Shock Length: 90 mm
Rear Shock Length: 90 mm
Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)
Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
Hex Size: 12 mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Locked Spool
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 2
Battery Tray: L158.75 x W47 x H23/26 mm

XL-5 HV ESC Specs:

Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
Case Size: 1.23” W x 2.18” D x 1.04” H
Weight: 74 g
Motor Limit: 21-turns (550 size)
On Resistance Forward: 0.004 Ohms
On Resistance Reverse: 0.004 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5”
Input Harness Wire: 26 Gauge / 14.5”
ransistor Type: MOSFET
PWM Frequency: 1700Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode:* 50% FWD, 100% brakes, 50% REV
Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

* Patented

Motor Specs:

Type: High-torque brushed motor
Size: 550
Weight: 390 g
Length: 78mm (Overall) - 57 mm (Can) - 38.9 mm diameter
Turns: 21T reverse rotation
Voltage: 16.8V

What’s In The Box:

TRX-4, Ready-To-Drive® model
XL-5 HV waterproof electronic speed control
Titan™ 21T reverse rotation motor
TQ™ 2.4GHz radio system
High quality maintenance tools

What You’ll Need:

Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
