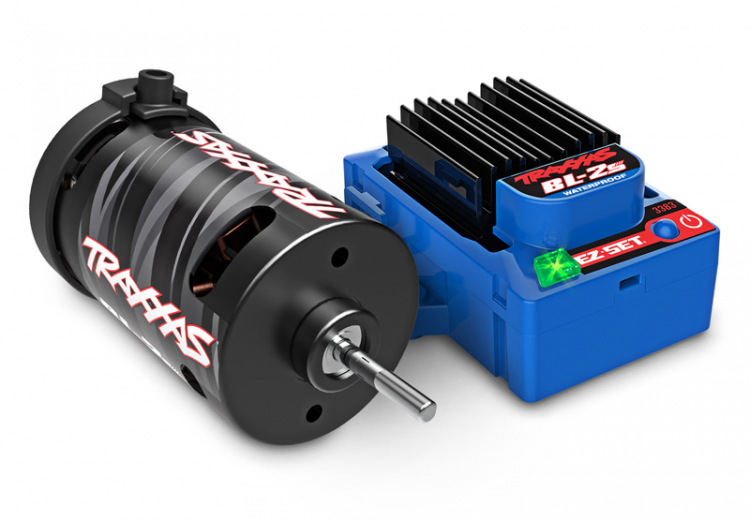

Traxxas 3382 - BL-2s™ Brushless Power System - Fast, Affordable, Fun!
The BL-2s™ brushless power system delivers more speed, faster acceleration, and virtually maintenance-free operation at an affordable price. Drivers experience smooth, effortless power with added punch for tire-shredding burnouts and blazing fast speed. Optimized for 7-cell NiMH and 2s LiPo batteries, the BL-2s delivers all-day fun, battery after battery.

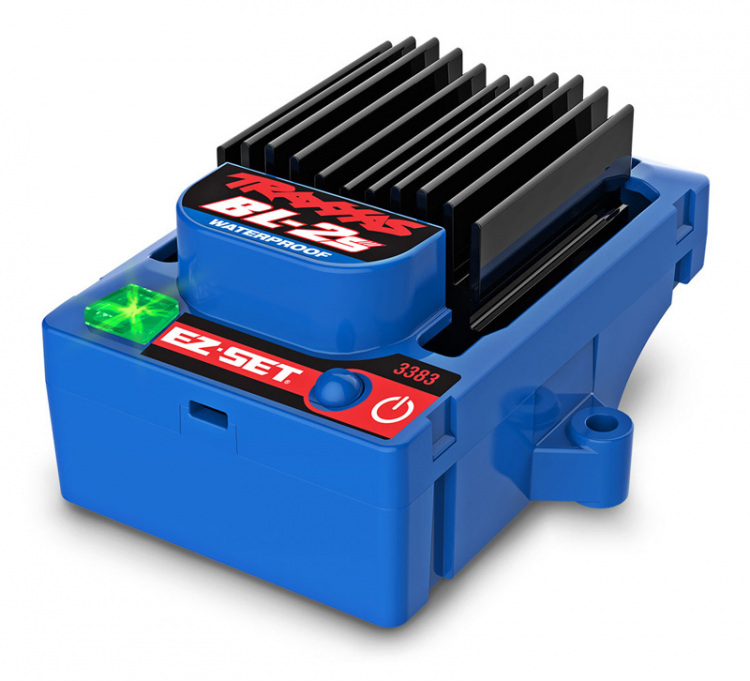

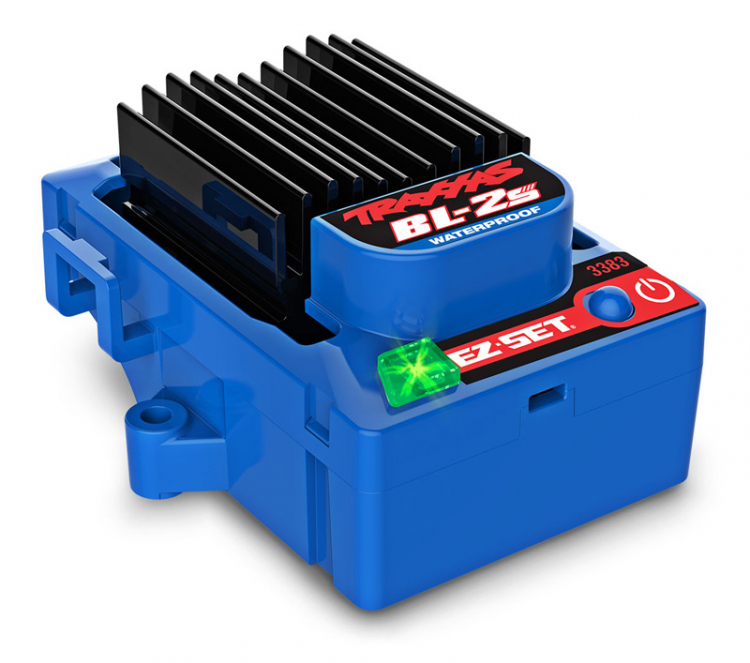

BL-2s Brushless Electronic Speed Control
The waterproof BL-2s speed control delivers all the benefits of brushless technology with the safety and convenience features you expect from Traxxas. Built-in low-voltage detection, thermal shutdown protection, and EZ-Set® one button programming make BL-2s reliable and easy to operate.
BL-2s ESC Features:
- Fully waterproof
- Built-in two-stage low voltage detection for lithium polymer (LiPo) batteries
- NiMH battery packs 6-7 cells (7.2 - 8.4 V) or 2-cell LiPo battery packs (7.4 V)
- Patented Training Mode™ reduces the power output by 50% for new or younger drivers. When they're ready, simply change profiles to unleash full-throttle action.
- EZ-Set® one-button setup operates and programs just like other Traxxas speed controls
- Multi-color status LED
- Two-stage thermal shutdown protection protects the BL-2s from overheating
- Large aluminum heatsink dissipates heat
- Built-in auxiliary fan output
- Keyed motor connector
Three programmable drive profiles:
- Sport Mode – Fwd / Brake / Rev
- Race Mode – Fwd / Brake
- Training Mode™– 50% Fwd / Brake / 50% Rev

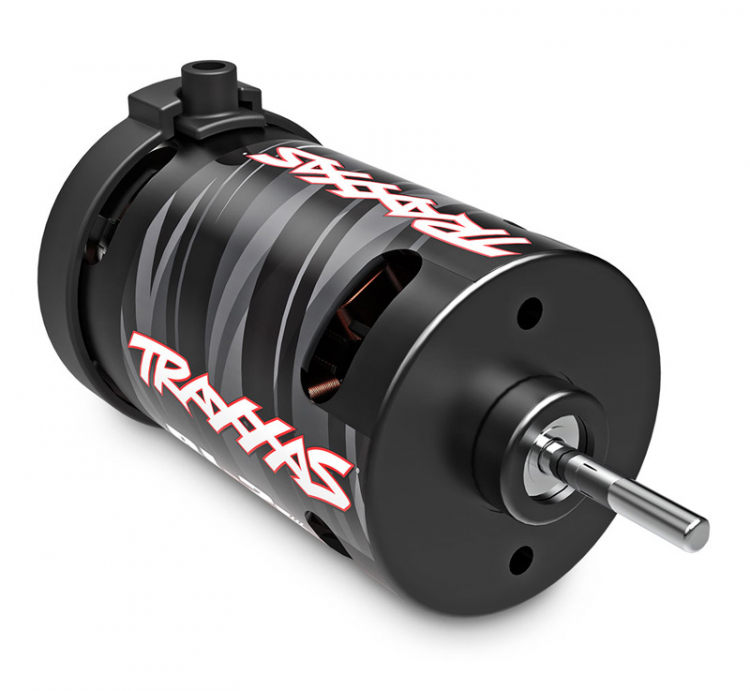

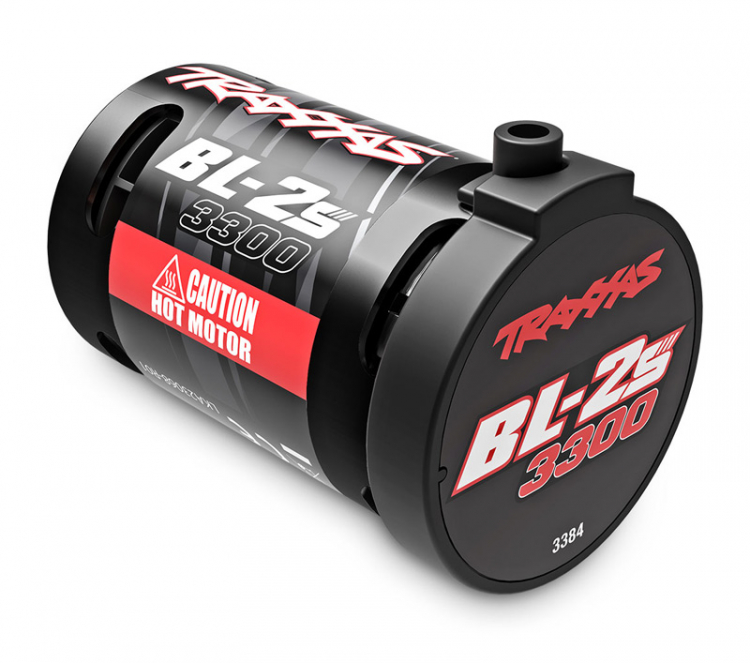

BL-2s Brushless Motor
The sensorless BL-2s 3300 kV motor delivers the all-day speed and torque you expect from brushless technology, without the high price tag. With no brushes to wear out, the BL-2s is long-lasting and virtually maintenance free. Low-friction ball bearings and an integrated cooling fan open the door to all-day fun.
BL-2s Brushless Motor Features::
- Integrated cooling fan
- Low-maintenance design
- High-speed ball bearings
- 3300 kV

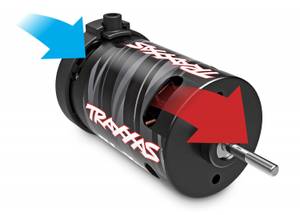

Integrated Cooling Fan
With no brushes to wear out, the BL-2s brushless motor delivers long-term fun with very low maintenance. An integrated fan pulls cooling air through the motor for all-day running without slowing down.

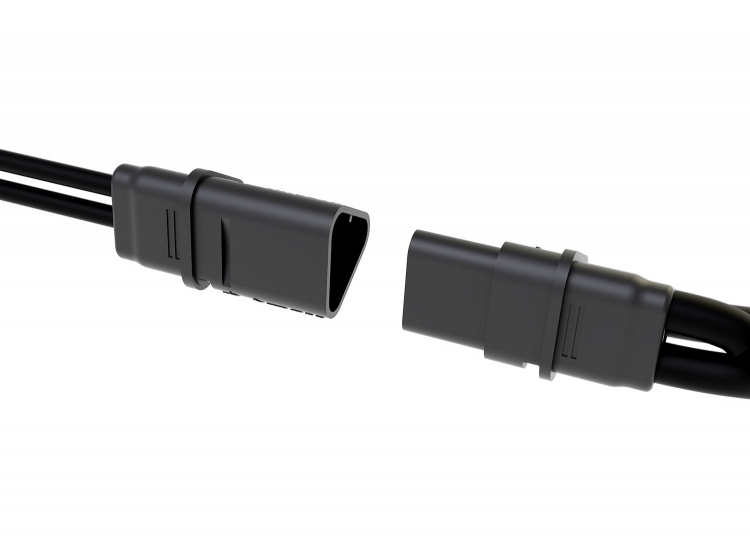

Quick Connect Motor Plug
The Traxxas Quick Connect Motor Plug delivers free-flowing power from the ESC to the motor. The specially-keyed design aligns the plug in the correct orientation every time.
BL-2s WATERPROOF ESC SPECIFICATIONS
- Input Voltage: NiMH 6-7 cells (7.2 to 8.4 volts) or LiPo 2 cell (7.4 volts)
- Case Size: W39 x D59 x H31mm
- Weight: 87 grams
- Reverse Delay: Yes, with lockout
- BEC Voltage: 6.0 volts
- BEC Current: 3 amps
- Input Wire: 14 gauge
- Motor Connectors: Quick Connect Motor Plug
- Input Harness Wire: 26 gauge
- Low Voltage Detection: 2-stage indicators, switchable (on or off)
- Thermal Protection: 2-Stage thermal shutdown
- Single-Button Setup: Traxxas EZ-Set®
- Battery Input Connector : Traxxas High-Current Connector
- Motor Types: Brushless
- Accessory Port: Auxiliary fan
Profile selection:
- Sport Mode: 100% Fwd, 100% Brake, 100% Rev
- Race Mode: 100% Fwd, 100% Brake, No Rev
- Training Mode:* 50% Fwd, 100% Brake, 50% Rev
*Patented
BL-2s BRUSHLESS MOTOR SPECIFICATIONS
- Type: Sensorless brushless
- kV: 3300
- Wire Size: 16 gauge
- Cooling: Integrated cooling fan
- Motor Length: 57mm
- Can Diameter: 37mm
- Weight: 201gr
Replacement part for these models:
- Rustler® 4X4 Brushless BL-2s
- Slash® 4X4 Brushless BL-2s
- Stampede® 4X4 Brushless BL-2s
- Slash® 2WD Brushless BL-2s
