"BULK" Traxxas 3355R VXL-3s Waterproof Brushless ESC

Art.nr: BULK TRX 3355R
1.195,- 1.395,- -14%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

"Bulk" Traxxas
** Ikke på lager

*** This is a Brand new item taken from a kit (chopped part), therefore will not have a Traxxas packaging ***

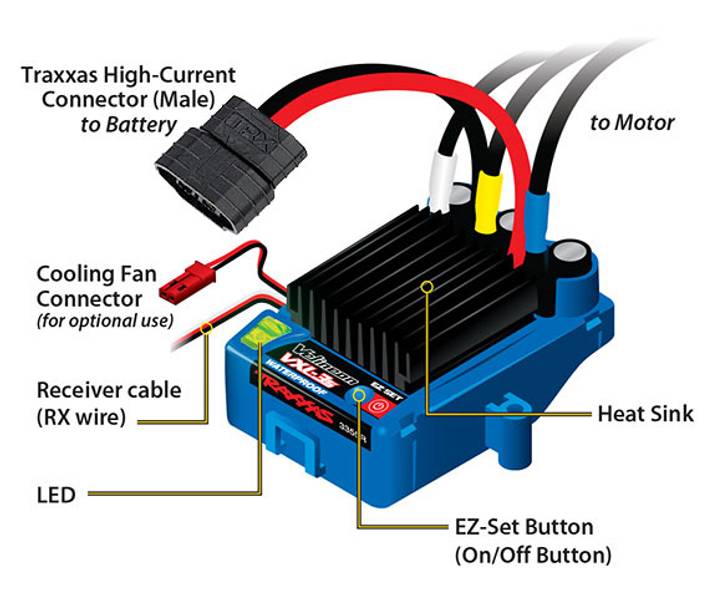

The Velineon® VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles. It sets up, operates, and programs just like the Traxxas XL-5™ family of ESCs so there's no tricky new procedures to learn. Traxxas' exclusive patented Training Mode™ is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3s is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3S packs! The VXL-3s is manufactured by Traxxas to ensure the highest level of quality and support.

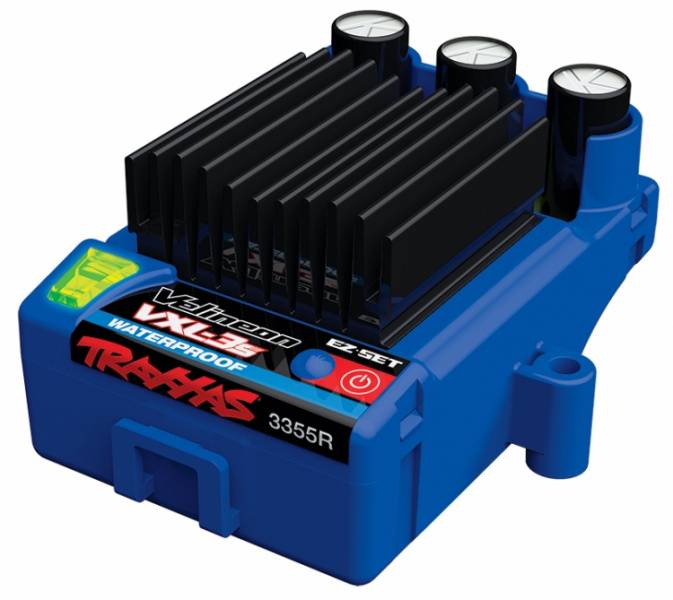

Traxxas Velineon® VXL-3s ESC

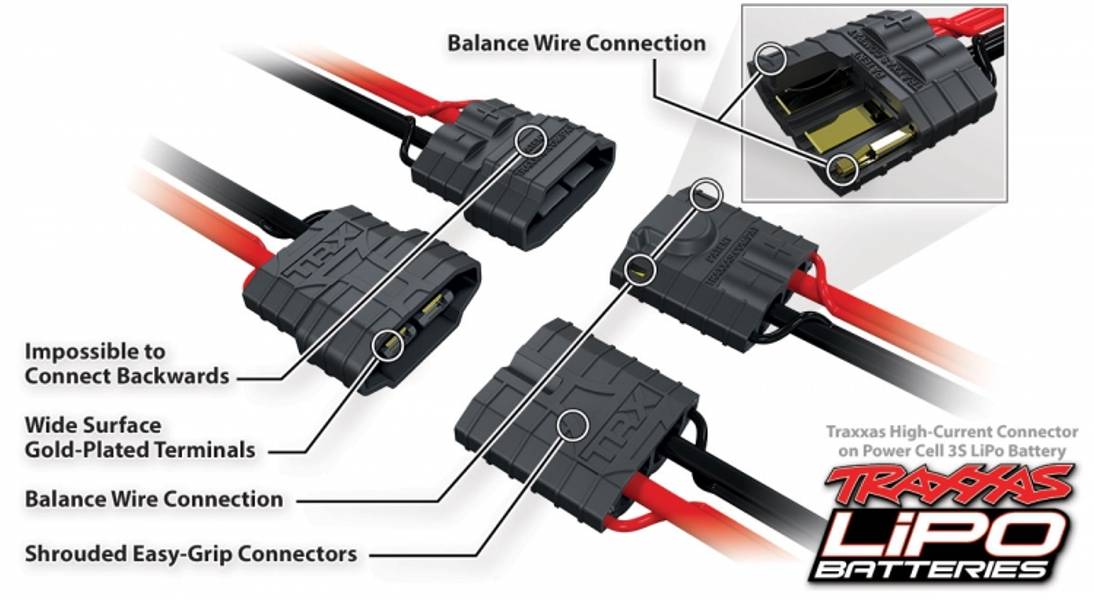

Traxxas High-Current Connector
The VXL-3s ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Velineon VXL-3s Waterproof Features:

  • Patented Traxxas High-Current Connector eliminates a common bottleneck and maintains pure, unrestricted power flow from the battery to the brushless power system.
  • Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
  • Widest range of battery options ranging from 4-cell NiMH or NiCad packs all the way up to 3S LiPo battery packs (11.1 volt)
  • The patented Training Mode™ is an exclusive Traxxas feature that reduces the overall power output of the VXL-3s by 50%, making it easier for new or younger drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action.
  • The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.

The VXL-3s is programmable with three drive profiles:

  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode**™ – 50% Fwd / Brake / 50% Rev
  • Multi-color LED provides clear feedback
  • Two-stage thermal shutdown protection protects the VXL-3s from overheating.
  • Locked Rotor Protection™ prevents system damage by cutting power if the vehicle is stuck or the motor is bound.
  • Battery Over-Voltage Protection™ causes the ESC to go into failsafe mode if the maximum input voltage is exceeded.
  • Water resistent case design uses rubber seals and o-rings to protect against damage caused by water and moisture.
  • Micro-fin aluminum heatsink dissipates heat.
  • The built-in auxiliary fan output powers a snap-on accessory fan for increased cooling capacity during extreme use. A handy clasp on the speed control case keeps the wire neatly in place until you are ready to use it.
  • MOSFET design provides high-current output (320 amp peak) with incredibly low resistance (.00075 Ohm).
  • Gold plated 3.5 mm bullet connectors on 12-gauge Maxx® Cable flow full power to the motor without performance strangling resistance.









VXL-3s WATERPROOF ESC SPECIFICATIONS

  • Input Voltage: NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
  • LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
  • Case Size: W39 x D55 x H33 mm
  • Weight: 90 gr
  • Motor Limit (Brushless): No motor limit
  • On Resistance Forward: 0.00075 Ohms
  • On Resistance Reverse: 0.00075 Ohms
  • Peak Current - Forward: 320A
  • Peak Current - Reverse: 320A
  • Braking Current: 320A
  • Continuous Current: 200A
  • BEC Voltage: 6.0 V
  • BEC Current: 2.5A (with 6-cell NiMH)
  • Power Wire: 12-Gauge Maxx® Cable
  • Input Harness Wire: 26 Gauge / 100 mm
  • Transistor Type: MOSFET
  • Low Voltage Detection: 2-Stage indicators, switchable (on or off)
  • Thermal Protection: 2-Stage thermal shutdown
  • Single-Button Setup: Yes, Traxxas EZ-Set®
  • Battery Input Connector: Traxxas High-Current Connector
  • Motor Types: Brushless
  • Ports: RX Input, auxiliary fan

Profile selection:

  • Sport Mode: 100% FWD, 100% BRAKES, 100% REV
  • Race Mode: 100% FWD, 100% BRAKES, NO REV
  • Training Mode:** 50% FWD, 100% BRAKES, 50% REV
*Properly geared **Patented

"Bulk" Traxxas

*** This is a Brand new item taken from a kit (chopped part), therefore will not have a Traxxas packaging ***
