Tamiya 58726 XV-02RS PRO CHASSIS – NO ESC

Art.nr: Tamiya 58726
4.695,- 5.195,- -10%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Tamiya
På lager: 1

1/10 R/C XV-02RS Pro byggesett. Et high-performance On-Road chassis fra Tamiya.

XV-02RS er On-Road utgaven av XV-02. Har blant annet 3.5mm dempertårn i karbonfiber, oljedempere i aluminium med aksellengde beregnet for On-Road kjøring, samt chassisplate i karbonfiber.

Må kompletteres med:

  • Radio og mottaker
  • Servo (low profile)
  • Fartskontroller
  • Motor (540 størrelse)
  • NiMH eller LiPO batteri
  • Batterilader
  • Karosseri (257mm wheelbase)
  • PS lakk



Fra produsenten:

Length: 368mm. Image shows assembled kit.
*Body, motor, R/C equipment, battery pack and charger are sold separately.

On-Road Oriented Rally Chassis!
This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.



Featured Components
Drivetrain: Full ball bearings, front and rear aluminum propeller shafts, front and rear oil-filled gear differentials (2x 39T and 1x 40T gears included), front and rear universal drive shafts
Suspension: Front and rear aluminum oil dampers (blue caps, touring car size), 6-degree caster blocks, turnbuckle upper arms, 3.5mm thickness carbon damper stays
Chassis: Carbon fiber-reinforced lower deck, aluminum servo mount, angled front bumper, hi-torque servo saver




★The chassis employs an aluminum servo mount and hi-torque servo saver. Turnbuckle rods allow swift steering adjustment.

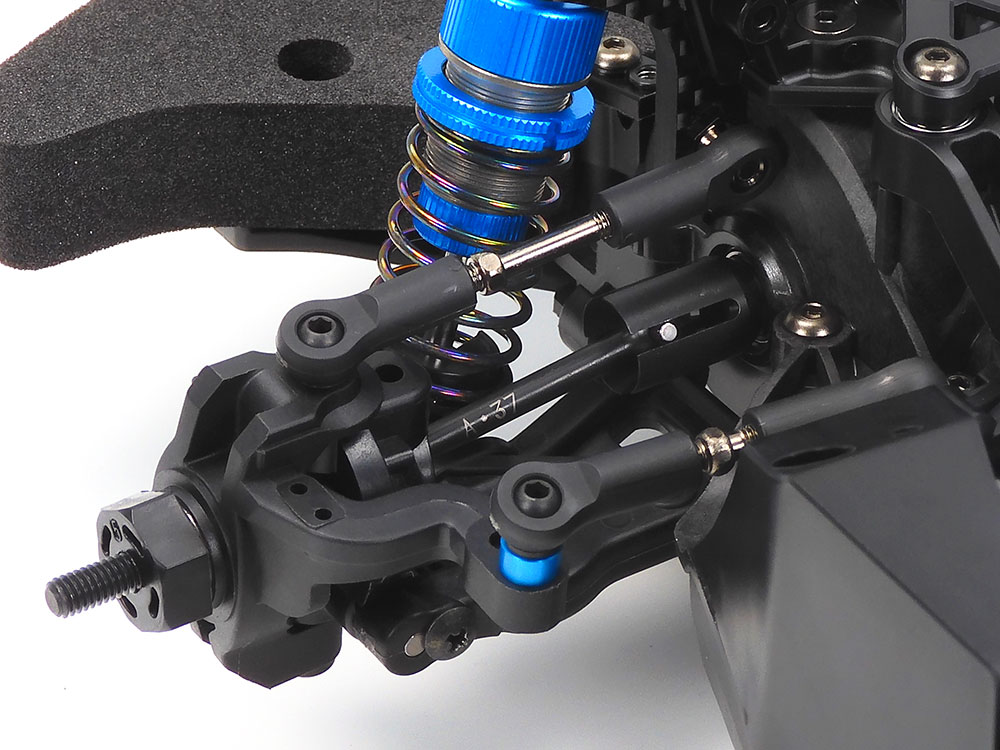

★The double wishbone front suspension features 6-degree caster blocks.

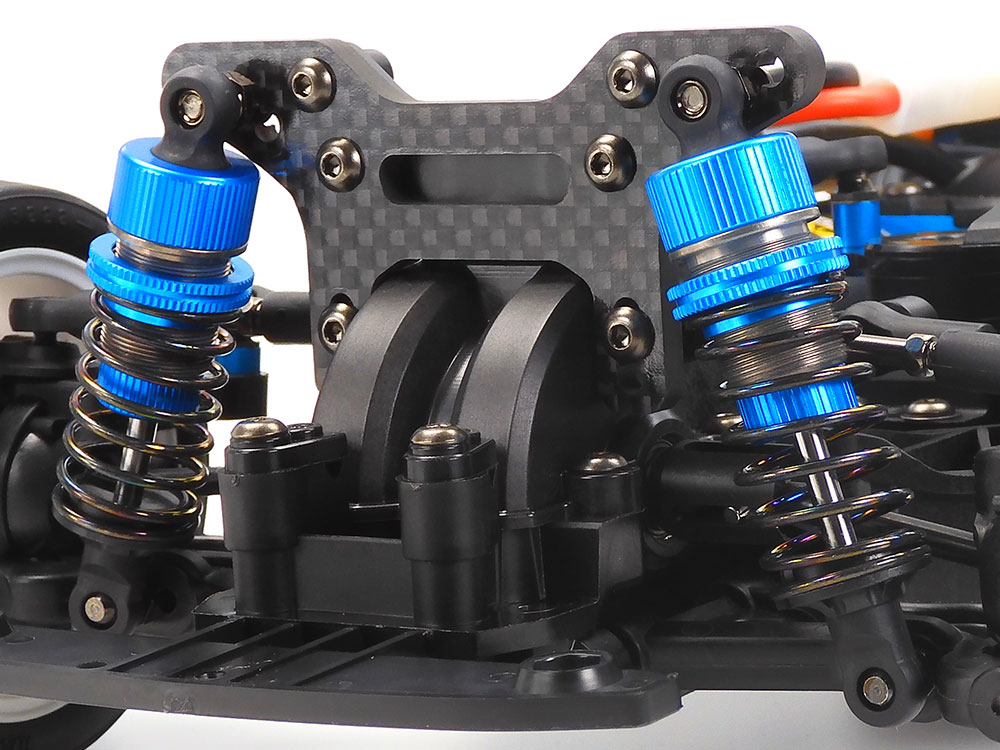

★High performance aluminum cylinder dampers are touring car size, with 30.5mm piston rods. The damper stay is 3.5mm thickness carbon fiber.

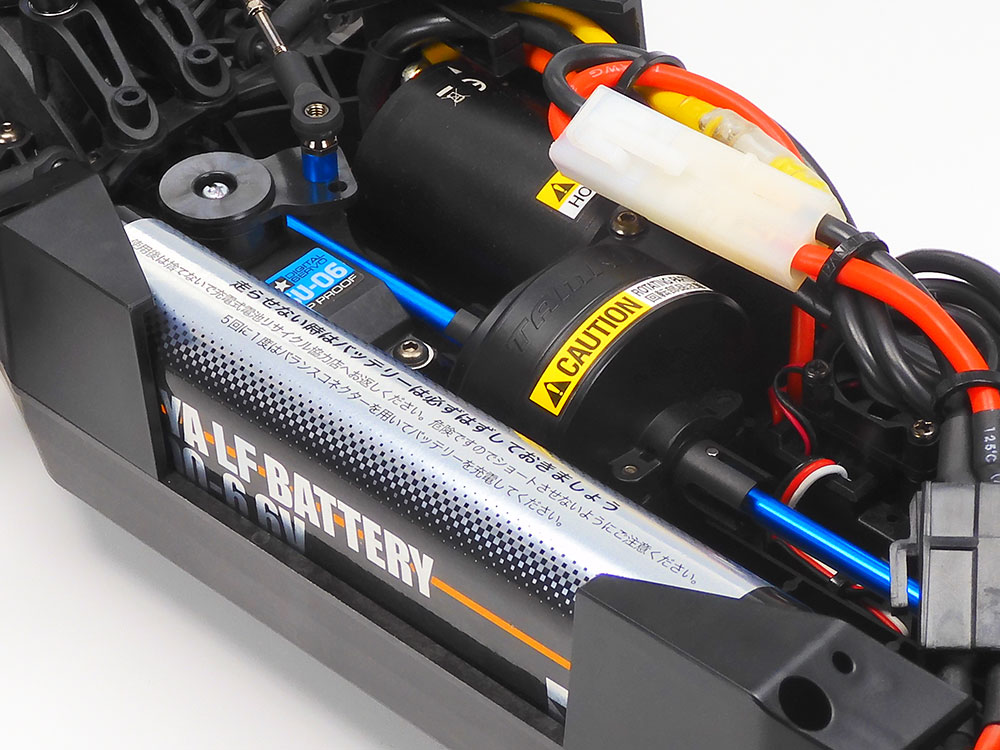

★Identical length propeller shafts transmit power from the central spur gear to the front and rear.

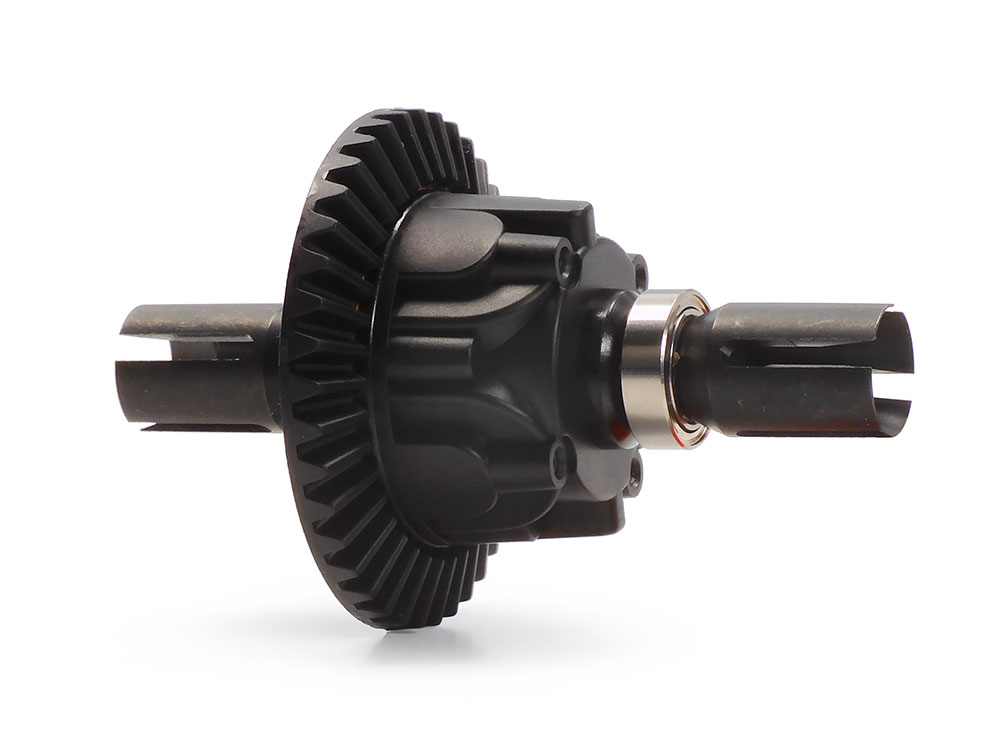

★Sealed front and rear gearboxes house oil filled gear differentials.
★Upper arm attachment in the double wishbone rear suspension can be altered by the use of spacers from separately sold Item 53539.

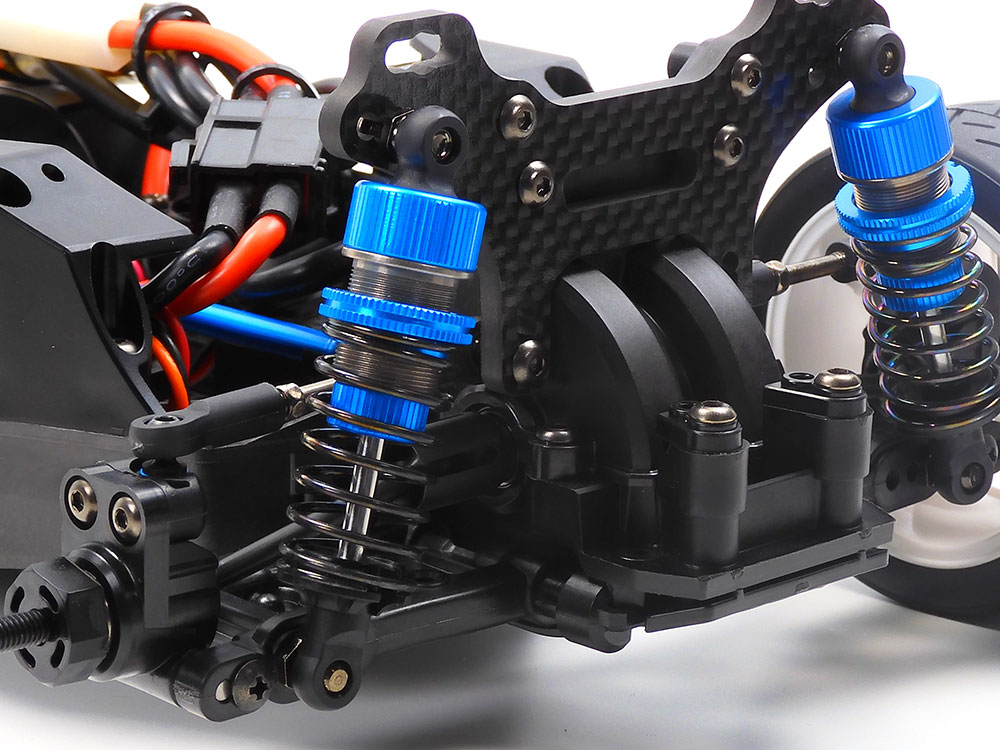

★Rear aluminum cylinder oil dampers are also touring car size.

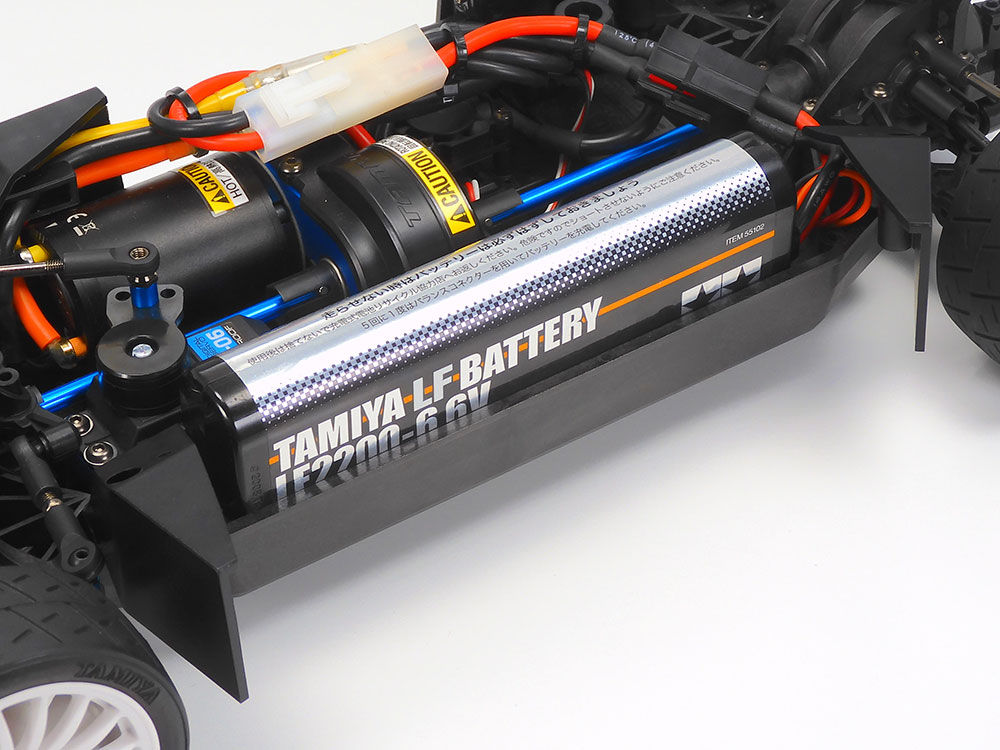

★The battery pack sits on its side, allowing a narrower chassis. Access it by opening the levers front and rear, as shown here.

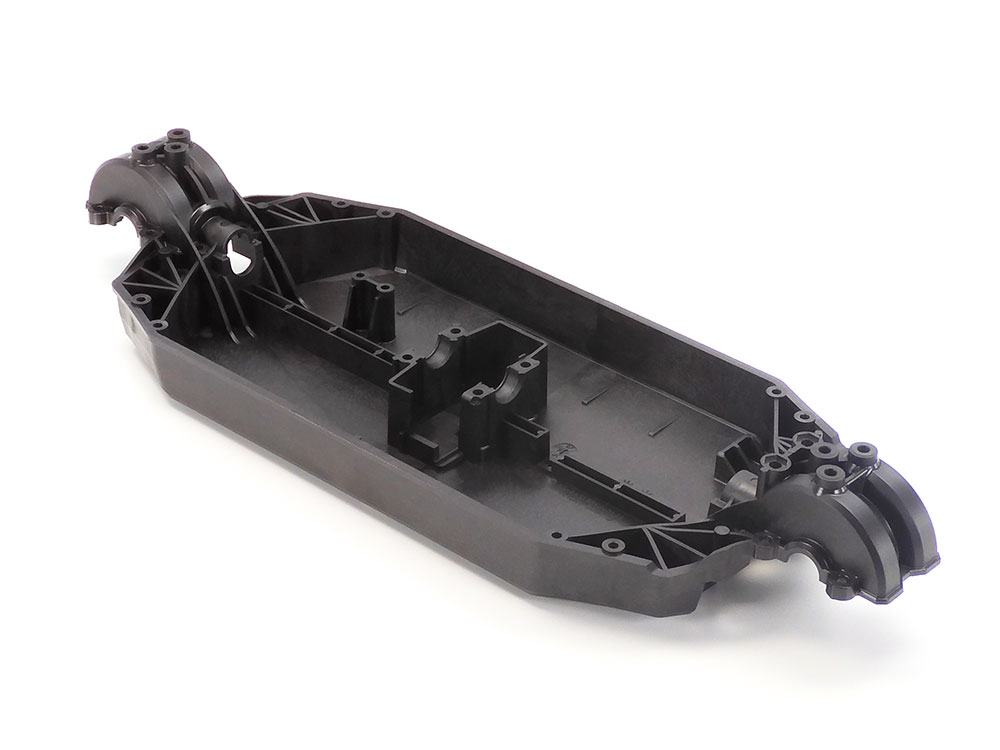

★Take a closer look at the carbon fiber-reinforced plastic lower deck.






★The chassis’ flat underside and angled bumper help it negotiate bumpy surfaces.

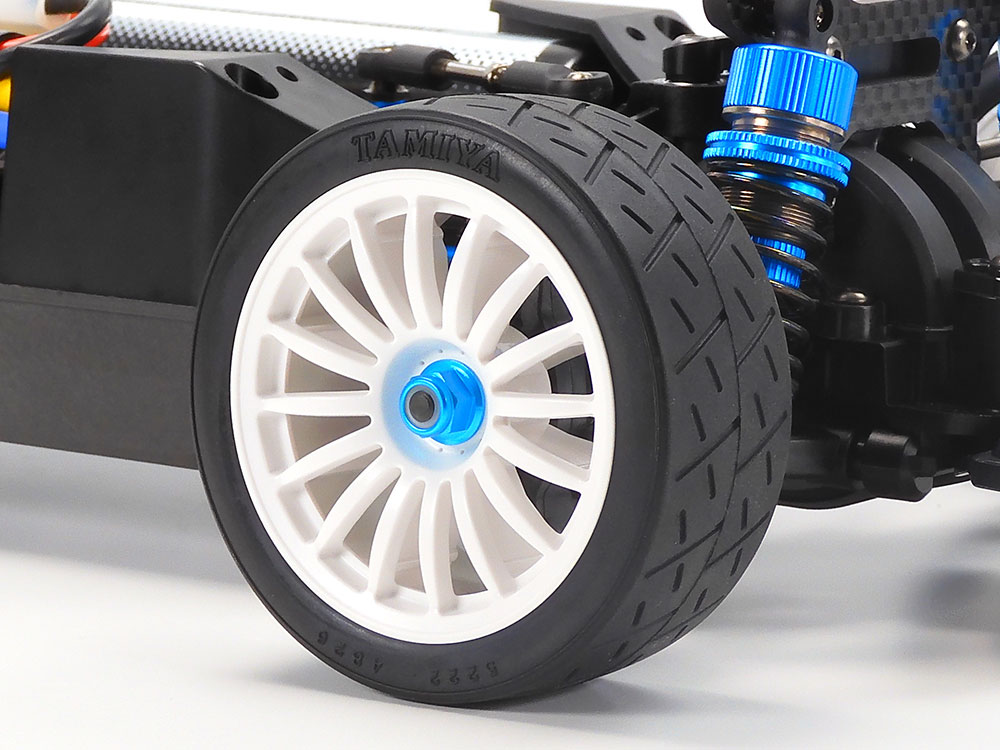

★White fin spoke wheels are paired with racing semi-slick tires.

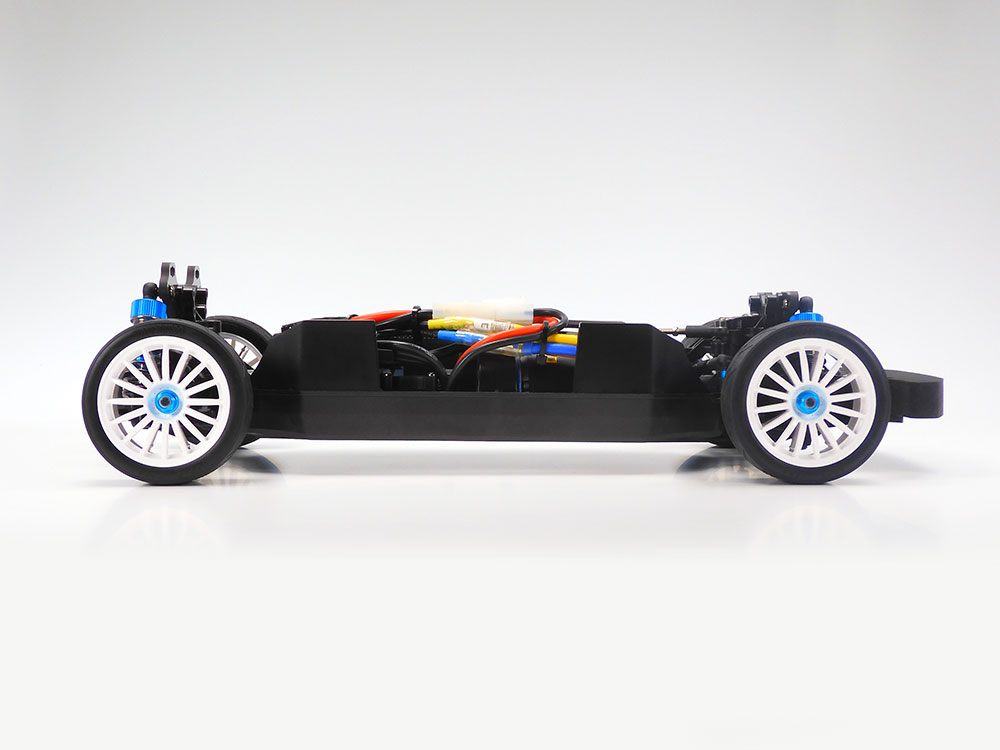

★This chassis has a seriously low center of gravity!



Specifications
★Length: 368mm, width: 180mm ★Wheelbase: 257mm ★Carbon fiber-reinforced plastic bathtub frame ★Front midship motor, shaft-driven 4WD ★Front & rear oil-filled gear differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Aluminum cylinder oil dampers (blue caps, touring car size) ★Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions) ★Electronic speed controller (ESC) is sold separately.



Separately Required Items
★Body ★Type 540 motor ★2-channel R/C system w/ESC & low-profile servo ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
