Tamiya 58675 1/10 Mercedes-Benz G 500 CC-02

Art.nr: 58675

3.295,- ~~3.695,-~~ -11%

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

Tamiya

** Ikke på lager

Fun Trail Exploration!

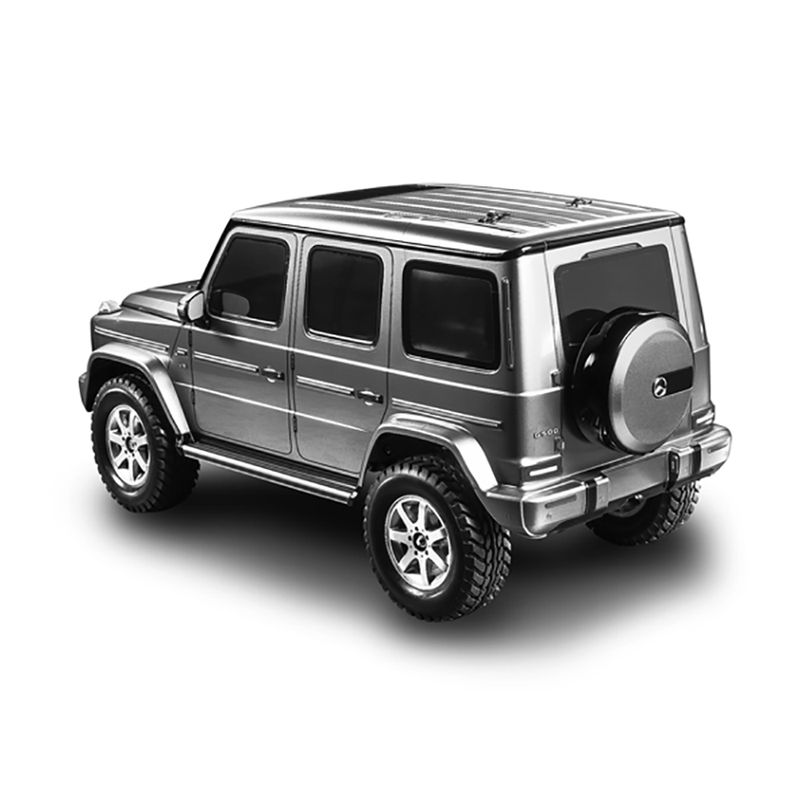

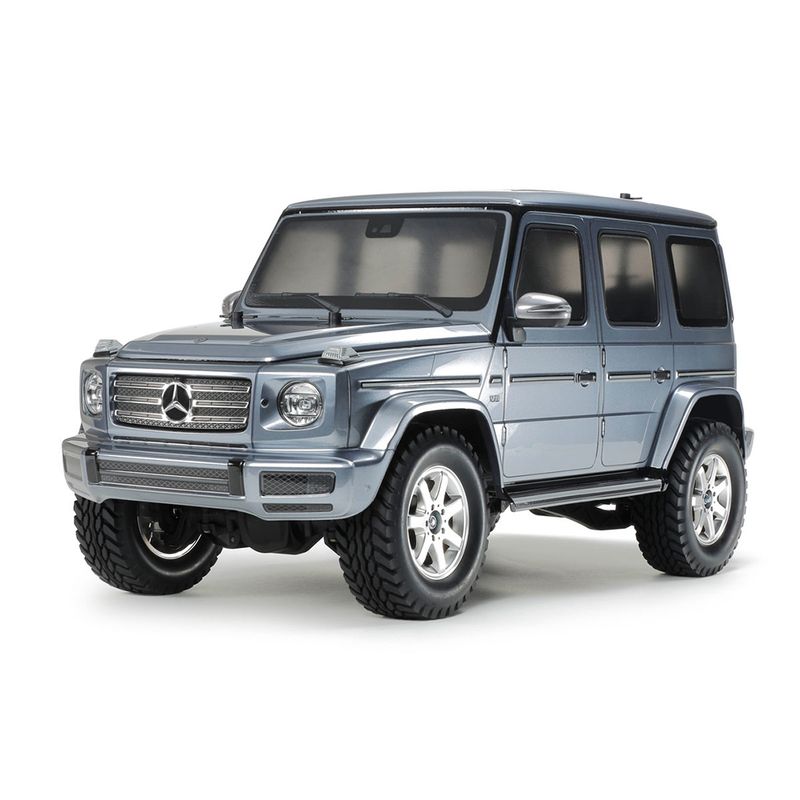

Get ready to do some fun trail exploration with the all-new Tamiya CC-02 (Cross Country 2) chassis platform! Tamiya’s designers have been hard at work to bring R/C enthusiasts the next generation of Tamiya trail driving with a completely revamped machine.The first body to grace the capable new chassis is a highly-detailed polycarbonate recreation of the Mercedes-Benz G 500, which first graced the Mercedes stable of SUV’s in 2018.

1/10 scale R/C model assembly kit.
Length: 455mm, width: 196mm, height: 207mm. Wheelbase: 267mm.
TLU-01 LED Light Unit and LEDs included.
G 500 body is recreated accurately in polycarbonate. Separately molded parts are included for the front grille, side mirrors and spare tire cover.

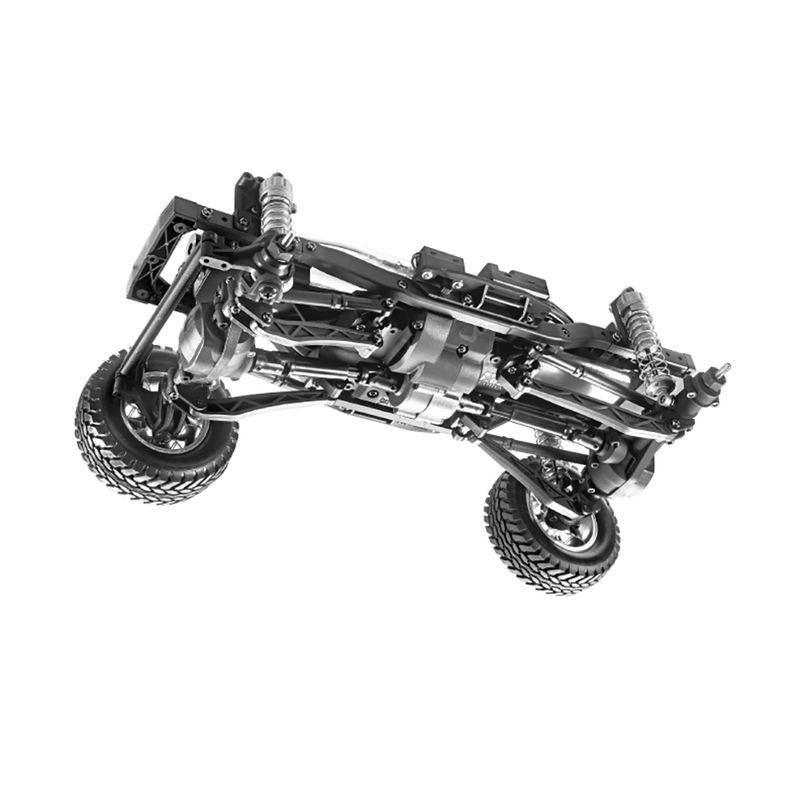

Designed for a wide range of off-road terrain including rocky surfaces, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability.

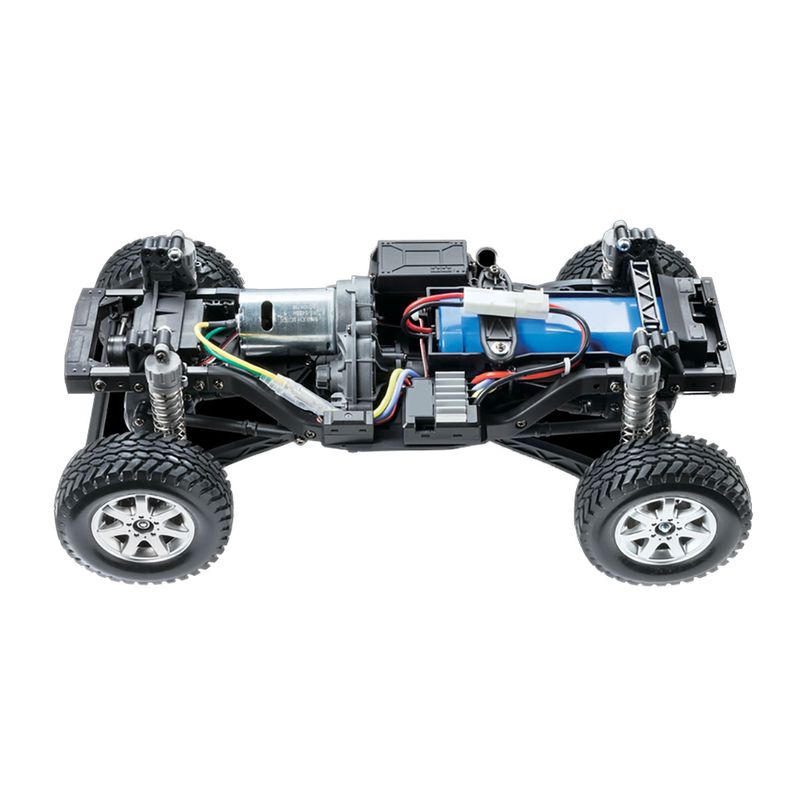

A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears to the front and rear.
Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some serious fine-tuning!
4-link rigid suspension front and rear, with CVA oil dampers.
Differential Gears: 3-bevel differential gears provide a smooth driving. They can also be locked (with reassembly) for driving on poor surfaces.
Axle Housings: Housings enclose a central differential gear and axle shafts in a rigid setup that lets the chassis take on rough terrain with ease: if one wheel rises, the other is pushed downward to help the chassis gain traction.
Gearbox: Power from the motor is routed via the realistic looking gearbox and transfer case, from its propeller shafts to the differential gears, and finally to the wheels.
4-Link Suspension: A rigid setup employs 4 plastic link arms on each axle housing and four oil dampers. This ergonomic design offers superior durability and the ground clearance.
Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit.
Required Items: 2-Channel radio, steering servo, 7.2-7.4volt battery pack with compatible charger, and Tamiya PS paint.

FEATURES

Chassis: CC-02, ladder type FRP (fiberglass reinforced plastic)
Drive: Four wheel
Differentials: Bevel gear, lockable for driving on rough surfaces
Motor: Mabuchi brushed, mounted longitudinally behind front axle
Electronic Speed Control: TBLE-020S with Kyosho type battery
connector
Shocks: CVA oil-filled
Suspension: 4-link rigid plastic arms front and rear
Body: Clear polycarbonate Mercedes Benz G 500

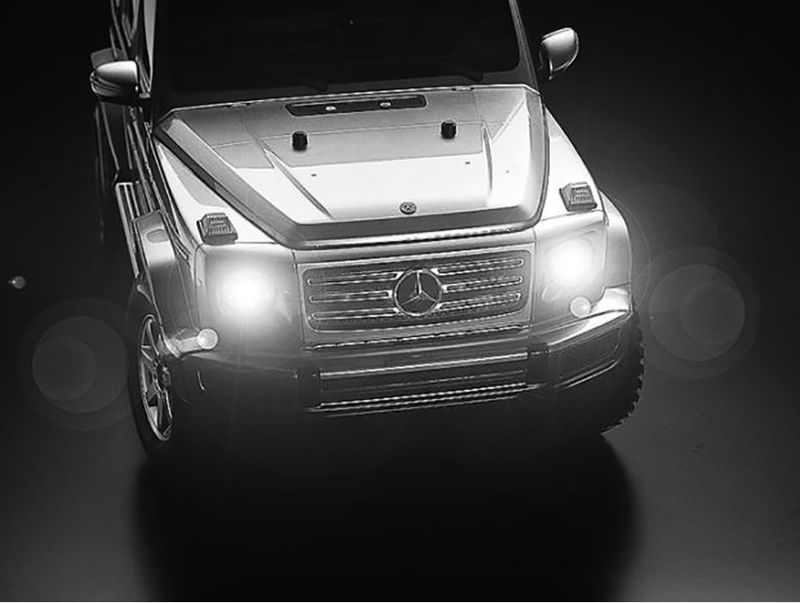

Lights: Tamiya TLU-01 LED light unit included
Wheels: Seven spoke
Bushings: Plastic

INCLUDES

110 scale Electric Powered, Radio Controlled Mercedes Benz G500
CC-02 Off-Road Kit

REQUIREMENTS

Radio: 2-channel with high-torque steering servo
Battery: 7.2 - 7.4V with Tamiya type connector
Battery Charger: Compatible with selected battery
Paint
Building and track equipment

SPECIFICATIONS

Length: 17.9 (455mm)
Width: 7.7 (196mm)
Height: 8.1 (207mm)
Wheelbase: 10.5 (267mm)
Spur Gear: 83T
Pinion Gear: 16T
Gear Pitch: 06MOD

COMMENTS

To paint body to match the vehicle in the video, the following
Tamiya paints are required
PS-5 Black
PS-31 Smoke
PS-63 Bight Gunmetal
TS-14 Black
TS-42 Light Gunmetal
TS-83 Metallic Silver
X-18 Semi Gloss Black
