FEATURES
Chassis: TT-01 type E ABS plastic chassis-compatible with a variety
of Tamiya Option Parts, fiberglass reinforced nylon upper deck and
gear covers
Drive: Four wheel shaft drive
Motor: 540 brush equipped motor with pre-attached leads
Ball Bearings: Installed in differentials, bushings in wheel hubs
Suspension: Four wheel double wishbone
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, bushing equipped
Transmission: Single speed
Body: Three piece polycarbonate, two cab components and body joined
with double sided tape, molded plastic side mirrors and two-piece
rear bumper, separate polycarbonate rear fender and coupler parts
Tires: Treaded radial 2.7" (70mm) diameter
Wheels: Molded plastic, black in color
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver, three-piece tie rod
INCLUDES

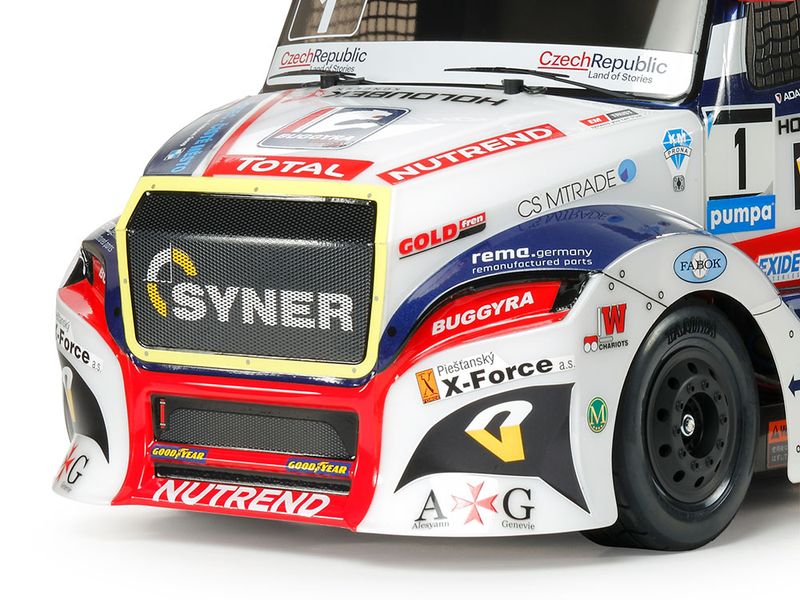

Tamiya Buggyra Fat Fox 1/14 scale On-Road Racing Truck, 540 Motor,
3-pc Clear Body, Tires, Wheels, Pinion and Spur Gears, Window
Mask, Decals, Instruction Manual and Parts for Installation of
Taillight LEDs Included (LED lights NOT included, separate purchase
required)
REQUIREMENTS
Radio: 2-channel with one standard servo
Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment
Also requires ESC.
SPECIFICATIONS
VEHICLE--
Length: 16.5" (420mm)
Width: 7.4" (187mm)
Height: 7.4" (188mm)
