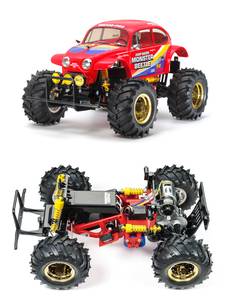

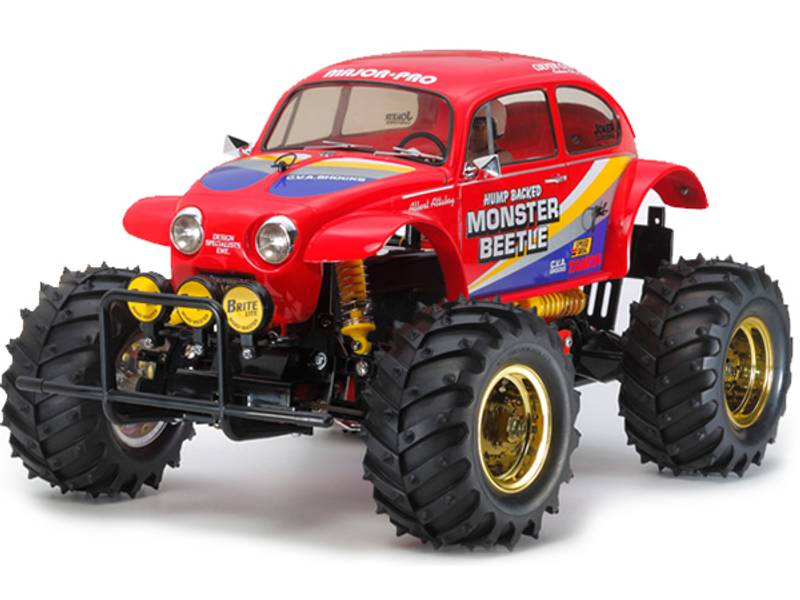

This is the Electric Powered, Radio Controlled
2015 Monster Beetle Kit from Tamiya.
FEATURES
Chassis: Plastic
Drive: Rear wheel, dog bone type driveline
Motor: 540 size brushed
ESC: Not Included
Body: Molded polystyrene with detailed driver figure, smoked
windshield and side windows
Suspension: Front, double wishbone, rear trailing arm
Shocks: ABS plastic, oil-filled
Steering Mechanism: Direct servo
Tires: Lug and pin spike treaded rubber, 5.1" (130mm) diameter
Wheels: One-piece plastic with gold finish
Bumper: Plastic, front and rear
Differential: Gear type
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
INCLUDES
2015 Monster Beetle Kit with Shocks, Motor, Body, Tires, Wheels
10 tooth Pinion Gear and Instruction Manual
REQUIREMENTS
Radio: 2-channel w/high torque steering servo
Battery: 6-cell stick w/Standard connector
Battery Charger: To match selected battery
Track and maintenance equipment
ESC is also required.
SPECIFICATIONS
Vehicle-
Length: 16.1" (410mm)
Width: 11.4" (290mm)
Height: 9.4" (240mm)
Body-
Length: 13.5" (342mm)
Width: 7.5" (190mm) at fenders
Height: 4.6" (118mm)
