This is the Radio Controlled, Electric Powered 1/10 scale
Tamiya TB-04 On-Road Racing Chassis Kit with the Eneos Sustina RC F Body.
FEATURES
Chassis: FRP (fiber reinforced plastic)

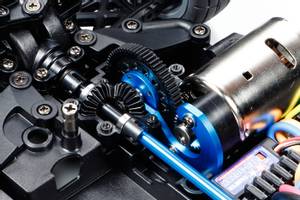

Drive: Four wheel shaft drive with aluminum driveshaft
Transmission: Newly designed case provides increased stability
during acceleration
Differentials: Gear type, 40T ring gears and 16T bevel gears
Suspension: Fully independent double wishbone, inboard front
suspension (IFS)
Shocks: CVA oil-filled, short touring car type
Steering: Bell crank with servo saver, long steering tie-rod system
refined from the TRF417 chassis
Motor Mount: Horizontal left rear position
Ball Bearings: Shielded
Bumper: Front urethane foam
Spur Gear: 66 tooth plastic
Pinion Gear: 25T metal
Tires: Slick rubber 0.94" (24mm) wide, 2.4" (62mm) outer diameter,
foam inserts
Wheels: 12 spoke gray in color +2° offset, 0.90" (23mm)
wide, 1.9" (48mm) diameter
Body: Clear polycarbonate Lexus Eneos Sustina RC F.
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable front and rear, caster/toe-in refers
to the angle of the front suspension when viewed from the side of
the car in relation to the chassis
INCLUDES
TB-04 On-Road Chassis Kit with Wheels, Shocks, Shock Oil, Tires
Foam Inserts, Pinion Gear, Spur Gear, Clear Body, Decals and
Instructions
REQUIREMENTS
Radio: 2-channel with high speed steering servo
AA Batteries for transmitter
ESC: To match selected motor
Motor: 540 size, stock to mildly tuned
Battery: 6-cell 7.2V stick pack
Charger: To match selected battery
Building and track equipment
SPECIFICATIONS
Chassis-
Length: 14.06" (370mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)
Body-
Length: 16.8" (427mm)
Width: 7.5" (190mm)
Height: 4" (102mm)
