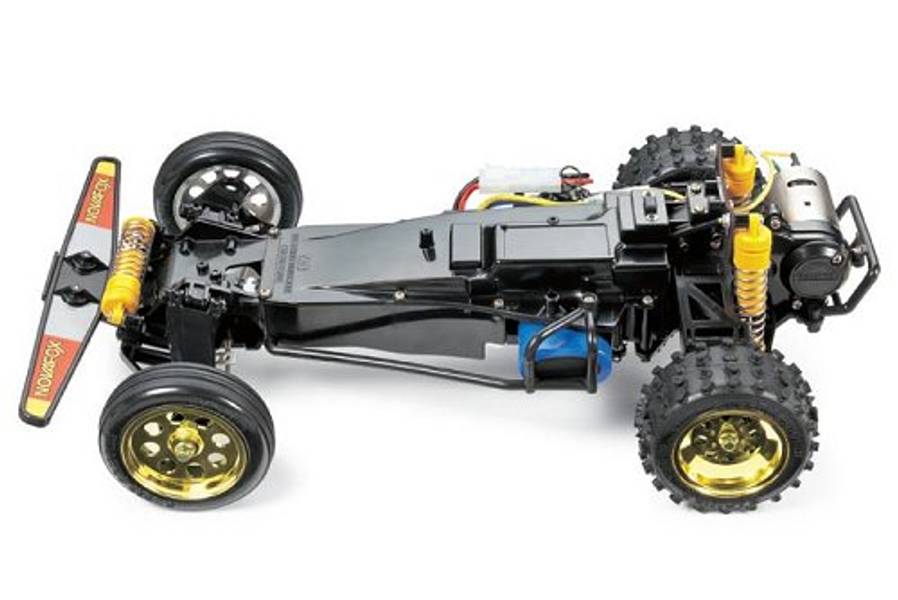

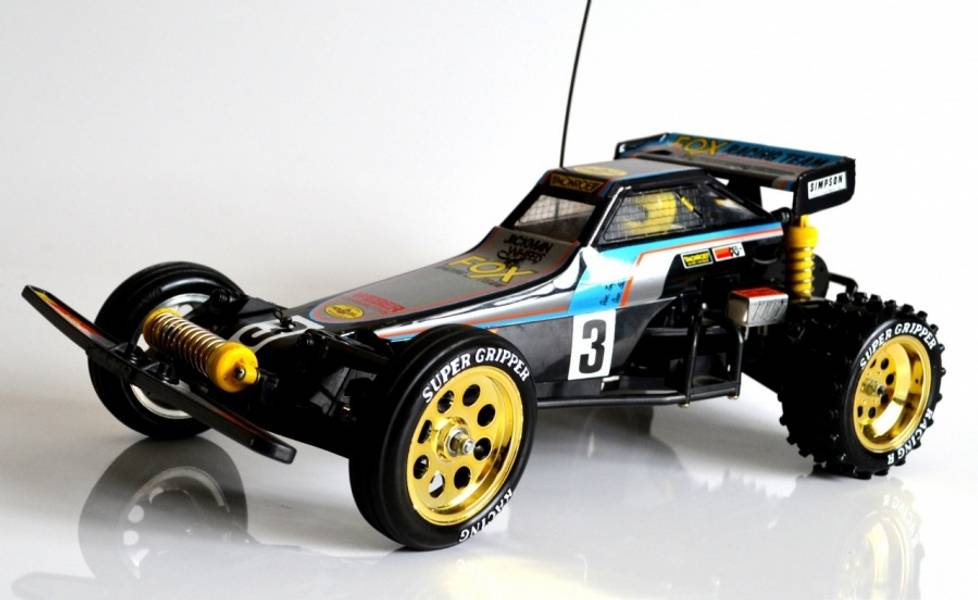

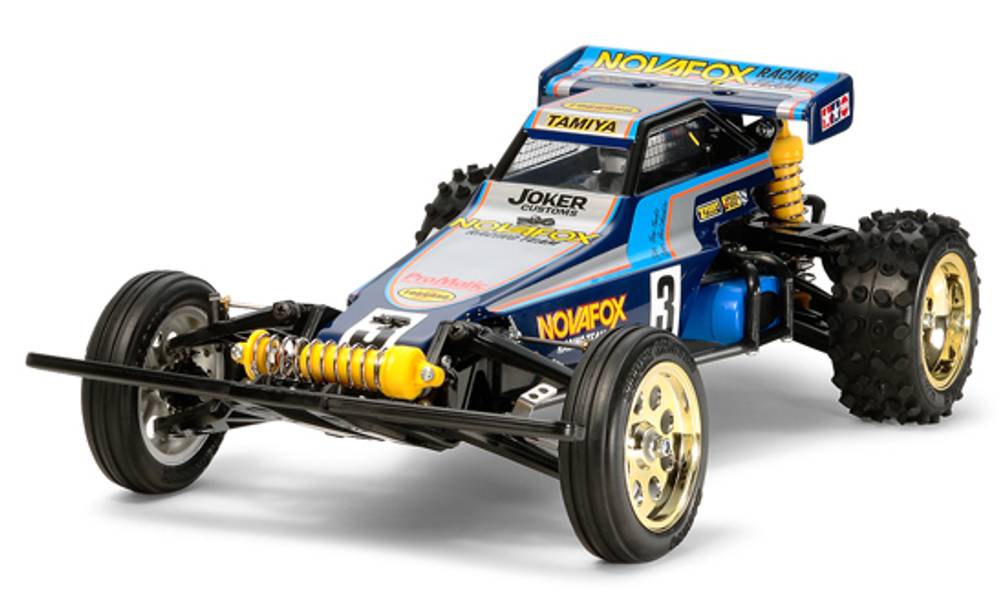

This is the Electric Powered, Radio Controlled, 1/10 scale
Novafox Buggy Kit from Tamiya.
**Improved Re-release Version of 2wd Racing Buggy from 1985.**
FEATURES
Chassis: ABS resin, monocoque design
Drive: Rear wheel with dogbone type driveshaft
Motor: 540 size brushed
Pinion Gear: 15T metal
Electronic Speed Control: Not Included
Body: Clear molded polycarbonate with white plastic helmeted driver
figure

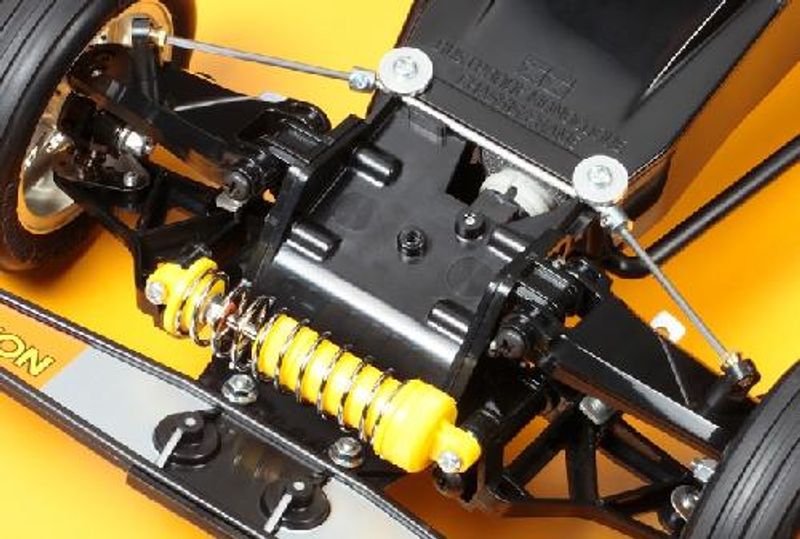

Suspension: Four wheel independent with front stabilizer bar
Shocks: Oil-filled, plastic body, front mono shock, two rear CVA
shocks
Gearbox: Sealed
Differential: Bevel gear
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage
Tires: Front grooved, 0.82" (21mm) wide, 3.3" (84mm) diameter
Rear pin spike, 1.45" (37mm) wide, 3.4" (87mm) diameter
Wheels: Gold colored metal plated plastic, Front 0.79" (20mm) wide
2.2" (56mm), Rear 1.2" (32mm) wide, 2.0" (50mm) diameter
INCLUDES
Novafox Buggy Kit, with Clear Body, Driver Figure, Brushed Motor, Wheels, Tires, Decals, and Instruction Manual
REQUIREMENTS
Radio: 2-channel with high torque steering servo
Battery: 7.2V 6-cell stick with Standard connector
Polycarbonate safe spray or brush on paint
Building and track equipment
ESC
SPECIFICATIONS
Vehicle,
Length: 16.7" (425mm)
Width: 8.8" (225mm)
Height: 5.2" (133mm)
Body,
Length: 12.25" (311mm)
Width: 5.3" (136mm)
Height: 3.2" (81mm)
