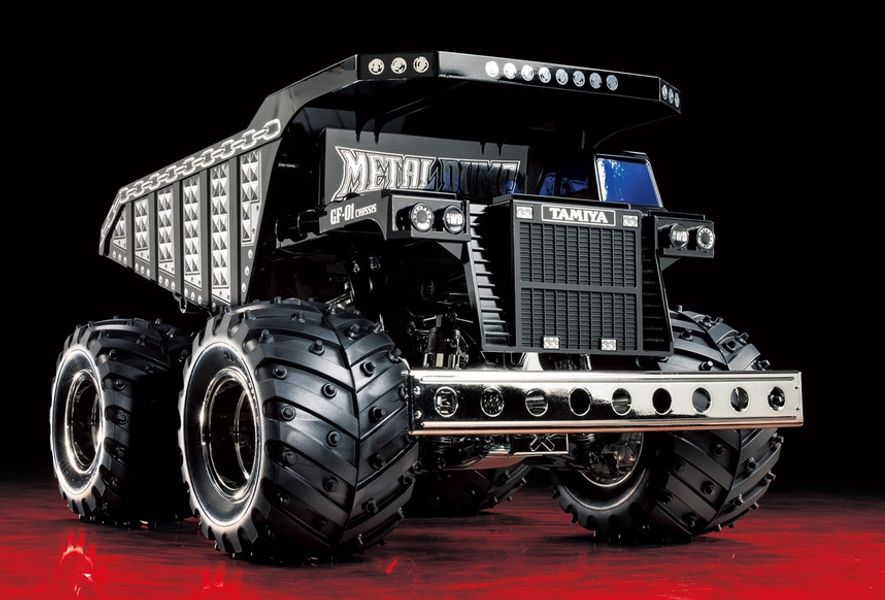

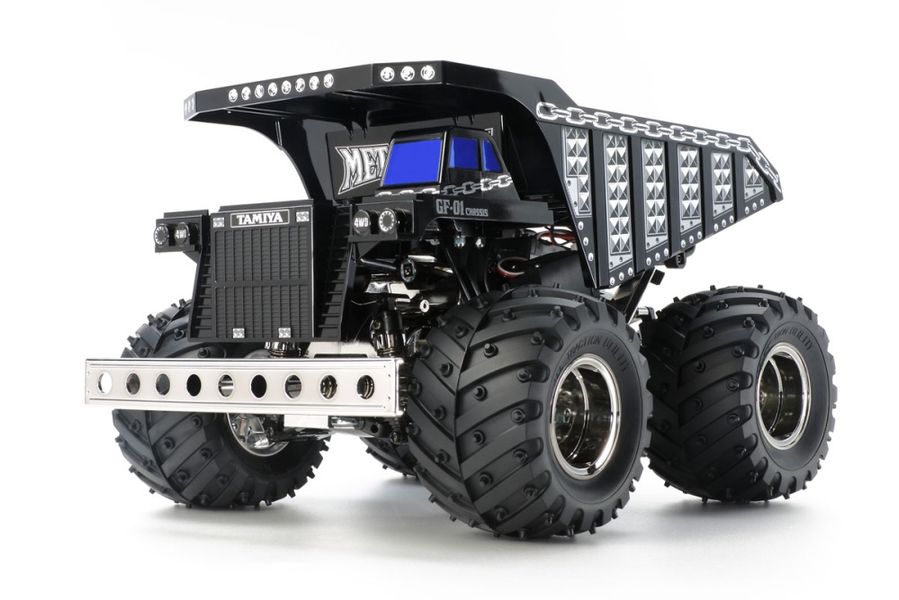

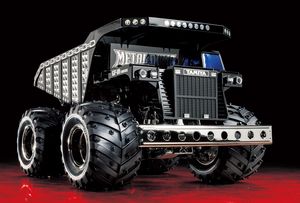

This is the Electric Powered, Radio Controlled 1/24 scale Limited Edition Heavy Dump Truck Kit from Tamiya.
**Body parts are molded in black, with metal-plated chassis**
**parts and new sticker designs.**
FEATURES
Chassis: GF-01 lightweight monocoque resin with wheelie bar to prevent flipping over backward during wheelies
Drive: 4 wheel, dogbone driveline

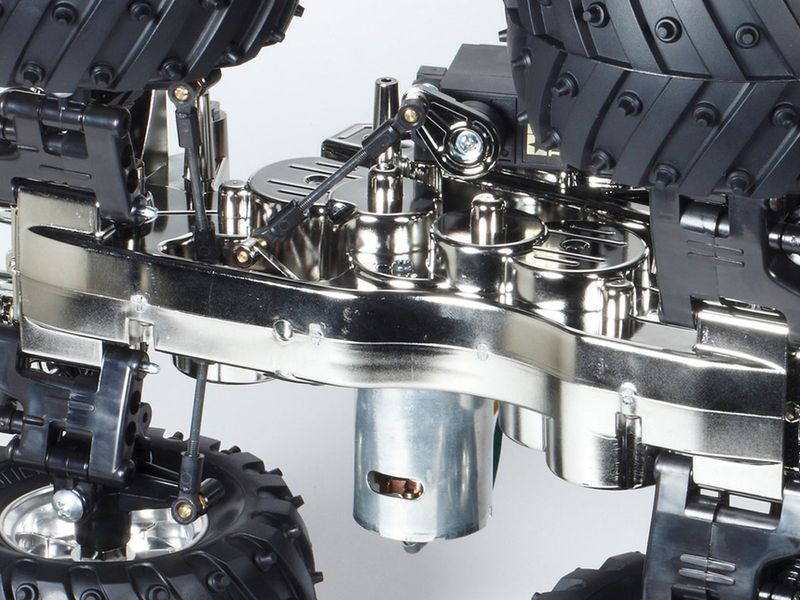

Motor: Tamiya Sport Tuned RS-540 brushed, center mounted
Electronic Speed Control: TBLE-02
Differentials: Bevel gear type
Gearboxes: Sealed
Cab and Rear Bed: ABS plastic, black in color, bed may be displayed in flat or raised position by changing the position of the two stays and snap pins in the body mounts. It is not advisable to put objects in the rear bed, or drive the model with the bed elevated
**bed is not remote controlled**

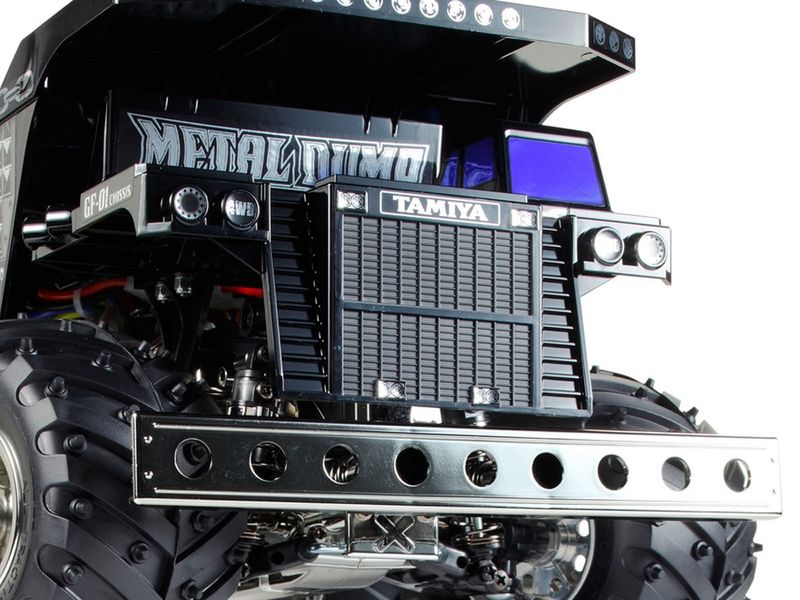

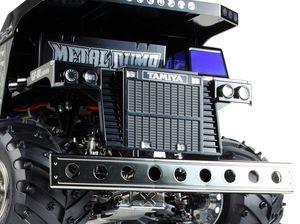

Front Bumper: Spring loaded

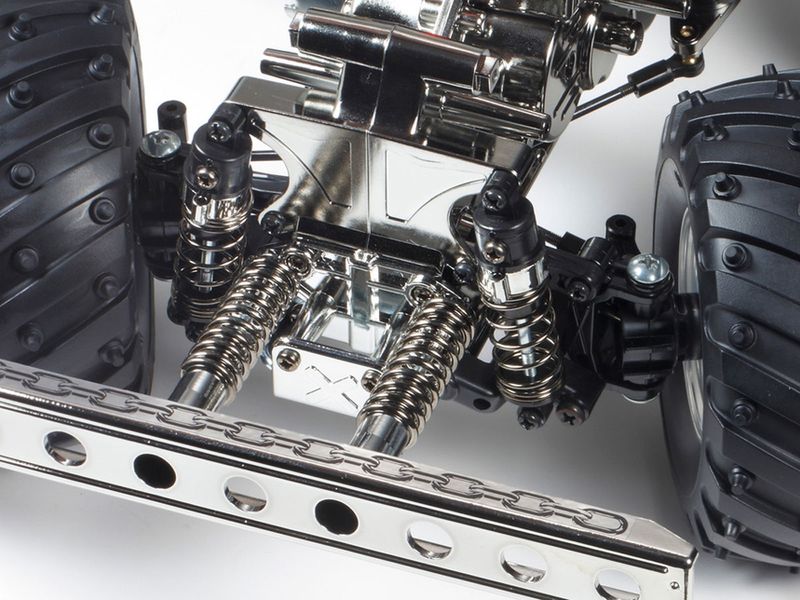

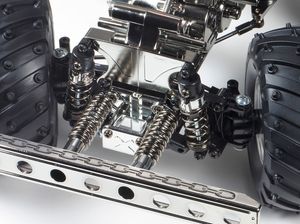

Shocks: Plastic body friction, not oil-filled
Suspension: Four wheel independent double wishbone
Tires: Rubber, lug and pin spike 2.5" (65mm) wide, 4.5" (115mm)diameter
Wheels: Metal plated plastic 1.9" (49mm) diameter, 2.3" (58.5mm)wide, 12mm hex
Steering: Bell crank type
Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
INCLUDES
Heavy Dump Truck Kit with Brushed Motor, ESC, Shocks, Decal Sheet, Tires, Wheels, 18T Pinion Gear and Instruction Manual
REQUIREMENTS
Radio: 2-channel with high-torque steering servo
Battery: 7.2V NiMH battery with Standard connector
Charger: To match selected battery
AA Cells: For transmitter
Building and Track Equipment
SPECIFICATIONS
Length: 13.8" (350mm)
Width: 10.6" (270mm)
Height: 8.3" (210mm)
Wheelbase: 6.8" (174mm)
Tread: 7.6" (194mm) distance between center of tires measured side-to-side
