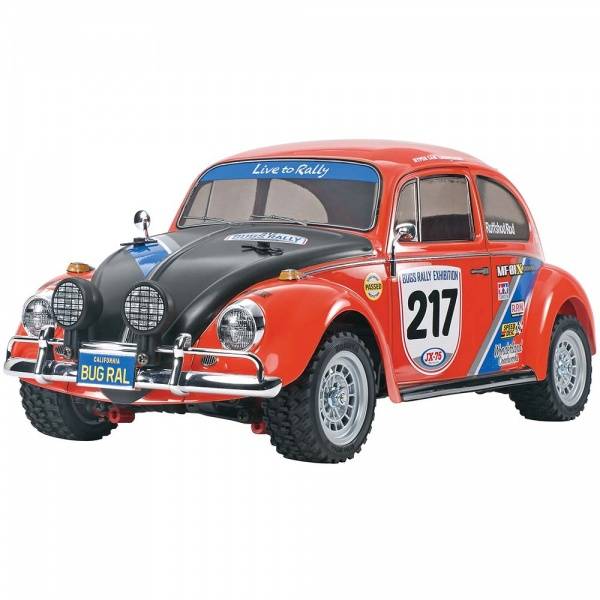

This RC model assembly kit recreates the classic Volkswagen Beetle in rally racing form. Thanks to its superlative reliability and uncomplicated upkeep, it was a fixture on the global rally circuit from the 1950s through to the 1980s, and this model is inspired by such rallying Beetles. The VW body sits atop Tamiya's proven shaft-driven 4WD MF-01X chassis, which is at home on a range of surfaces from road to flat dirt.
This is the Tamiya Radio Controlled, Electric Powered,
Volkswagen Rally Off Road Vehicle Kit.
Chassis: MF-01X three-piece resin monocoque, compatible with
existing M-chassis bodies, adjustable wheelbase
Drive: Four wheel, gear driven rear wheels, dogbone with driveshaft
driven front wheels
Motor: Brush equipped Mabuchi RS-540 Torque Tuned
Electronic Speed control: Not incl.
Suspension: Four wheel independent double wishbone
Differentials: Gear type
Tires: Rally block 1.06" (27mm) wide, 2.7" (69mm) diameter
Wheels: 1.02" (26mm) wide, 1.9" (48mm) diameter, gray in color
Body: Trimmed and painted polycarbonate, separately molded side
mirrors
Shocks: Friction, plastic body
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable
Steering: Bellcrank type
Volkswagen Beetle Rally Off Road Vehicle Kit with Body, Tires,
Wheels, 16T Pinion Gear and Manual
Radio: 2-channel with high torque steering servo
Battery: 6-cell NiMH with Standard connector
Battery Charger: To match selected battery
Tools, track equipment
Wheelbase: 9.4" (239mm) adjustable
Body-
Length:
Width:
Height:
