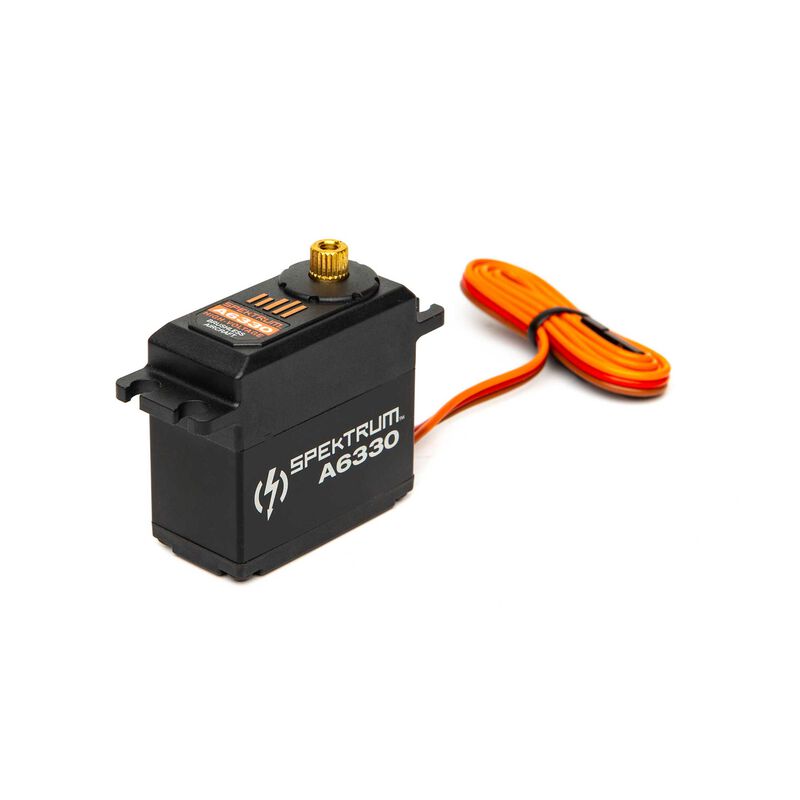

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft.
The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.
Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.
| Application | Airplane |
| Bearing | Dual ball bearings |
| Gear Type | Metal |
| Input Voltage | 6 - 8.4V |
| Maximum Servo Speed | 0.100-0.149 sec |
| Maximum Servo Torque | 200-349 oz-in |
| Motor Type | Brushless |
| Overload Protection | Yes |
| Product Height | 1.56" (40 mm) |
| Product Length | 1.58" (40 mm) |
| Product Weight | 2.25oz (71g) |
| Product Width | 0.79" (20 mm) |
| Programmable | No |
| Rotation Range | 120 degree |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Speed | 0.13 sec/60 deg @ 6V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V |
| Spline Count | 23 - Tooth |
| Torque | 126.6 oz-in (9.11 kg-cm) @ 6V, 178 oz-in (12.82 kg-cm) @ 7.4V, 248 oz-in (17.86 kg-cm) @ 8.4V |
| Wire Gauge | 22 AWG |
