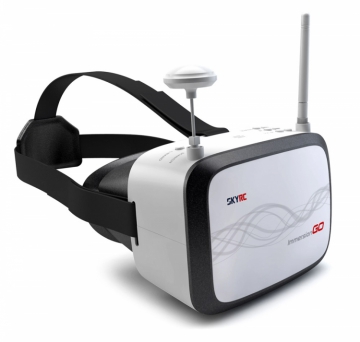

SKYRC HD FPV GOGGLES - Immersion GO
The SKYRC HD FPV goggle with 5.8GHz diversity receivers, can significantly improve reception in the presence of multipathing, by intelligently switching between two independent receivers when signal quality drops.
Another useful application of diversity switching is to select the best signal from two antennas, use a patch, and an omni directional antenna to provide 360 degree coverage or use two patch antennas to cover a wider flight area.
The goggle keeps it super simple for the FPV flier with auto search functionality, easy press buttons, the exact frequency is displayed on the screen so that you never have to guess which frequency and channel you are on, a wide voltage input from 7V to 18V, and 40CH on the 5.8GHz band!
General:
- Control via 8 Buttons
- High Comfortable with Durable Materials
- Adjustable Straps
- Built-in Speaker with Volume Control
- Built-in Ventilation Fan
- OSD Language
- Weight: 380 g (Excluding Antennas)
- Size: 195 x 139 x 180 mm
LCD Display:
- Screen Size: 7"
- Screen Resolution: 1024x600
- Field of View: 65 Degree
- Display Scale: 4:3 or 16:9
- Respond Time: 10mS
- System: PAL/NTSC Auto Selecting
Diversity Receiver:
- Dual Receivers with Dual Antenna Connection
- Automatic Antenna Switching
- >-90dB Typical Sensitivity
- 5.8GHz 5 Band 40-Channel Frequencies
Electrical Properties:
- Supply Voltage: 7-18V Recommended 2-4S LiPo
- Reverse Voltage Protection
- Current Consumption 530mA@12V

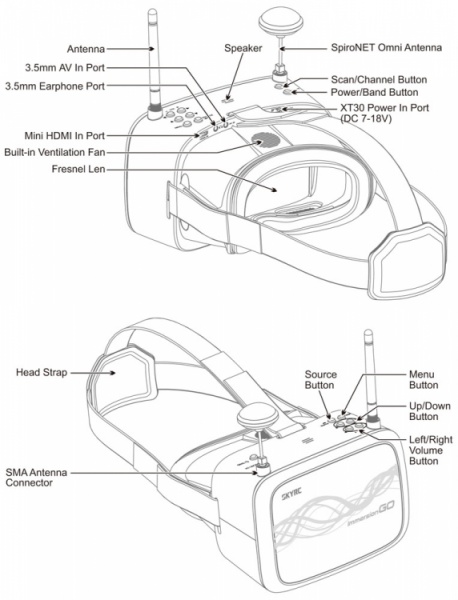

Interface Connectors:
- 3.5 mm AV In Port
- 3.5 mm Earphone Port
- XT30 Power In Port (DC 7-18V)
- Mini HDMI In Port
- 2 SMA Antenna Connectors
Frequencies (GHz):
- Band A: 5.740, 5.760, 5.780, 5.800, 5.820, 5.840, 5.860, 5.880
- Band B: 5.725, 5.745, 5.765, 5.785, 5.805, 5.825, 5.845, 5.865
- Band E: 5.733, 5.752, 5.771, 5.790, 5.809, 5.828, 5.847, 5.866
- Band F: 5.705, 5.685, 5.665, 5.645, 5.885, 5.905, 5.925, 5.945
- Band R: 5.658, 5.695, 5.732, 5.769, 5.806, 5.843, 5.880, 5.917
Set Includes:
- SKYRC HD FPV GOGGLE
- Power Cable
- AV Cable
- SpiroNET Omni Antenna
- Antenna
- Battery Holder
