SAVÖX SB-2292SG Servo 50Kg 0.055s 8.4V Alu Brushless Steel Gear

Art.nr: SB-2292SG
1.895,- 1.995,- -5%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Savox
** Ikke på lager

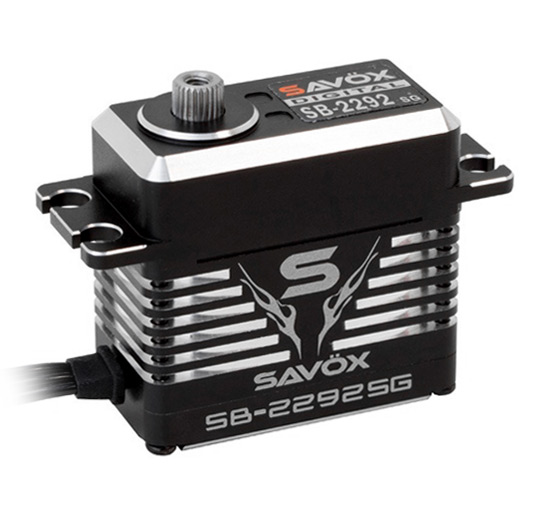

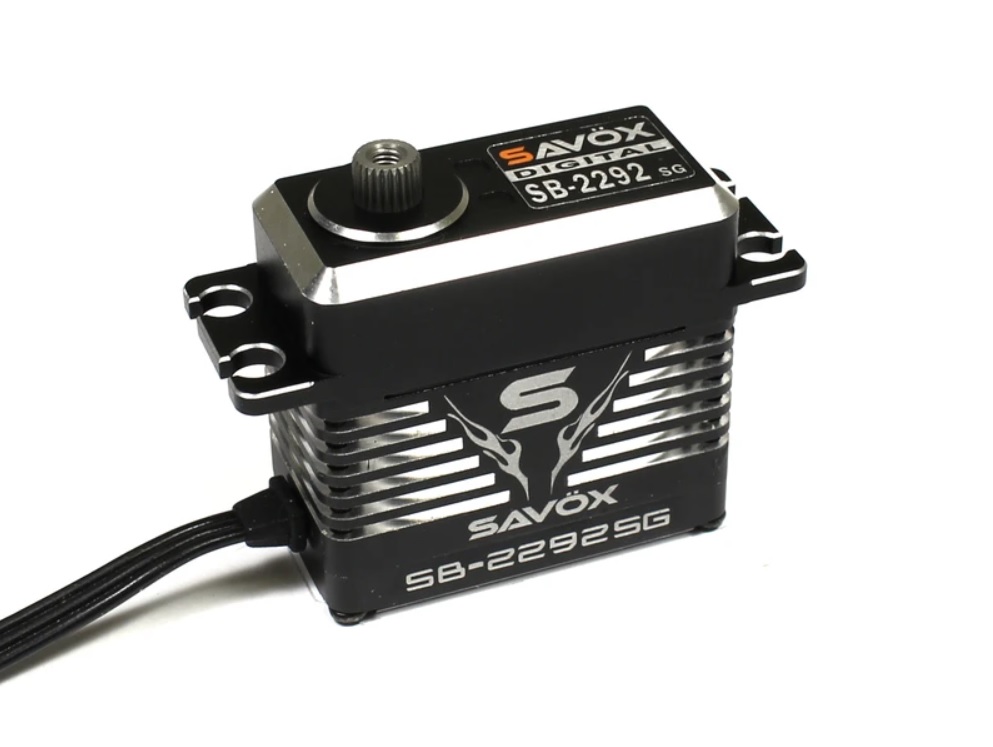

SAVÖX SB-2292SG - High Voltage Brushless Steel-Geared Monster Torque Servo

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

  • High Voltage
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears


Specifications:

  • Torque @ 6V: 27kg/cm
  • Torque @ 7.4V: 36kg/cm
  • Torque @ 8.4V: 50kg/cm
  • Speed @ 6V: 0.085 sec/60 deg
  • Speed @ 7.4V: 0.07sec/60 deg
  • Speed @ 8.4V: 0.055sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm


Technical Details:

  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 3BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
