Savox SW-0231MG PLUS Waterproof 0.17 speed/15kg. Metal gear

Art.nr: SW-0231MG PLUS
569,- 599,- -5%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Savox
** Ikke på lager

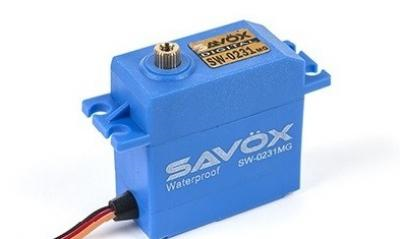

SAVÖX SW-0231MG-PLUS - Water Proof Metal-Geared Standard-Sized Servo

The SW-0231MG-PLUS is a budget friendly, waterproof, high torque, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if your looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power.

Features:

  • New: Soft Start
  • New: sanwa SSR compatible
  • Strong metal gear train for added durability
  • Waterproof case design (IP67)
  • Ideal for cars, truck, and boats subject to water or snow
  • Slightly taller case design


Specifications:

  • Torque @ 6V -15kg/cm
  • Torque @ 7.4V - 25kg/cm
  • Speed @ 6V - 0.17 sec/60 deg
  • Speed @ 7.4V - 0.15 sec/60 deg
  • Dimensions L x W x H: 41.8 x 20.2 x 42.9mm
  • Weight: 66g


Technical Details:

  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
