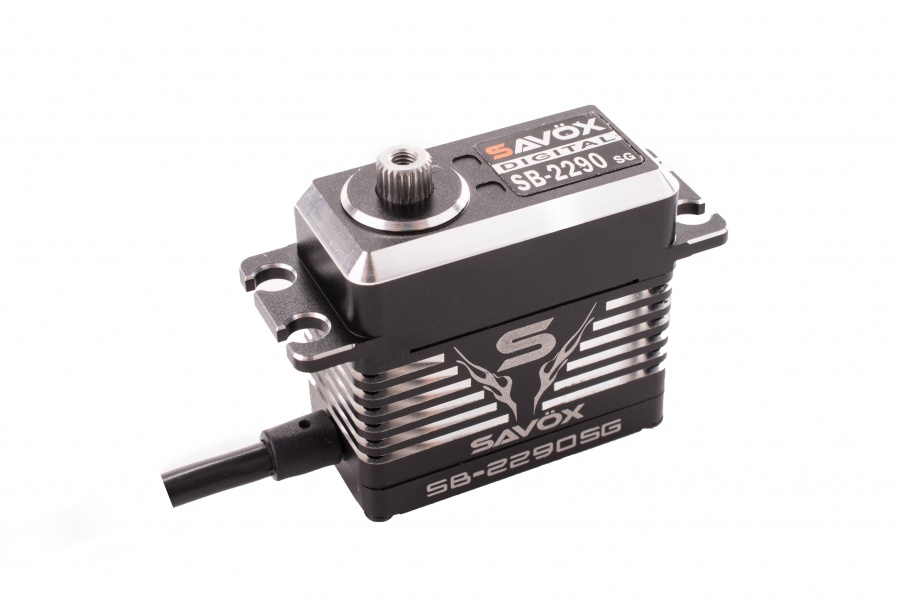

SAVÖX SB-2290SG - High Voltage Brushless Steel-Geared Monster Torque Servo
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Monster Features:
- High Voltage
- Full Aluminum Case
- 3 Precision Ball Bearings
- Unique steel gears
Specifications:
- Torque @ 6V: 40kg/cm
- Torque @ 7.4V: 50kg/cm
- Torque @ 8.4V: 65kg/cm
- Speed @ 6V: 0.16 sec/60 deg
- Speed @ 7.4V: 0.13 sec/60 deg
- Speed @ 8.4V: 0.11 sec/60 deg
- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
- Weight: 81g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 3BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
