RC4WD E0027 1/10 Warn 8274 Winch (75th Anniversary Edition)

Art.nr: E0027
1.995,- 2.195,- -9%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

RC4WD
På lager: 3

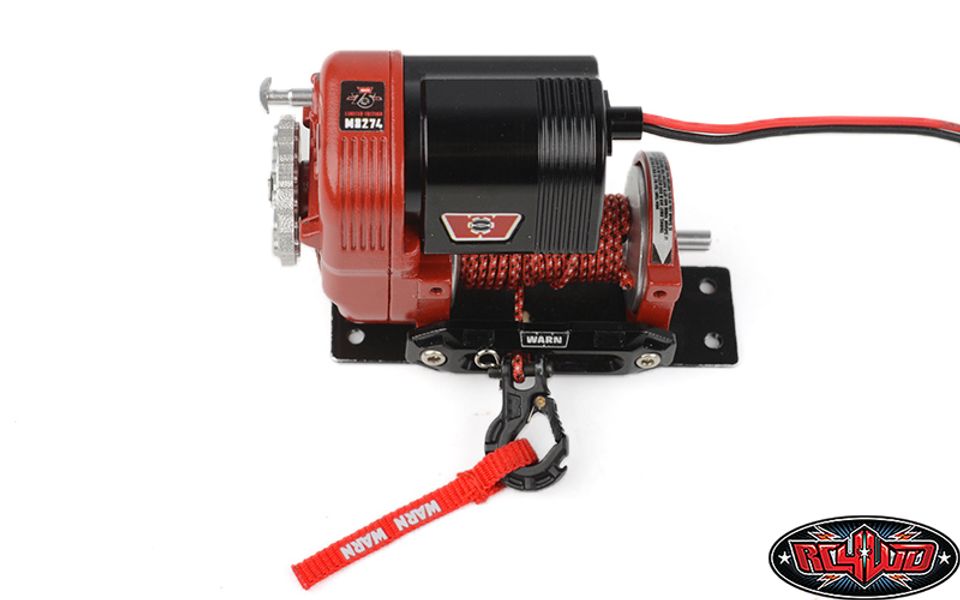

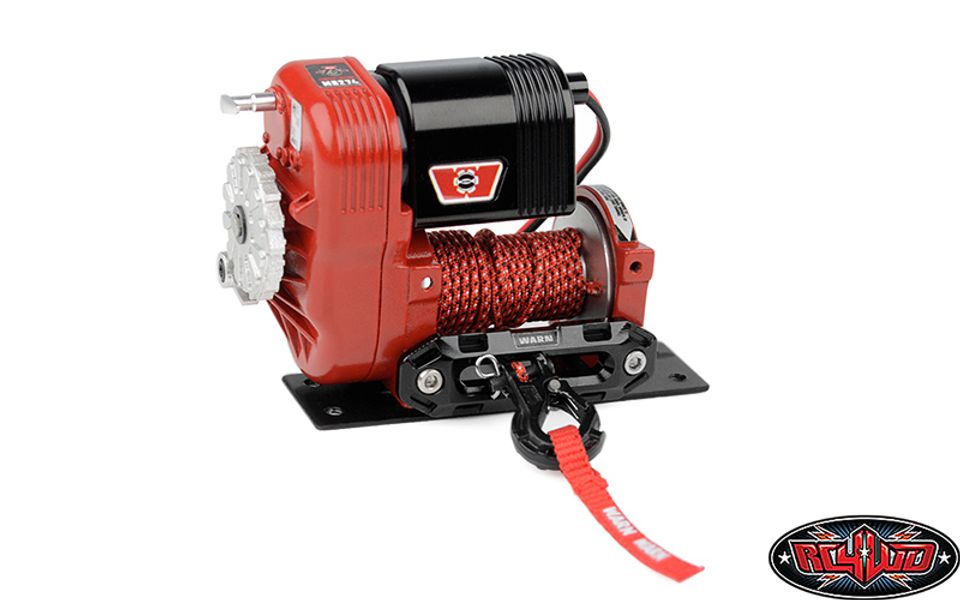

RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition)





Introducing our all-new RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition). This winch brings a realistic, licensed 1/10 version of the custom-configured M8274 Warn Winch! The design is made from quality materials and craftsmanship! This winch is packed full of great features including heavy-duty pulling strength, a free spool, and ultra-realism.





Specifications:

  • CNC Machined
  • Billet and Cast Aluminum
  • Working Spring Loaded Warn Hook
  • Synthetic Winch Rope
  • Highly Detailed
  • Free Spool
  • Full Warn Decals Installed
  • Rated Voltage: 6V
  • Operating Voltage: 6V - 12.4V
  • Can operate on 3 Cell Lipo
  • 3.28ft / 1.0m Rope Pre-Installed
  • Load Limits: Dead Lift 50lbs / 22.6kgs
  • Load Limits: Rolling Drag 70lbs / 31.7kgs
  • Winch Rope Load Limits: Dead Lift 25lbs / 11.3kgs
  • Winch Rope Load Limits: Rolling Drag 37lbs / 16.8kgs
  • 30 Day Warranty
  • Length: 2.56in / 65.0mm
  • Width: 1.06in / 27.0mm
  • Height: 1.77in / 45.0mm
  • Weight: 4.23oz / 120g

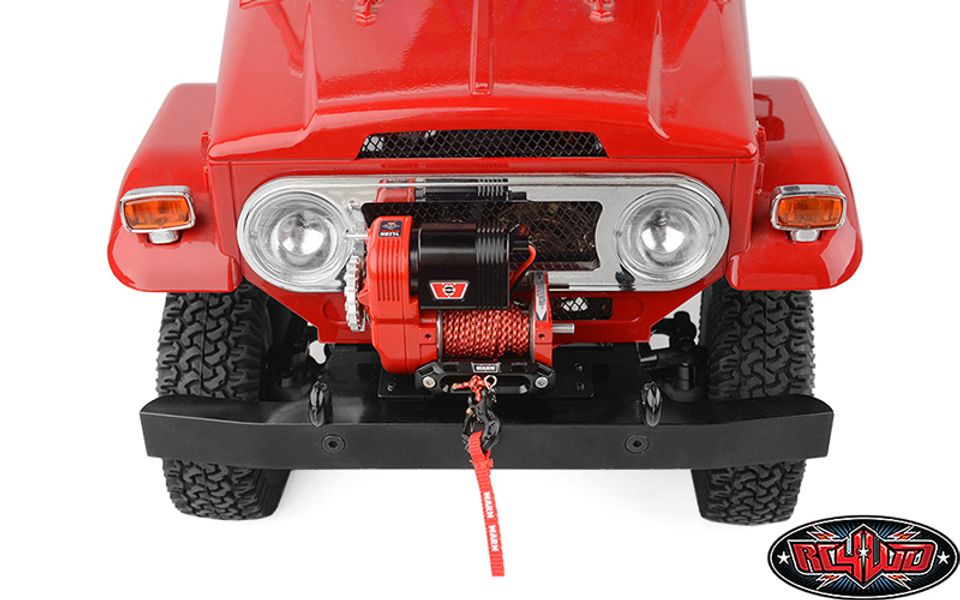

Shown installed on RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047) for example (Not Included)







What's Included:

  • 1x RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition)
  • 4x M2.5 x 4mm SHCS (Black)
  • 4x M2.5 x 6mm SHCS (Black) (Z-S0855)
  • 1x RC4WD Warn Winch Pull Tags (Z-S1660)
  • 1x Warn Decal Sheet Set



Required Parts:



Optional Parts:

  • 1/10 Warn Hook (Z-S1011)
  • Synthetic Winch Rope (Z-S0038)
  • RC4WD Poison Spyder Fairlead for Warn 8274 Winch (Z-S1761)
  • RC4WD Warn Epic Sidewinder (Chrome) (Z-S1997)
  • RC4WD WARN Epic Hyperlink (Chrome) (Z-S1999)
  • RC4WD WARN Epic Hyperlink (Black) (Z-S2000)



Replacement Parts:

  • RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
  • RC4WD Warn Winch Pull Tags (Z-S1660)
  • Replacement Motor/Gearbox for 1/10 Warn 8274 Winch (Z-E0097)



Replacement Hardware:

  • M2 x 6mm BHCS (Black) (Z-S0933)
  • M2 x 8mm BHCS (Black)
  • M2 x 10mm BHCS (Black) (Z-S0911)
  • M2 x 5mm BHCS (Black)
  • M2 x 5mm FHCS (Silver)
  • M1.6 x 5mm BHCS (Black)



Notes:

  • Fits RC4WD Universal Winch Mounting Plates (Z-S1609). This allows for you to get the winch mounted in just the right spot to prevent it from hitting other items on your build.
  • The side gear lock is only for looks and is not to be used for the operation of the winch. Be sure that its not in contact with the gear or it can cause damage to your winch.
  • This winch is very powerful. The winch line will break before you are able to max out the winches capacity.
  • Fits RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
  • Fits RC4WD Jeep JK Rampage Recovery Bumper to fit Axial SCX10 Chassis (Z-S0434)
  • Fits Tough Armor Winch Bumper with Grill Guard for Axial Jeep Rubicon (Z-S1193)
  • Fits RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496) (Remove the fairlead)
  • Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.



Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries and used under license to RC4WD.
