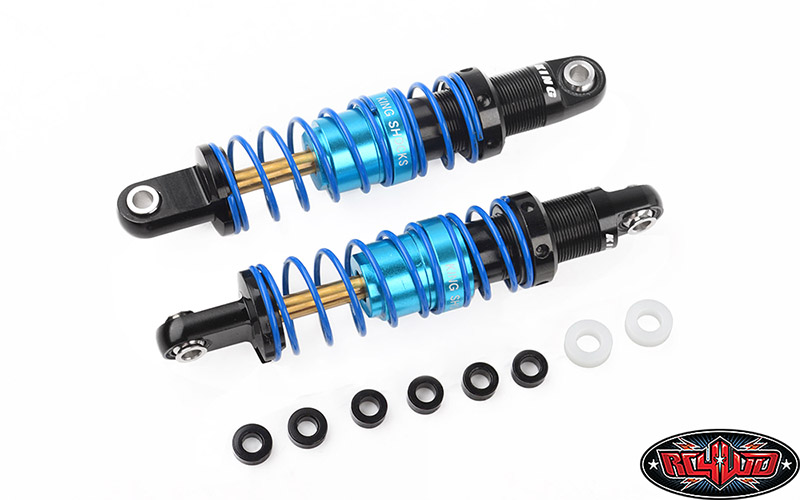

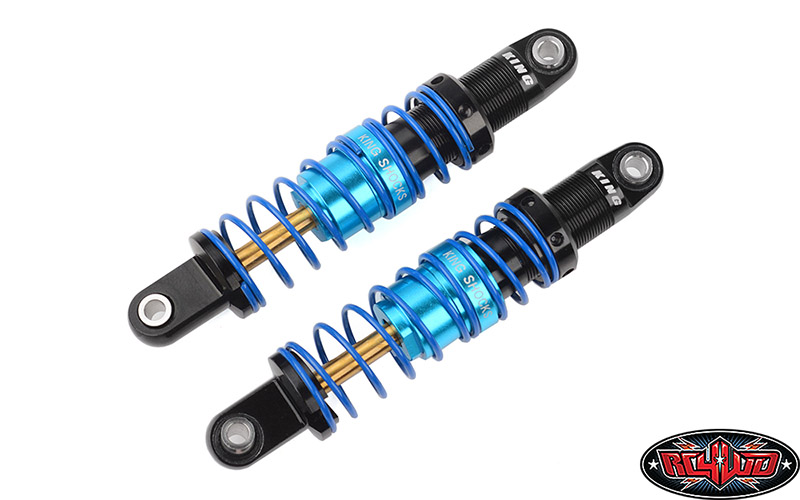

RC4WD King Off-Road Racing Shocks (70mm)
These are officially licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built to handle rough and rocky terrains. Bolt up and upgrade your scale build with a new set of these realistic-looking shocks!
Specifications:
- Machined Billet Aluminum
- King Laser Etched on Top Cap and Retainer Ring
- Dual Spring Design
- X-ring Gaskets
- Titanium Nitride Coated Shock Shafts
- Hole to Hole (Compressed): 2.24in / 57mm
- Hole to Hole (Uncompressed): 2.75in /70mm
- Overall Length: 3.14in / 80mm
- Travel Length: 0.51in / 13.0mm
- Shock Body OD: 0.57in / 14.6mm
- Shaft OD: 0.15in / 3.9mm
- Each Shock Weighs: 0.61oz / 17.5g

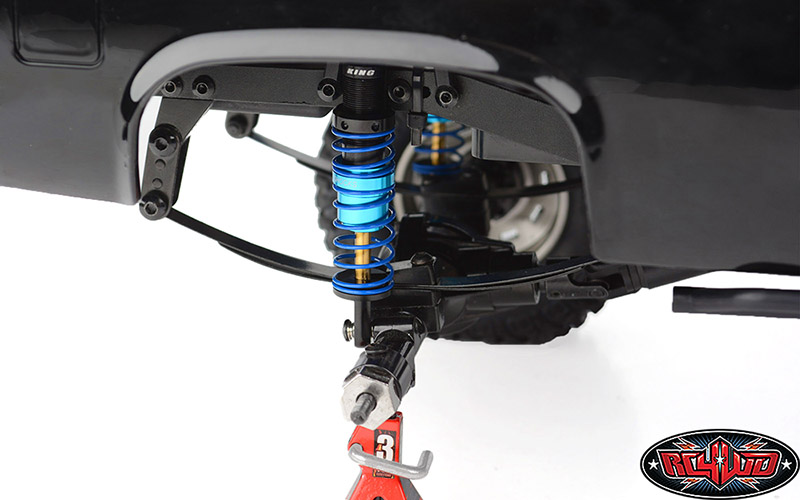

Shown installed on RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068) with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)

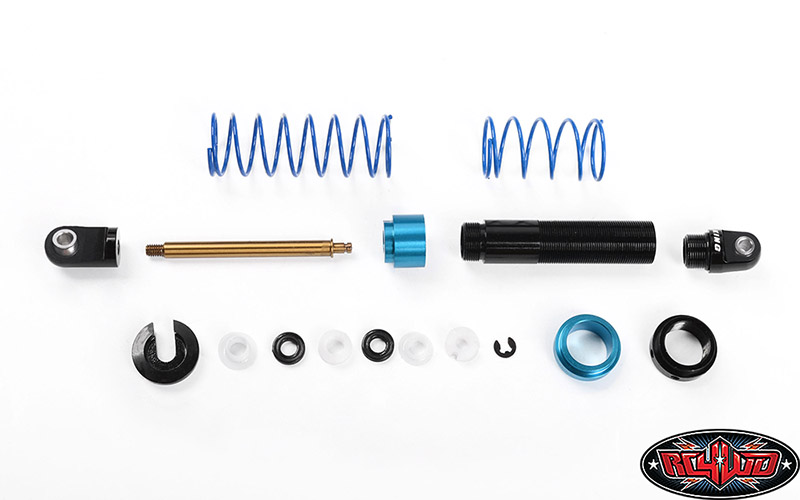

What's Included:
- 2x RC4WD King Off-Road Racing Shocks (80mm)
- 2x White Shaft Guides
- 4x 3 x 5.5 x 2.7mm Black Spaces
- 2x 3 x 5.5 x 2mm Black Spaces
- 1x King Decal Sheet
Optional Lengths:
Notes:
- Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
- X-ring Gaskets provide double the oil seals in the shock cartridge.
- Ball ends are a direct fit for Traxxas TRX-4 axle and shock hoop mounts.
- Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
- Additional X-ring spacers are included to fine tune the shocks. A 2.7mm spacer is installed in the shocks providing maximum sealing compression. The 2.5mm spacer can be used allowing the shaft to move easier through the X-rings.
- Fits Traxxas TRX-4 Land Rover Defender
- Fits Traxxas TRX-4 '79 Bronco Ranger XLT
- Fits Traxxas TRX-4 Sport Kit
- Fits Traxxas TRX-4 Sport
- Fits Traxxas TRX-4 Crawler Kit
- Fits Traxxas TRX-4 Mercedes-Benz G 500 4x4
- Fits Traxxas TRX-4 Chevrolet K5 Blazer
- Fits Traxxas TRX-6 Mercedes-Benz G 63 6x6
- Fits RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
-
Fits RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
-
Fits RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
-
Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
-
Fits RC4WD Gelande II Truck Kit 1/10 Chassis Kit (Z-K0060)
-
Fits RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
- When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.
King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.
