RC4WD A0086 Yota II Ultimate Scale Cast Axle (Center Front)

Art.nr: A0086
1.099,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

På lager: 2

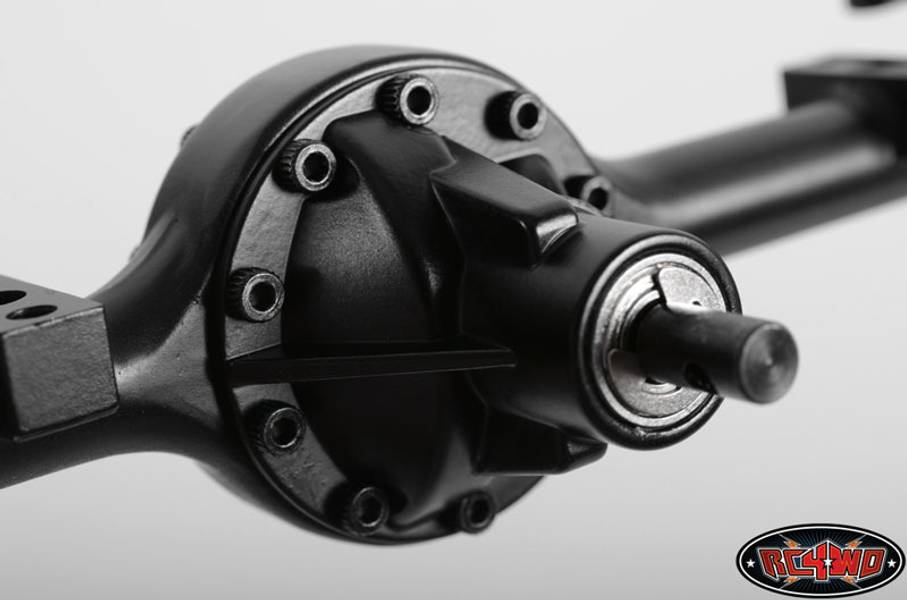

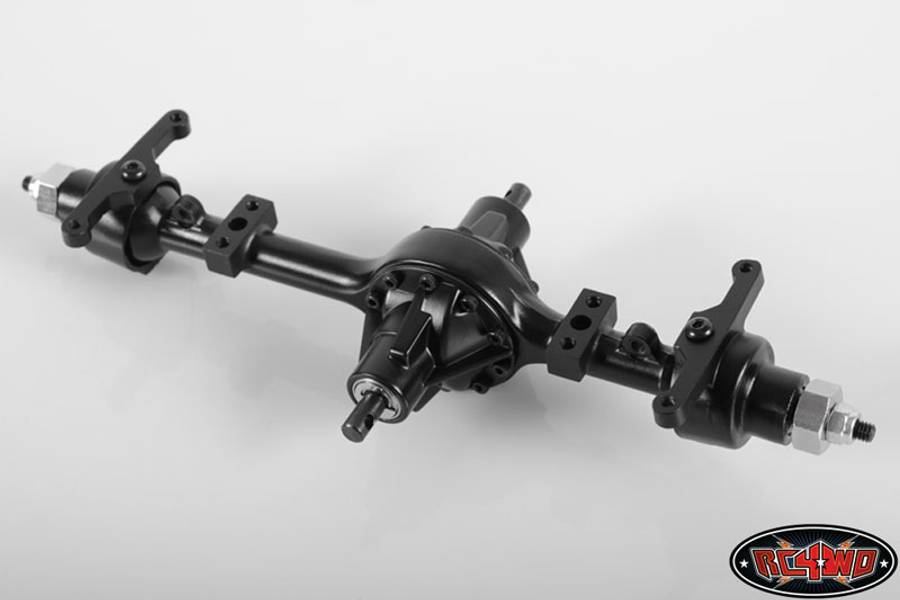

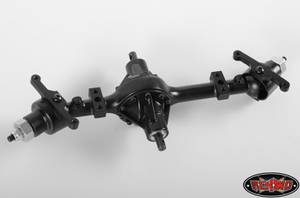

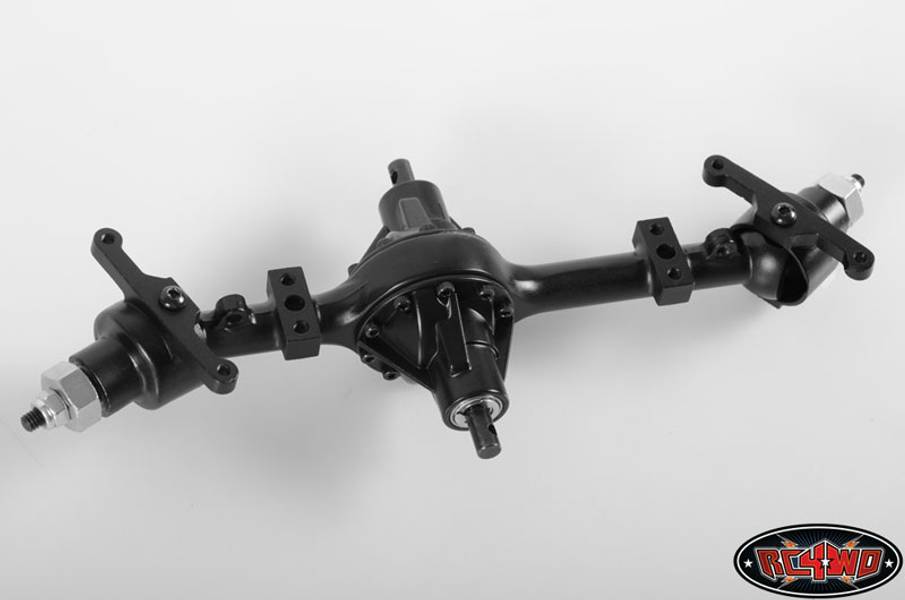

Yota II Ultimate Scale Cast Axle (Center Front)


The most Scale and complex Axle on the market just became even better! Extremely Scale to the smallest details, Removable offset third member and able to be used on your next 6x6 or 8x8 project.




Specifications:

  • Die Cast light Weight Metal Housing
  • Hardened Steel Spool Gears
  • 5mm Axle Output Shaft
  • Full Ball Bearings
  • Powdercoated in black

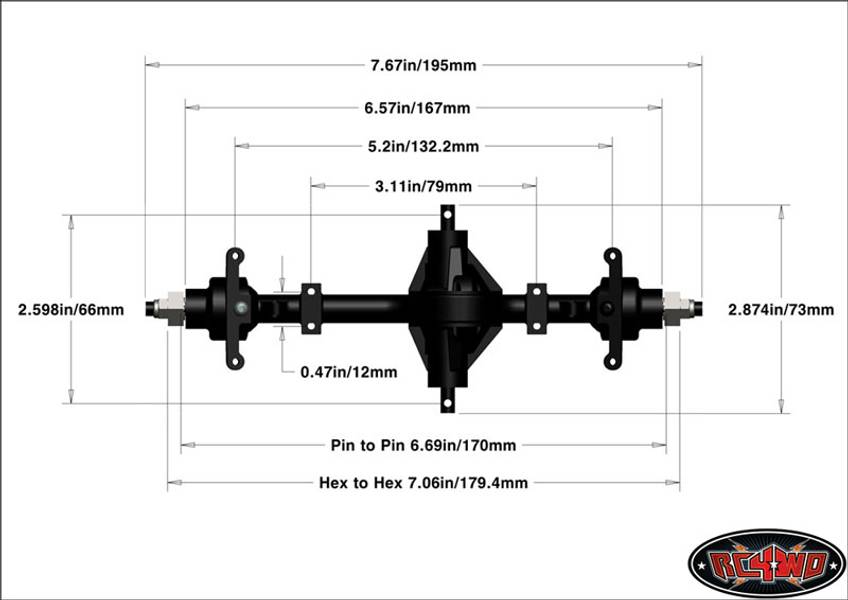

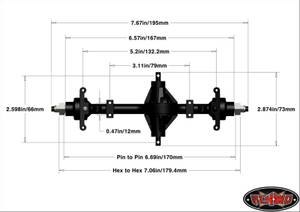

  • Gear Ratio: 2.67 : 1
  • Total Width: 7.67in / 195mm
  • Hex to Hex Width: 7.06in / 179.4mm
  • Pin to Pin Width: 6.69in / 170mm
  • Pumpkin Height: 1.38in / 35mm
  • Leaf Mount Width: 3.11in / 79mm
  • Axle Output Shaft OD: 0.19in / 5mm
  • 12mm Steel Wheel Hex
  • Weight: 5.6oz / 159g








What's Included:

  • 1x Yota II Ultimate Scale Cast Axle (Center Front)

Notes:

  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.

Other Yota II Axles:

  • Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)



Replacement Parts:

  • Axle Ring & Pinion Gears (Z-S0027)
  • Front Replacement Case Housing (Z-A0082)
  • Replacement Third Member (Z-S0813)
  • Replacement Cast Knuckles for Yota II Axle (Z-S0811)
  • Replacement Hardware for Front Yota II Axle (Z-S0868)
  • Yota Front Steel Axle Shaft (Z-S0060)
  • Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
  • 8x Metal Shield Bearing 5x11x4mm (Z-S0683)
  • 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)

Optional Parts:

  • Helical Gear Set (Z-G0059)
  • XVD Axle for Ultimate Scale Yota II (Z-S0823)
  • Steering Link Set (Z-S0938)
  • Ultimate Axle 4 Link Mount (Z-S0133)
  • Axle U Bolt Kit (Z-S0304)
  • RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
  • Knuckle Bushings for Yota II Axle (8) (Z-S1784)
