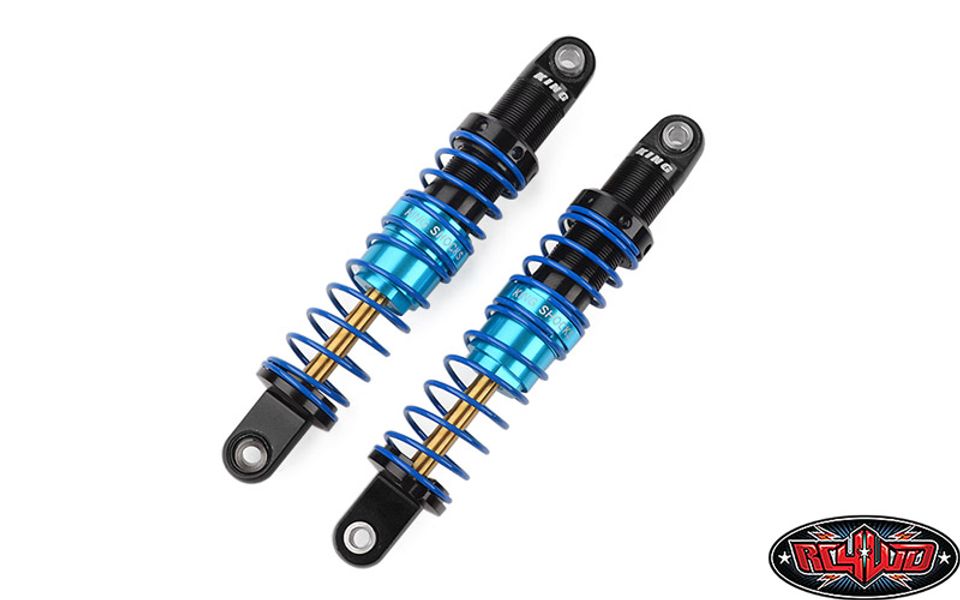

These are officially licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built to handle rough and rocky terrains. Bolt up and upgrade your scale build with a new set of these realistic-looking shocks!
Specifications:
Machined Billet Aluminum
King Laser Etched on Top Cap and Retainer Ring
Dual Spring Design
X-ring Gaskets
Titanium Nitride Coated Shock Shafts
Hole to Hole (Compressed): 2.44in / 62mm
Hole to Hole (Uncompressed): 3.14in /80mm
Overall Length: 3.54in / 90mm
Travel Length: 0.70in / 18.0mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.65oz / 18.7g
Shown installed on RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not Included)
Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
X-ring Gaskets provide double the oil seals in the shock cartridge.
Ball ends are a direct fit for Traxxas TRX-4 axle and shock hoop mounts.
Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
Additional X-ring spacers are included to fine tune the shocks. A 2.7mm spacer is installed in the shocks providing maximum sealing compression. The 2.5mm spacer can be used allowing the shaft to move easier through the X-rings.
Fits Traxxas TRX-4 Land Rover Defender
Fits Traxxas TRX-4 '79 Bronco Ranger XLT
Fits Traxxas TRX-4 Sport Kit
Fits Traxxas TRX-4 Sport
Fits Traxxas TRX-4 Crawler Kit
Fits Traxxas TRX-4 Mercedes-Benz G 500 4x4
Fits Traxxas TRX-4 Chevrolet K5 Blazer
Fits Traxxas TRX-6 Mercedes-Benz G 63 6x6
Fits RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.
King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.
