This is a radio controlled, electric powered, foam construction

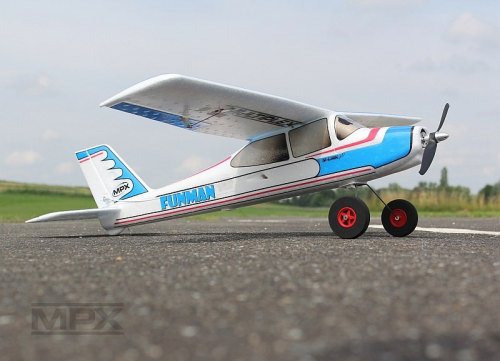

Receiver Ready Multiplex Funman Trainer Airplane.
For Beginning Modeler/Fliers.
FEATURES: Construction: Elapor foam on the fuselage, wing and tail section
Wings: One-piece, foam construction with optional aileron control
Motor: Brushless
ESC: 20A
Servos: Two, rudder and elevator control
Radio Compartment: Foam, sized for high capacity LiPo packs
Landing Gear: Prebent steel wire with 3" (76mm) foam wheels
Hardware: Pushrods and other hardware included
Propeller: 8x5" plastic, black in color with built-in aluminum
spinner
INCLUDES: Foam Fuselage, Wings, and Tail Section, Prop, Motor, Landing Gear,
Wheels, Instruction Manual, and Hardware
REQUIRES: Radio: 4 channel
Battery: 2S 1500-2500mAh LiPo
Battery Charger: To match selected LiPo battery
LiPo charge bag and miscellaneous building equipment
SPECS: Wingspan: 39.8 (1011mm)
Wing Area: 341 sq in (22.02 sq dm)
Wing Loading: 8.7 oz/sq ft (26.55 g/sq dm)
Weight: 20.5oz (581g)
Length: 32.3" (820mm)
Airfoil: Flat bottom, high wing configuration
Center of Gravity: 2.6" (67mm) back from the wing's leading edge
at the fuselage sides
Control Throws-
Elevator, Up & Down: 0.43" (11mm)
Rudder, Right & Left: 0.24-0.39" (6-10mm)
Ailerons, up: 0.27" (7mm), down: 0.12" (3mm)
COMMENTS: This model is NOT made from polystyrene foam. For this reason, it is
not possible to use white glue or epoxy glue. Use only a medium CA
(CA+) glue and activator. Do not use CA glue designed for polysty-
rene foam.
