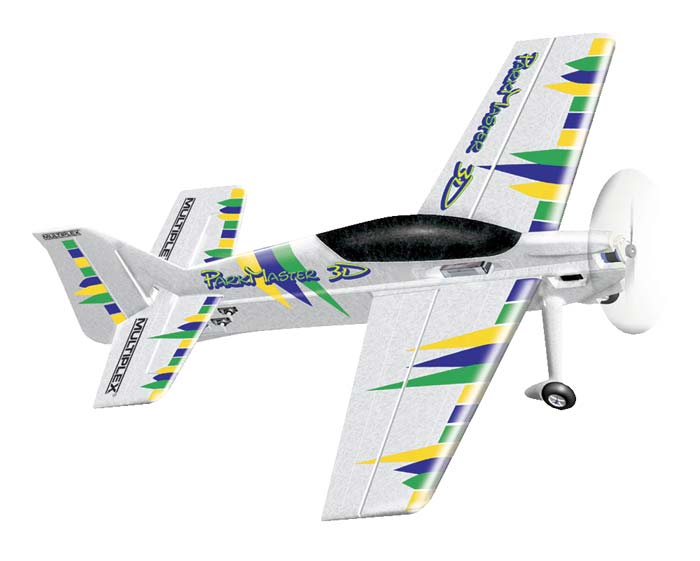

This is the radio controlled, electric powered,
Multiplex ParkMaster 3D Park Flyer Airplane Kit.
For Intermediate Modelers.
Fully 3D capable, can be flown outdoors in moderate wind.
FEATURES: Construction: Elapor foam white in color
Wings: One-piece all foam
Radio Compartment: Accessible under wing
Aileron Control: Dual servo
Landing Gear: Main, prebent fixed wire 0.008" (2mm) diameter,
Wheels: Two foam 2" (51mm)
Canopy: Elapor foam
Decals: Peel and stick application with yellow, blue and green
accents
Building Time: Ready to fly in several hours
INCLUDES: Pre-molded wings, fuselage and tail assemblies, pushrods, all
hardware, pre-bent 0.008" (2mm) wire landing gear, two 2" (51mm)
main wheels, plastic motor mount, decal sheet and photo-illustrated
instructions
REQUIRES: Motor: Multiplex makes a power set for this kit that includes a
Himax 2816-0890 Motor, BL-17 Speed Control, APC 11 x 5.5" taper
collet and prop driver
Battery: Multiplex #15 7116 (not carried)
Battery Charger: LiPo compatible
Radio: 4 channel
Servos: Four micro, 2-Aileron, 1-Elevator, 1-Rudder
Misc. Items: Building and field equipment
SPECS: Wingspan: 37.8" (960mm)
Wing Area: 565 sq in (36.5 sq dm)
Weight: 18.5oz (525g)
Wing Loading: 5.9 oz/sq ft) (18 g/sq dm)
Length: 39.4" (1000mm)
Airfoil: Fully symmetrical, mid-wing placement
Center of Gravity: 4.3 - 4.7" (110 - 120mm) Back from the wing's
leading edge at the fuselage
Control Throws-
Ailerons: 2.5" (65mm)
Elevator: 2.5" (65mm)
Rudder: 3.5" (90mm)
COMMENTS: This model is NOT made of styrofoam and it is not possible to glue
the material using white or epoxy glue. Medium CA glue used with
an activator is the only method of gluing recommended by the
manufacturer.
