Kyosho 30645B Ultima'87 WC Worlds Spec 2WD 1:10 Kit KA 20th Anniversary Ltd
Secret high performance works team buggy
Finally revealed to the world!
At the 1987 EP (Electric) Off-Road World Championships in the UK, the Kyosho Ultima achieved total domination with a clean sweep of the podium. This limited-edition model based on the Kyosho Works team car designed and driven by Akira Kogawa, has been released to commemorate the 20th anniversary of Kyosho America. Featuring the works model specifications with gunmetal anodized aluminum and carbon fiber parts, this model combines a wide range of optional upgrades including new components to elevate its dynamic driving performance. With the same sharp low-profile body designed for the Optima Pro combining with the latest R/C engineering technology, the new Ultima ‘87 World Championship Spec lets you relive the cutting edge driving performance of that era, 37 years after its spectacular World Championship performance.
●Commemorating the 20th anniversary of Kyosho America, the World Championship Works 2WD buggy becomes the 17th release in the Kyosho Vintage Car series.
●Special components and unique colors distinguish this limited-edition reproduction of the 1987 World Championship winning model.
●Features a wide variety of optional parts that were previously optional upgrades at a great value price compared to individual purchase.
●While following the original design from 1987, each part has been updated to match modern R/C systems and power sources.
●All rods are turnbuckle type, making it easy to adjust camber and toe angles.
●Full bearing specification, even in the servo saver.
●Dial-adjustable oil shocks allow for easy vehicle height adjustment.
●Unassembled kit requires R/C system, motor and batteries.

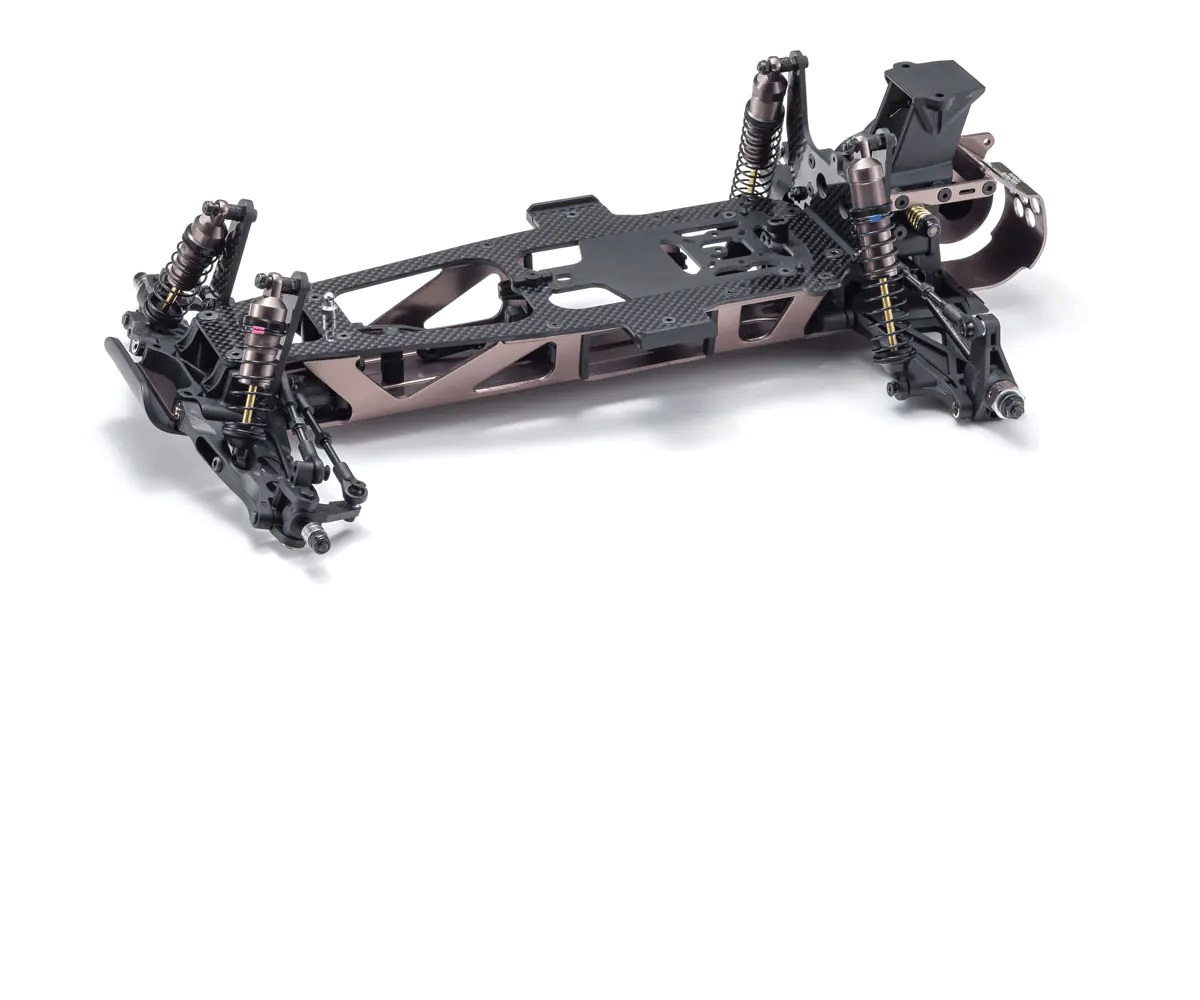

Rear motor mounted 2WD buggy produces excellent driving stability with its high-strength aluminum monocoque chassis anodized in limited edition gunmetal color in combination with a newly designed hybrid carbon upper plate.
Recognised for its stylish form and superior aerodynamics, the included Optima Pro body features a special Kyosho America 20th anniversary decal set with cut lines matched to the Ultima.

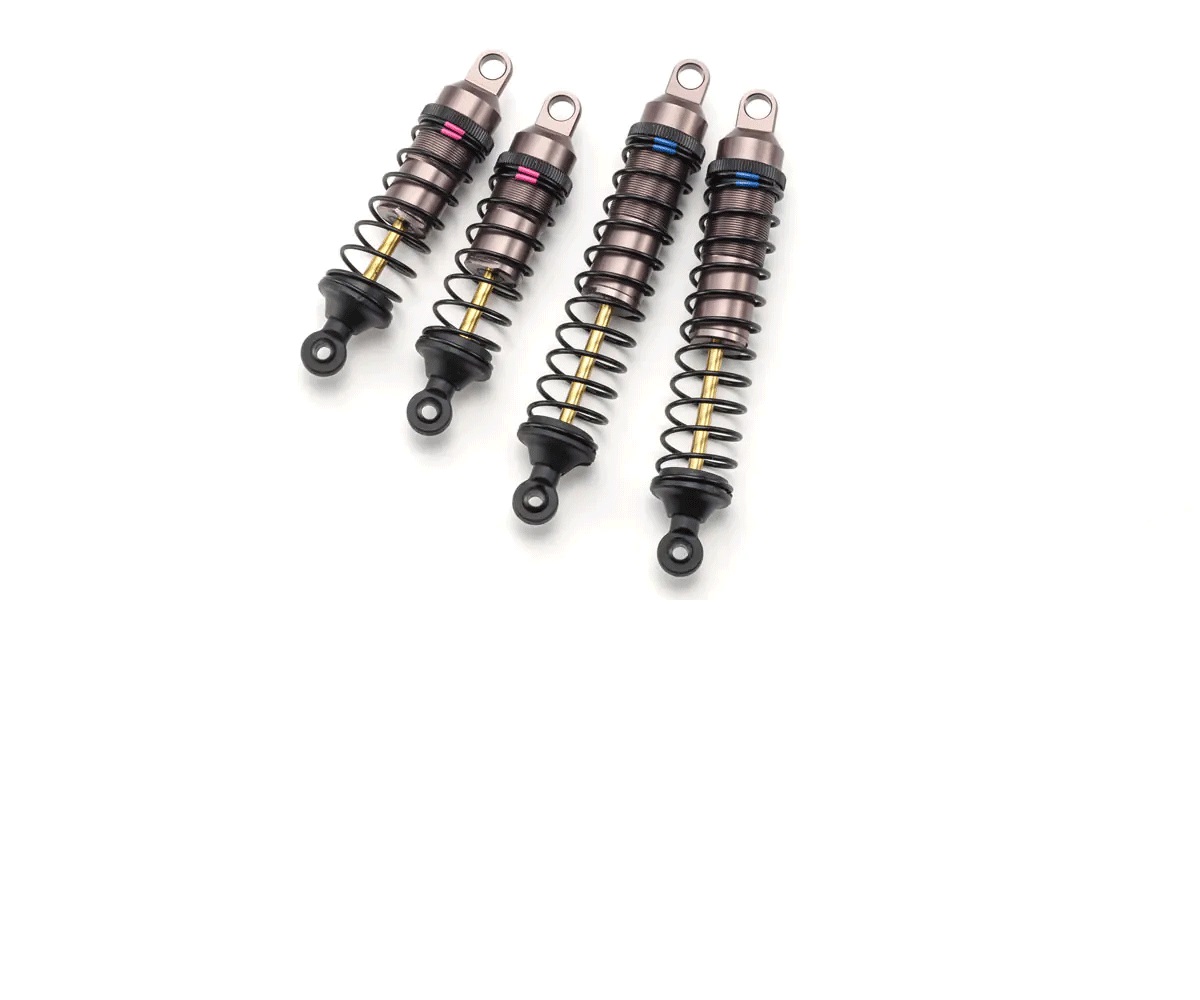

Large capacity oil shocks feature titanium coated shafts for smooth function and durability plus dial adjustable chassis height. Shock caps and cases are finished in the Kyosho Works signature gunmetal color.

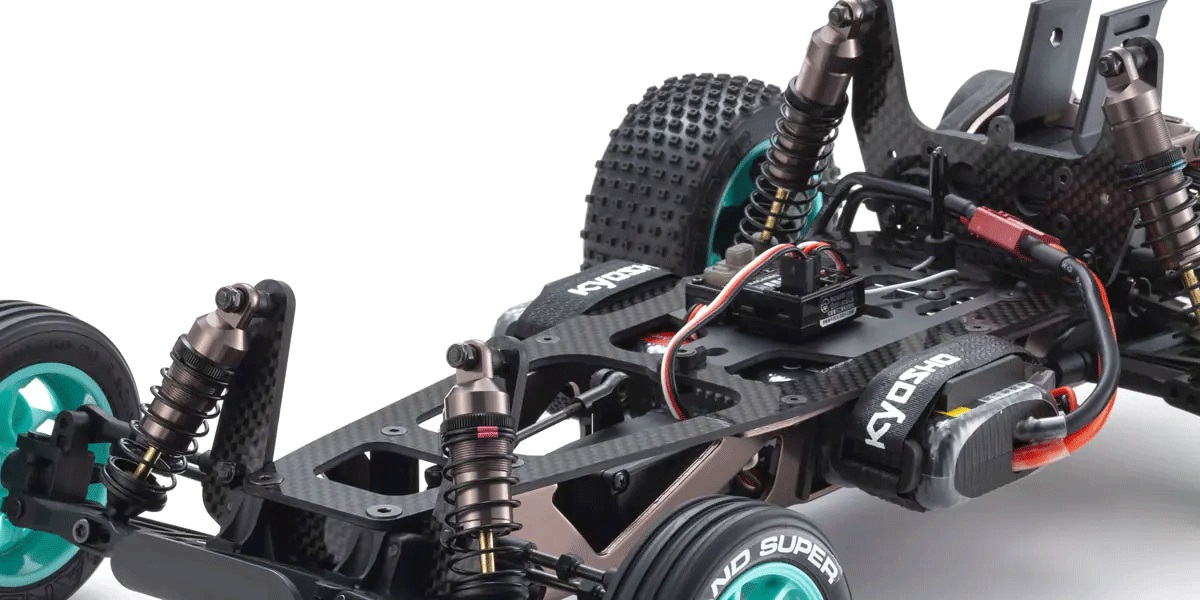

Carbon fiber shock stays are included as standard and absorb the feedback from the road surface to ensure maximum suspension effectiveness. These were an optional upgrade on the original.
Newly designed hybrid carbon fiber upper plate is not only lightweight but also highly rigid. Unlike the early Ultima, it can accommodate short LiPo batteries in addition to standard type.

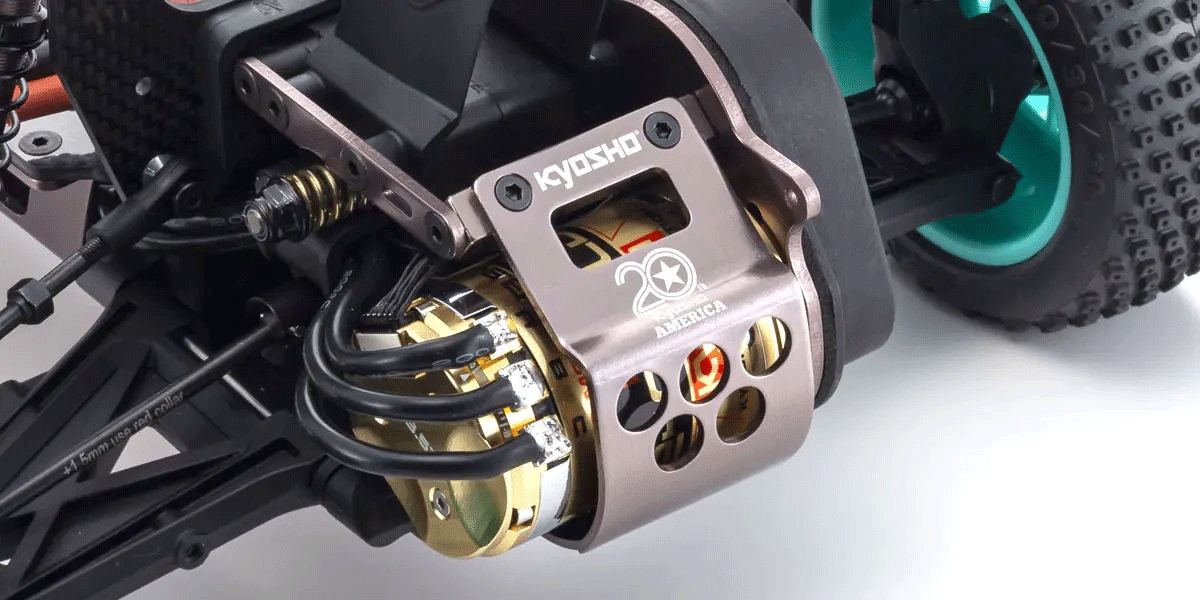

Engraved with a logo commemorating Kyosho America’s 20th anniversary, the aluminum motor guard is also finished in gunmetal and protects the motor from crash damage.

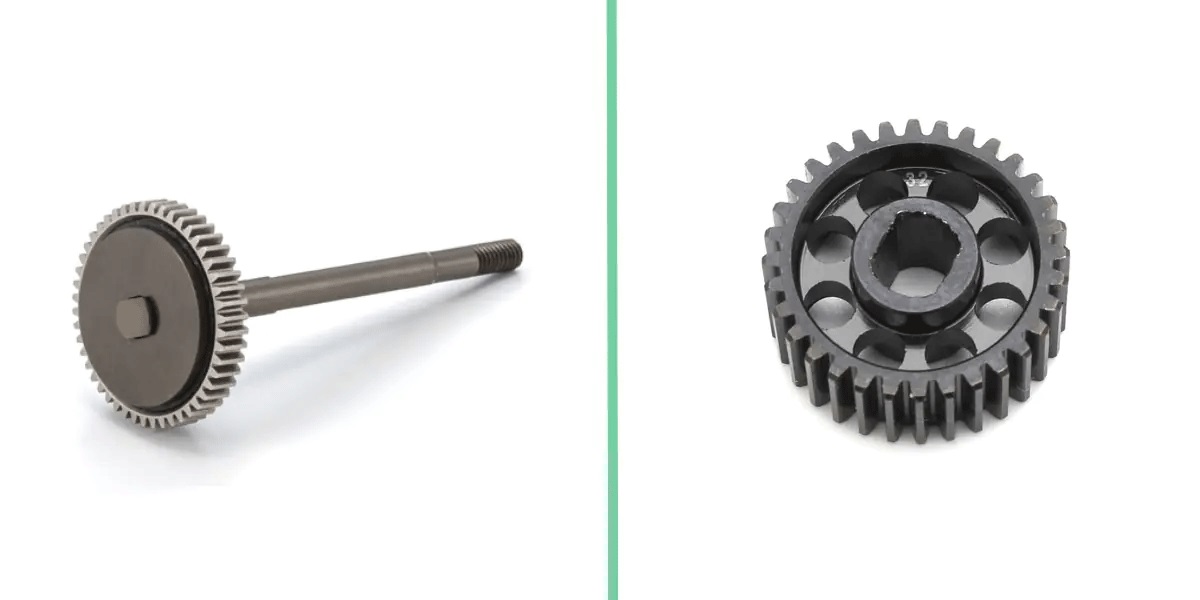

Gear shaft and slipper plate are made from aircraft-grade 7075 Duralumin. Not only effective in reducing weight of the drive system and overall chassis, they also combine with the HD final pinion gear to deliver superior acceleration and deceleration.
Ball differential unit delivers smooth cornering and sharp acceleration even on low grip off-road surfaces. This latest Ultima incorporates components that were previously optional upgrades.

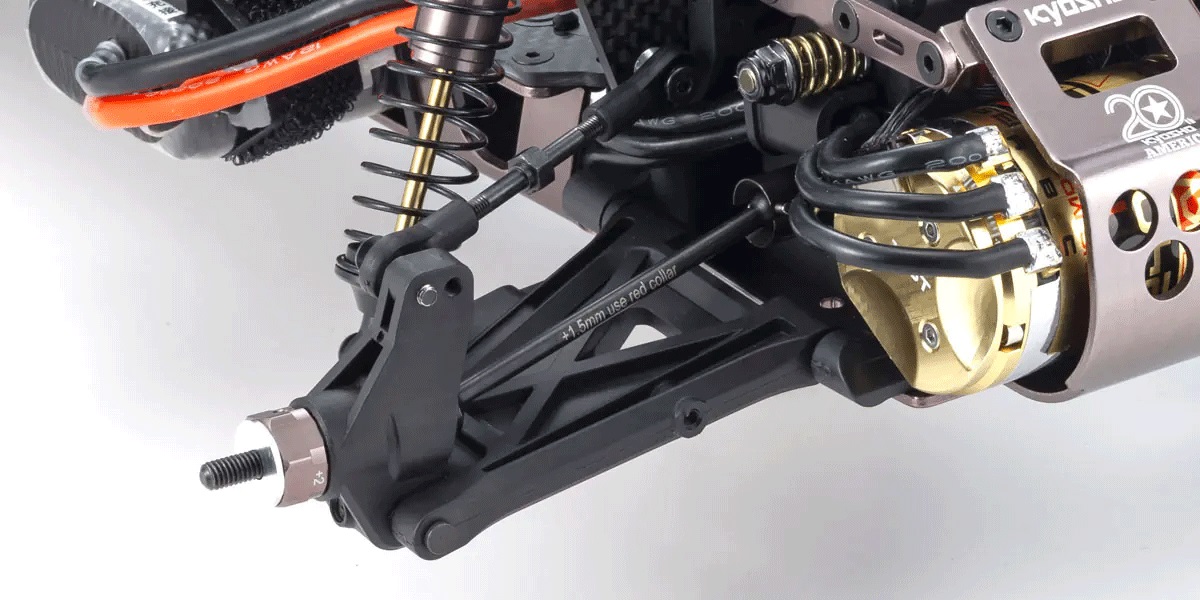

Universal swing shafts ensure motor power is efficiently transferred to the rear wheels, not only improving drive efficiency but also minimizing the risks of parts falling off after jump landings.
■Length 370mm
■Width 250mm
■Height 130mm
■Wheelbase 260-263mm
■Tread F:208mm / R:214
■Weight approx 1500g(with 7.2V4000 LiPo）
■Tires F: φ75×20mm / R: φ82×36mm
■Motor 540 class size (sold separately)
■Gear ratio 8.64：1
●Kit chassis
●Tire
●Wheel
●Clear body
●Decals
●hexagon wrench
●Cross wrench
●Shock wrench
●Grease
●Shock oil
●Ball Diff Grease
＜Required for Operation＞
●2 channel R/C system
●Servo
servo size：L42xW21xH38mm
recommended:No.82274 KS4031-06WまたはNo.82273 KS5031-09MW
●540Motor
●ESC
ESC size：L45xW38xH27mm
recommended:No.37051B LE MANS 240S ESC
●Battery for chassis
Battery size：L140xW47.5xH25mm
recommended:No.GAB4202 Gens ace LiPo 4000 Straight pack(60c/7.4V)
●Batteries for transmitter
●Charger for battery
●Paint for body
●Regulated power supply
