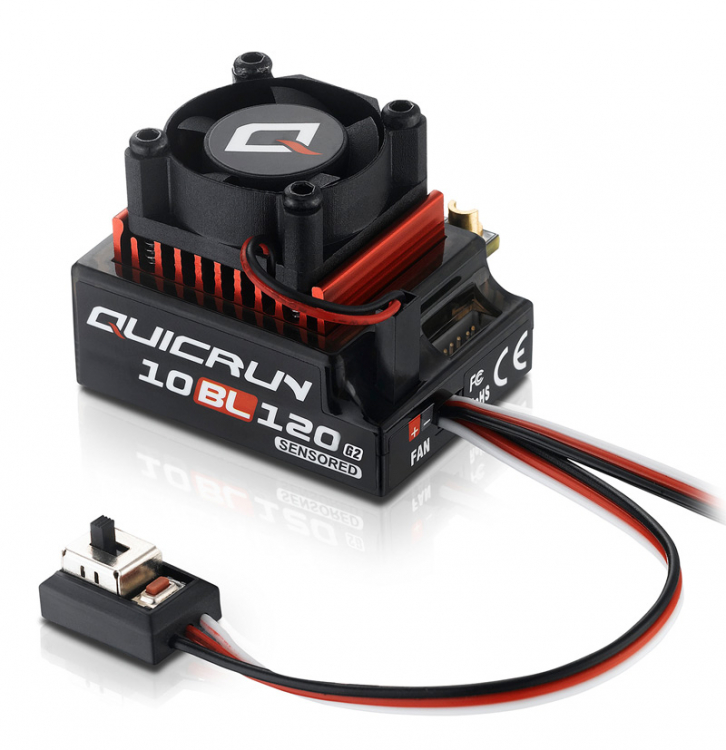

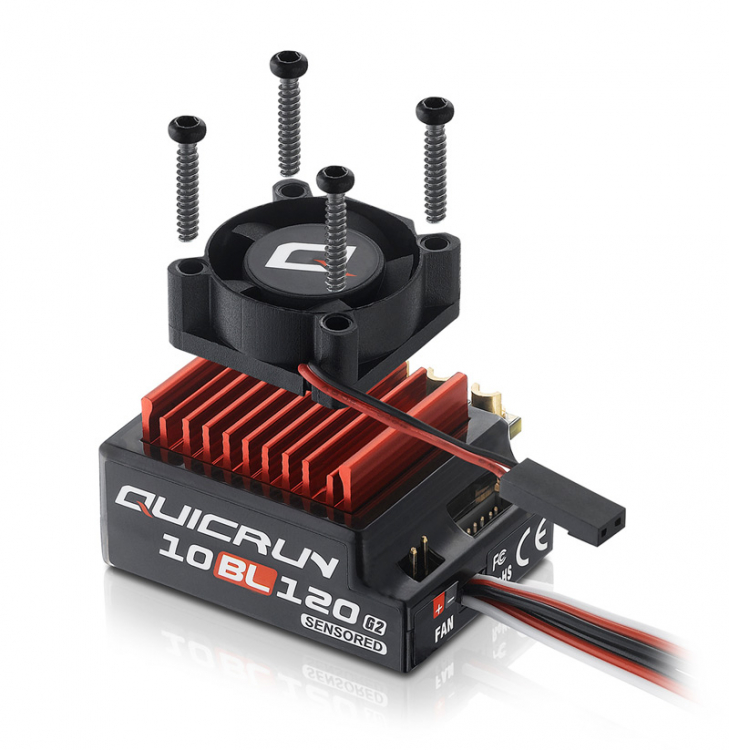

Hobbywing HW30125002 - QuicRun 10BL120 SENSORED G2 ESC
Best value for money, Easy to use
The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup. The perfect choice for 10th scale setups.
Upgraded BEC
The BEC's continuous output current has been upgraded from 3A to 4A. The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable. Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.
Boost/Turbo timing technology
The 10BL120 G2 features adjustable electronic timing. Turbo and Boost can be used to fine tune power delivery and get the most out of your setup. Up to 32 degrees of electronic timing is available.
- Note: Boost and Turbo timing cannot be used with a 3S battery to prevent damage.
Multiple programming/tuning methods are supported
Works with the Multifunction LCD programming Box Pro, The Multifunction LCD Programming Box (Non pro), the LED Programming Box, and has on board button/led tuning.
Specs:
- Type: 1/10 Brushless & Sensored ESC
- Waterproof: No
- Cont./Peak Current: 120A/760A
- Input Voltage: 2-3S LiPo
- BEC Output: Switch Mode 6V/7.4V @ 4A
- Input Wires: 12AWG-200mm
- Output Wires: 12AWG-200mm
- Input Connectors: No
- Output Connectors: No
- Fan Size: 25x25x10mm
- Fan Output Wires: 5-8.4V
- Fan Input Connectors: Powered by BEC
- Firmware Upgrade: Not Supported
- Size: 43x36.8x32.3mm
- Weight: 101.5g
- Motors: Sensorless / Sensored Brushless Motor
- Vehicles: 1/10 Touring, Buggies & Drift Cars
- KV Rating/T Count: 2S Lipo ≥4.5T, 3S Lipo ≥10.5T - 3650 Size Motors
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Pro Program Box: Supported
- OTA Programmer: Not Supported
- Program Port: Separate Program Port
