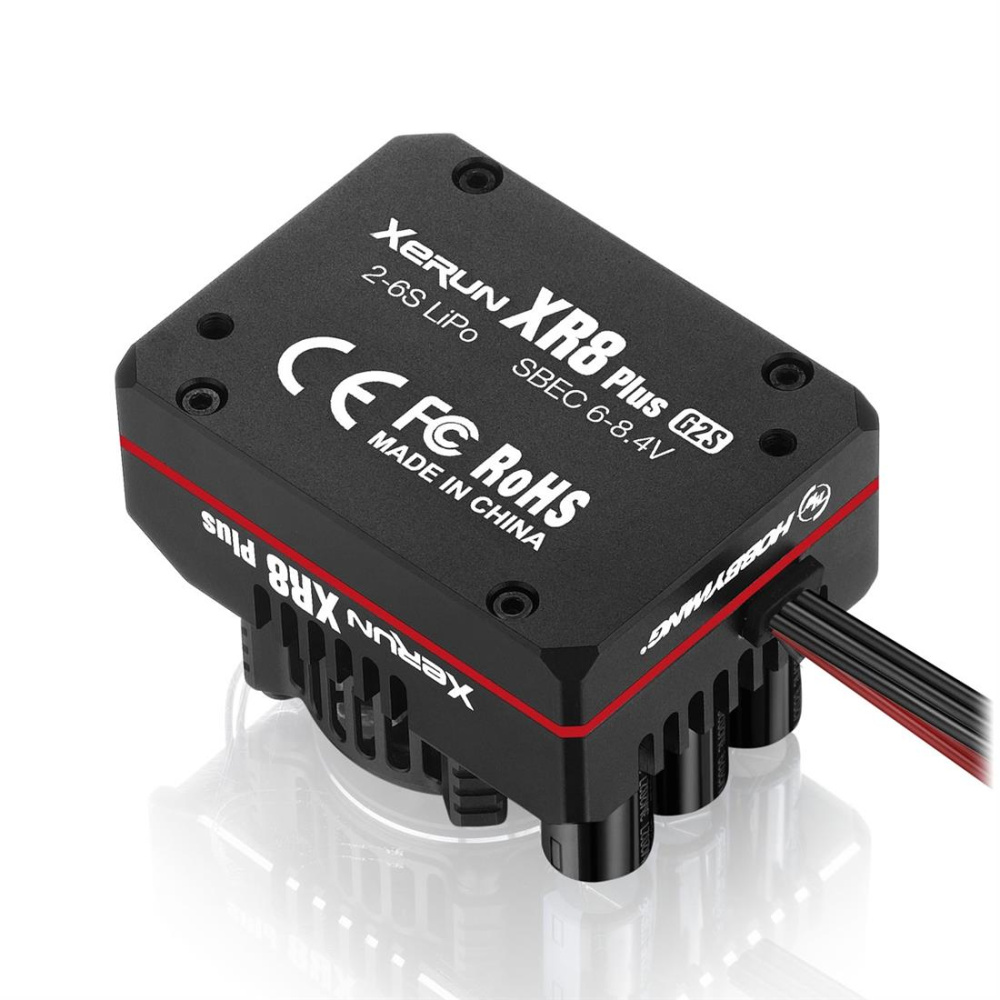

Hobbywing 30113304 XeRun XR8 Plus G2S 200A 2-6S

Art.nr: 30113304

2.795,-

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

Hobbywing

På lager: 1

Informasjon
Produsent

200A!
2-6s LiPo
Konkurranse regulator!

Hobbywing XR8 XR8 Plus G2S er en konkurranseregulator for 1/8 buggy. Denne regulatoren har beskyttelse mot reversert polaritet, frameless fan deisgn, effektiv kjøling og intern BEC. XR8 Plus bruker 11AWG ultra soft silikonkabler slik at du lettere kan bøye kablene i retningen du ønsker. Du kan også enkelt programmere XR8 Plus ved hjelp av Hobbywings OTA module box eller med LCD modulen.

Reverse Polarity Protected

Pro G2S Elite sikrer deg mot skade på ESC ved feil tilkobling av pluss og minuspoler.

Nytt viftedesign!

Denne regulatoren ser enda bedre ut en før! Viftedesignet er nå rammeløst, dette gjør viftene mer holdbare der dem har fått tykkere blader og enda bedre kjøling. I tillegg vil den se enda "renere" ut enn noen gang!

RPM speed limit

Regulatoren støtter opptil 6 forskjellige hastighetsvalg (RPM) tilmøte behovene og kravene til ulike konkurranser i verden.Den kan programmeres ved å bruke den nyeste OTA Bluetooth-modulen eller den tradisjonelle 3-i-1 programboksen.

Kommunikasjon er nøkkelen

Hobbywing har her integrert regulatoren med en ny kommunikasjon protokol som betyr raskere oppdateringer ved bruk av LCD boksene til Hobbywing. LCD Programming Module anbefales ved kjøp av programmeringsboks (ikke inkludert).

Real-time data

Om ønskelig har man også muligheten til å koble opp Hobbywings OTA Modul for å få real-time data.

Spesifikasjoner

Skala	1/8 biler
Type	Børsteløs/Sensored
Vanntett	Nei
Innspenning	2-6s LiPo
BEC Out	6-8.4V

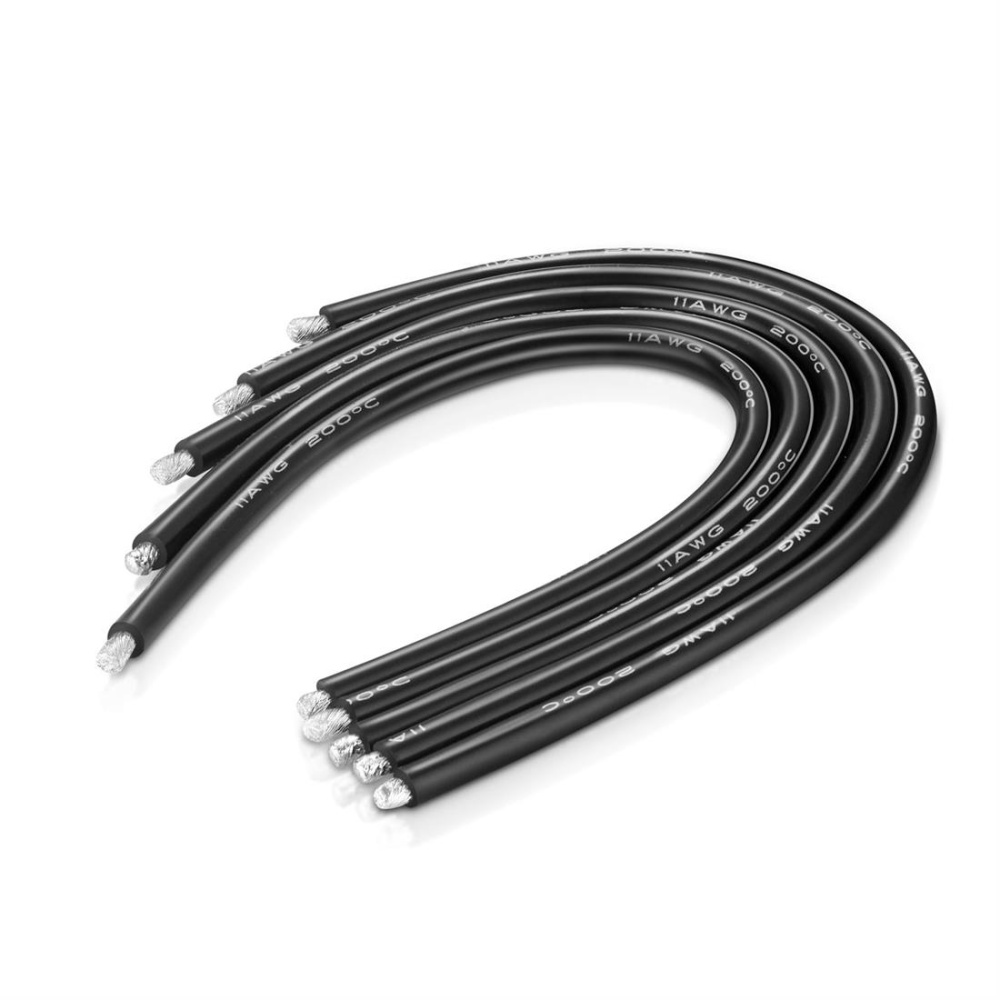

Kabler	11AWG 200mm
Kontakter	Ikke inkludert
Størrelse	56.1 x 42.1 x 38.5mm
Vekt m/kabler	122g

Product details in english

XR8 Plus G2S
The XR8 Plus G2S ESC is the next development of a 1/8 ESC series with 6 RPM limit profiles. An efficient system for heat regulation ensures less heat development than with other controllers, because thanks to the strong airflow on the sides of the fan and the copper heat sink inside, the XR8 is optimally protected. This is also urgently needed in some heat-up races.

Designed for the use with 2-6S LiPos batteries, the ultra-soft cable routing made of 11AWG cables, the specially designed solder tags and the elegant appearance are examples of the high-quality workmanship. In terms of functionality, the XR8 Plus G2S shines with an extended BEC of 6-8.4V in 0.1 steps, because a wide range of servos can be addressed. The capacitor also brings security and protection. And those who value performance measurement themselves definitely want to check out the corresponding smartphone app. If the XR8 ESC is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed in live-mode.

Features:

Durable Frame-less Fan
Built-in 5 common profiles, suitable for all 1/8 Racing, select and use instantly. (e.g. Zero timing-Blinky mode, 1/8 Off-Road Racing, 1/8 On-Road Racing, 1/8 GT Racing, 1/8 Sport mode).
There are 30 built-in adjustable parameters to set various power requirements. The parameters can be imported and exported, which is convenient for drivers to communicate with and learn from each other.
Supports the firmware upgrade of the ESC (The multi-function LCD programming box or OTA Programmer is needed to purchase). You can enjoy the latest functions.
Supports 48 degrees Boost and Turbo timing. When matching with XERUN 4268/4274 G3 motor, the Max. Speed can be promoted by 50%, easily win your rival.
Multiple function: Low voltage protection, thermal protection of the ESC, motor and capacitor.
Built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step: 0.1V) for usage with servos & other devices require different voltages.
The built-in reverse connection protection circuit of the ESC avoid the damage to the ESC due to reverse connection.
The record function of real-time data: Open this function by connecting the ESC with HW Link (OTA Programmer is needed to purchase) and mobile App can check throttle quantity, Voltage,
Current, Temperature, RPM and other data in real time, and obtain the running status of the ESC and motor.
The record function of off-line data: It can not only read out the extreme value data such as the maximum temperature of the esc and motor,maximum RPM of the motor through the LCD program box or HW link app (OTA Programmer is needed to purchase), but also view the historical running data (graph) in the data record in HW link app (OTA Programmer is needed to purchase
