Hobbywing 30107300 QuicRun WP 10BL60 G2

Art.nr: HW30107300
595,-

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

På lager: 1

Produktinformasjon

1/10 Skala Stock
Børsteløs

HobbywingQuicRun WP 10BL60 G2. Passer til 1/10 Skala Biler

Intelligent Freewheeling-teknologi reduserer effektivt varmeutvikling. Denne teknologien gjør det mulig for ESC-en (Electronic Speed Controller) å oppnå høyere kjøreeffektivitet ved lavere driftstemperatur. Dette forbedrer stabiliteten og påliteligheten til ESC-en ytterligere.


Spesifikasjoner

Skala Type 1/10 Skala
Type Børsteløs / Sensorløs
Vanntett Ja
Innspenning 2-3S Lipo
BEC Out Switch Mode 6V @3A
Kabler 14AWG-150mm
Kontakter Inkludert
Størrelse 30 x 30 x10mm
Vekt m/kabler 82.6g

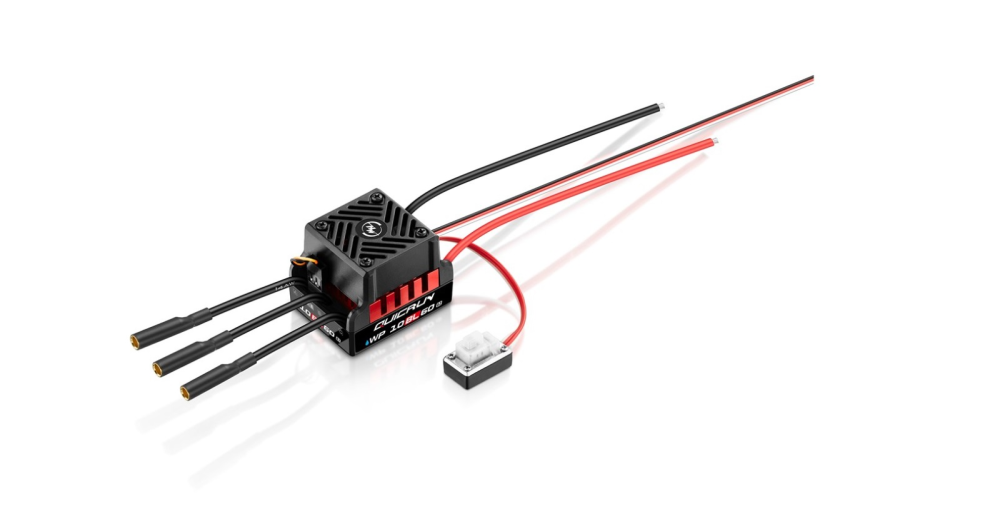

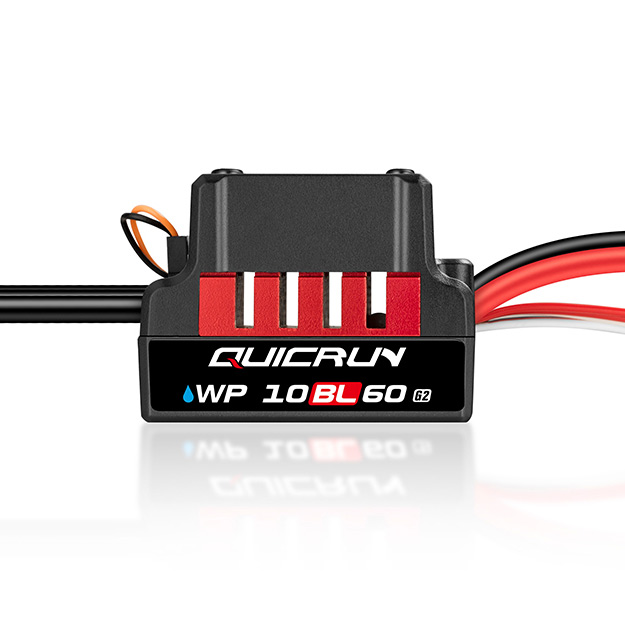

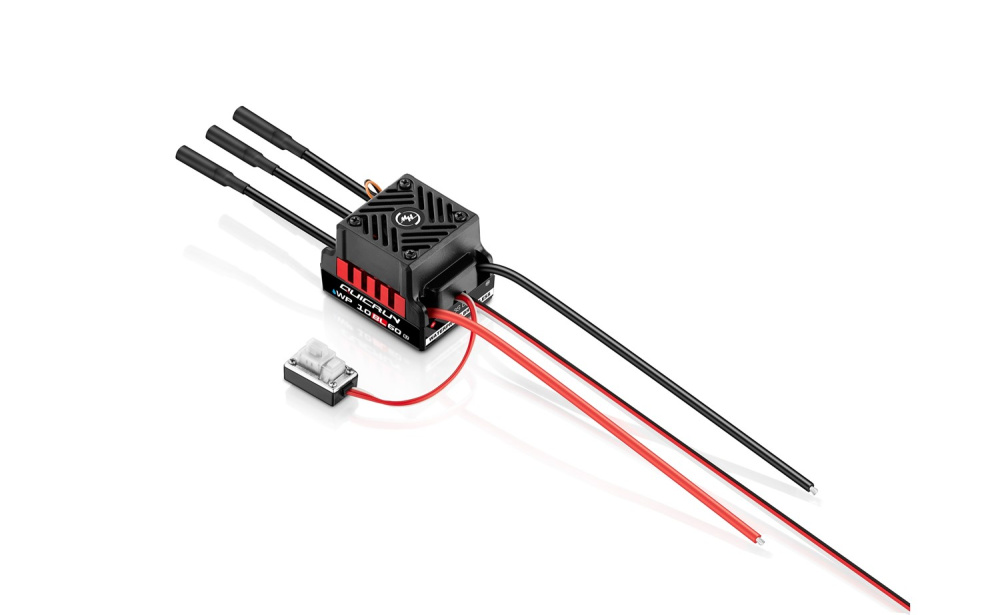

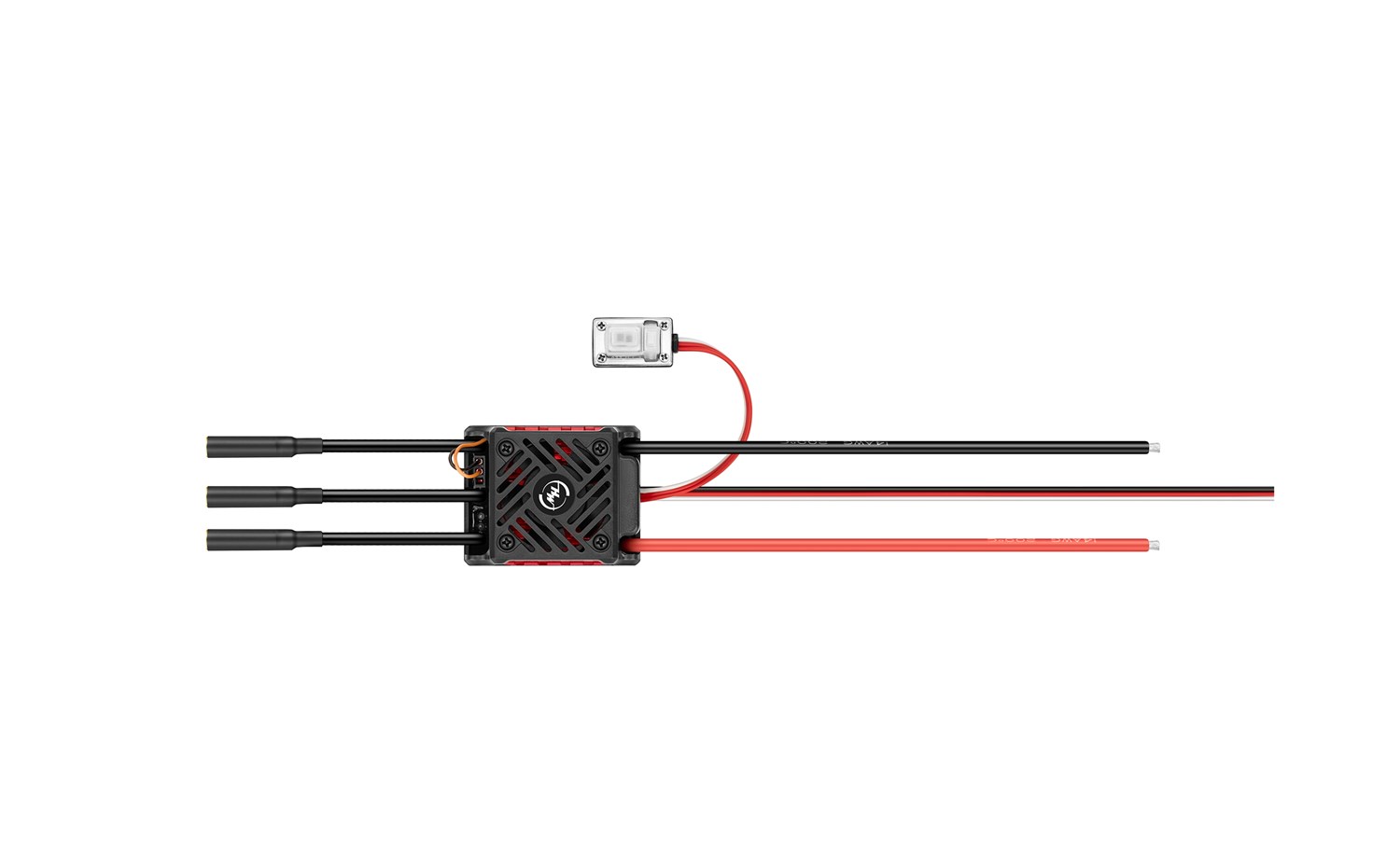

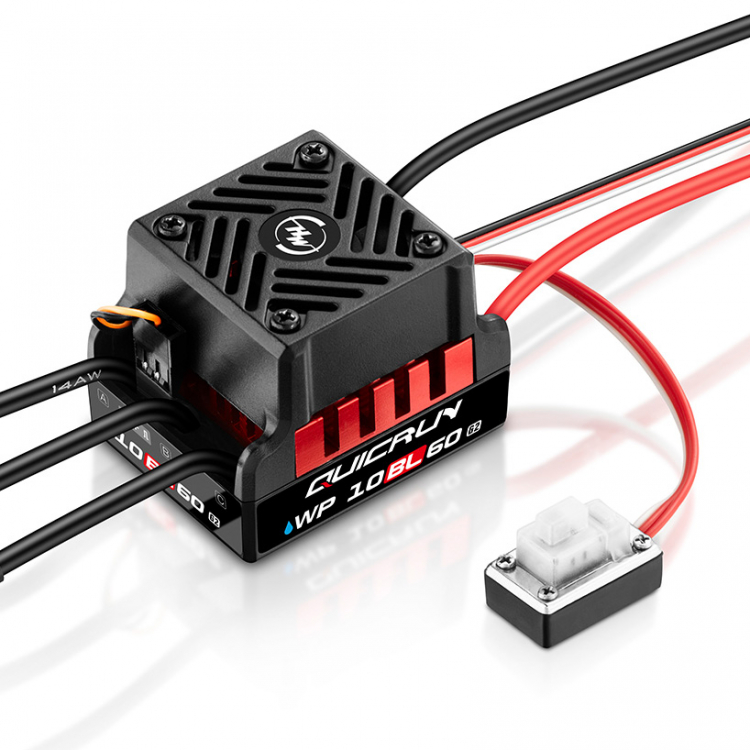

Hobbywing HW30107300 - QuicRun WP 10BL60 G2 ESC


Intelligent freewheeling technology effectively reduces heat generation
The intelligent freewheeling technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature. It further improves on the stability and reliability of the ESC.

Small and compact
The new QuicRun WP 10BL60 ESC is more compact than its predecessor:

  • 2.5mm shorter
  • 1.5mm narrower

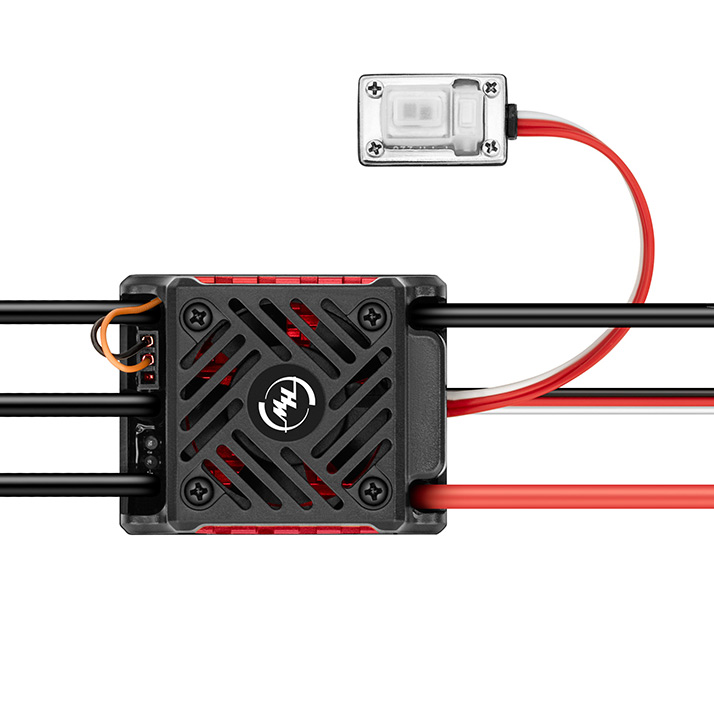

Efficient cooling system
The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling. The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.

Capacitor overheating protection
The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may degrade due to daily wear and aging. Do not submerge in water for a long time, otherwise the product may be damaged.

A vast variety of programming methods
It supports three programming methods:

  • Multi-function LCD programming box PRO, LED programming box, and SET key, making it easy for users to choose their favorite programming method for parameter adjustment.


Great value for money
Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!

Specs:

  • Type: 1/10, brushless, sensorless, waterproof ESC
  • Cont./Peak Current: 60A/360A
  • Input Voltage: 2-3S Lipo
  • BEC Output: Switch Mode 6V @3A
  • Input Wires: 14AWG-150mm
  • Output Wires: 14AWG-60mm
  • Input Connectors: No
  • Output Connectors: 4.0MM Gold (female)
  • Fan Size: 30x30x10mm
  • Fan Voltage Range: 6V
  • Fan Powered by: BEC
  • Firmware Upgrade: Not Supported
  • Size: 46x36.5x34.3mm
  • Weight: 82.6g (Including wires & connectors)


ESC Programing via:

  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD G2 Program Box: Supported
  • LCD PRO: Supported
  • OTA Programmer: Not Supported
  • Program Port: Shared with fan port


Applications:

  • Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
  • Vehicles: 1/10 On-road, Buggy, Short course truck
  • KV Rating/T Count: 2S LiPo: KV≤6000;3S LiPo: KV≤3500(3652/3660 size motor)
