Hobbywing 30102604 EzRun Max10 G2 80A Brushless ESC 2-3S

Art.nr: HW30102604
939,- 999,- -6%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Hobbywing
På lager: 1

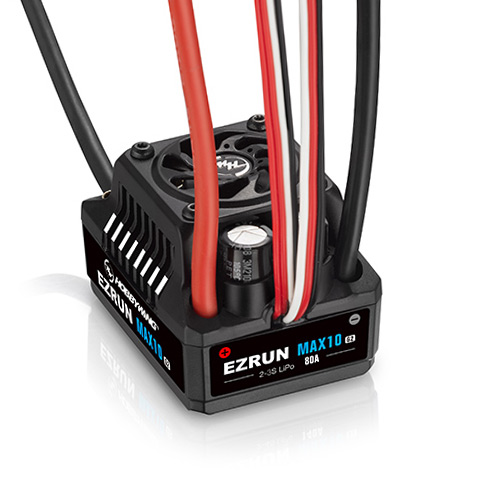

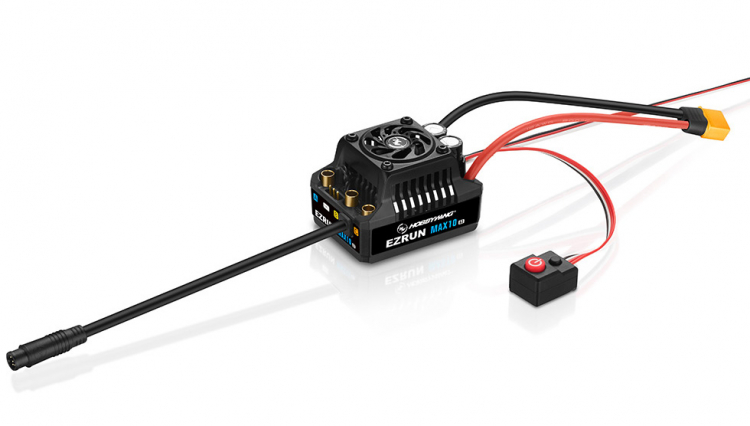

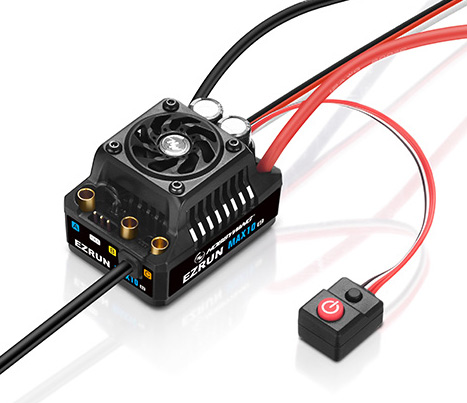

Hobbywing 30102604 EzRun Max10 G2 80A Brushless ESC 2-3S

80A
2-3S kompatibel
Designet for 1/10 biler


Hobbywing EzRun Max10 G2 er vannbestandig og leveres med ferdig påloddet motorkontakter (4mm female gullkontakt) og XT60 batterikontakt. Regulatoren er kompatibel med 2-3s LiPo.

Motorvalg

  • 2S LiPo: 3652-opp til 6000KV
  • 3S LiPo: 3652-opp til 4200KV



Spesifikasjoner

Størrelse 53 x 39.5 x 37,2mm
Vekt 120g
Batterikontakt XT60
Type Børsteløs & Sensor/Sensorløs
Innspenning 2-3S LiPo
BEC 6V/7.4V (kontinuerlig spenning 5A)



Hobbywing Ez-Run Max10 G2 80A ESC (for EzRun 3652SD/3665SD G3 Motors)

Sensor Upgrade, Great Throttle Response

  • Smart technology increases heat dissipation effectiveness
  • Larger capacitor built-in, double explosion-proof
  • Smart freewheeling technology, higher efficiency
  • Data logging, convenient
  • IP67 protection, all-weather use


Upgraded sensor-mode with great throttle response

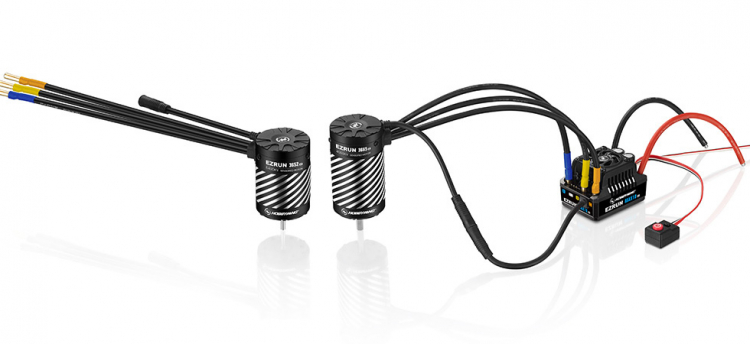

The EzRun Max10 G2 ESC features and improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of throttle respons and perfectly matches the EzRun 3652SD/3565SD G3 motors.

Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more.

  • Turbo timing adjustments: 32 Degrees
  • Speed is significantly increased up to 25%

Compared to the previous generation, the MAX10 G2 has a stronger explosive force and a more stable output power, and at the same time, it has excellent low-speed linearity.

Smart technology increases heat dissipation effectiveness

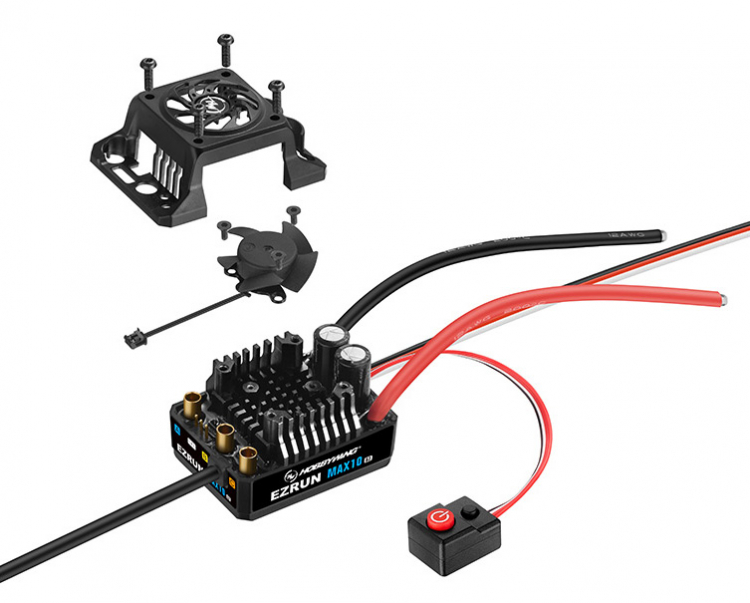

The addition of the patented frameless fan allows a large flow of air outlet on the side of the fan to blow the heat away from the integrated case.
*Patented frameless fan

New technology increases heat dissipation effectiveness
The addition of the patented frameless fan allows a large flow of air outlet on the side of the fan to blow the heat away from the integrated case.

Large built-in capacitor = Double explosion proof
Compared to the previous generation of the Max10 ESC, the total capacitance of the capacitors are increased by 74% and is overheat protected. Improved power delivery from the battery to the ESC to avoid it from overloading and causing the capacitors to explode.

Smart freewheeling technology, higher efficiency
The new smart freewheeling technology enables the Max10 G2 to have higher drive efficiency that the earlier generation, resulting in lower operation temperatures and a minimum temperature of approximately 25°C lower that the previous generation.

Data logging, convenient
After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.

IP67 protection, all-weather use
The IP-67 waterproof system guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The ESC also supports motor with ordinary sensored mode interface. Cables to be purchased separately.

Specs:

  • Scale: 1/10
  • Type: Brushless/Sensored
  • Waterproof: Yes (IP67)
  • Cont./Peak Load: 80/520A
  • Input Voltage: 2-3S LiPo
  • BEC: 6/7.4V @ 5A
  • Input Wires: 12AWG
  • Output Wires: 12AWG
  • Input Connector: XT60
  • Output Connector: 4mm Gold (female bullet)
  • Fan Size: 25x25x10mm
  • Size: 53x39.5x37.2mm
  • Weight: 120g
  • Firmware Upgrade: Supported


ESC Programming via:

  • SET Button on ESC: No
  • LED Program Box: Supported
  • LCD Program Box (G2): Supported
  • Programming Port: Separate


Applications:

  • 1/10 Vehicles: Buggy & Short Course Tryucks (Light Loads)
  • KV Rating 2S LiPo: ≤6000kV
  • KV Rating 3S LiPo: ≤4200kV 3652 size motor
