| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 7.4V |
| Speed (Second @ 60°) | 0.17 ~ 0.11 |
| Maximum Torque Range oz. / in. | 74 ~ 118 |
| Maximum Torque Range kg. / cm. | 5.3 ~ 8.5 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 300 mA |
| Stall Current Draw | 2,900 mA |
| Dead Band Width | N / A |
| Physical Specifications | |
| Dimensions (Metric) | 29.0 x 13.0 x 30.0 |
| Weight (Gram) | 25.0 |
| Circuit Type | 32bit Programmable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | 5 Metal Gears |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | 25 Thooth / 6 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | N / A |
| Radio Control Applications | |
| Parkflyer | < 50 oz. |
| Sport Plane | 42 – 50 oz. |
| Sailplane | < 2 meters and up |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/16th |
| Monster Truck | N / A |
| Buggies | 1/16th |
| Truggies | N / A |
| Short Course / Truck | 1/16th |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | 1/16th |
Varenr 35565

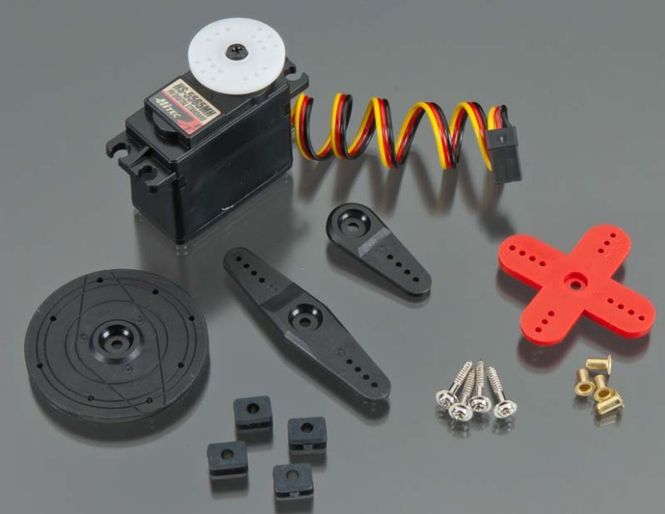

This is the Hitec HS-5565MH High Voltage, High Speed Digital Servo. FEATURES Ideal for 1/10 scale...
Varenr 41920

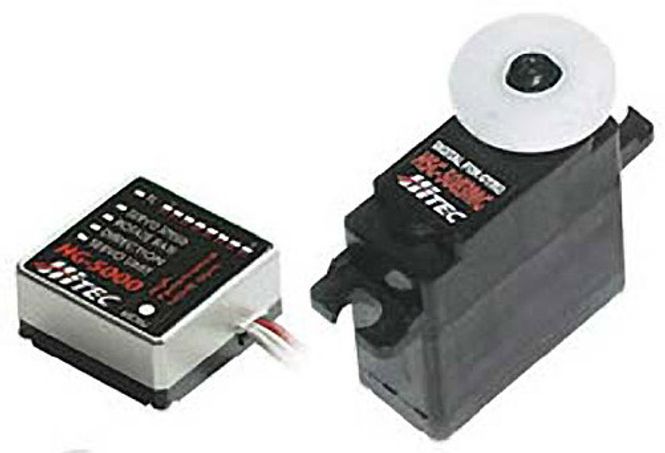

This is the Hitec HG-5000 Micro Heading Lock Gyro and HSG-5083MG Micro Digital Tail Rotor Servo. ...
Varenr 37245

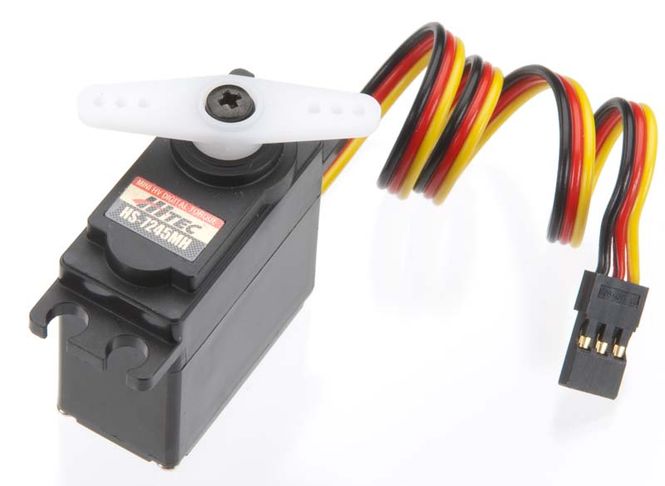

This is the Hitec HS-7245MH Coreless Motor High Torque Digital Mini Servo. FEATURES Ideal for...

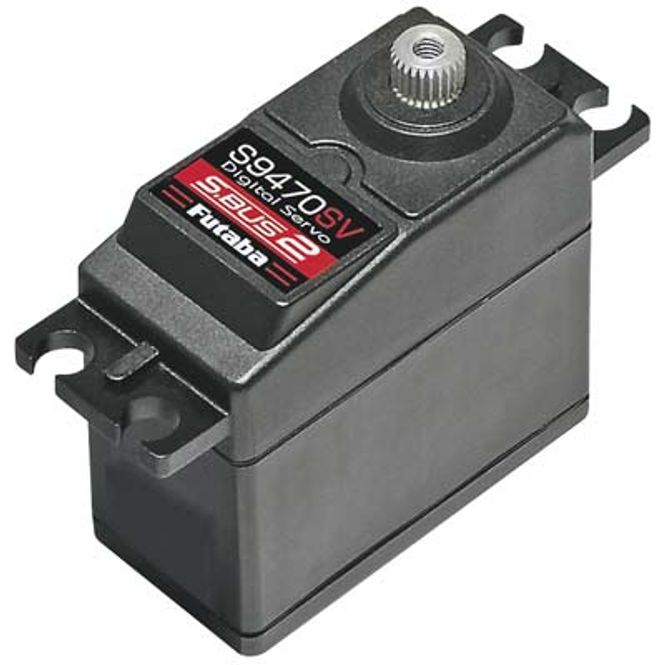

This is the Futaba S9470SV HV SB2 Servo for 10 scale Car Usage. FEATURES Coreless motor Water protected...

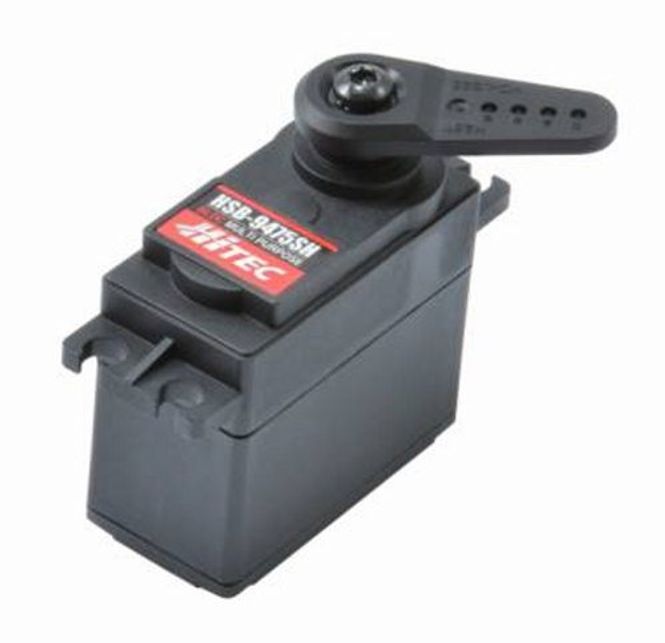

Pro level hobbyists demand the power and precision found in our triple threat HSB-94XX servos. Each one is designed...
