Castle Creations Crawler 4-Pole Sensored BL SLate 1406-1900kV

Art.nr: 060-0068-00
1.395,- 1.495,- -7%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Castle Creations
På lager: 2

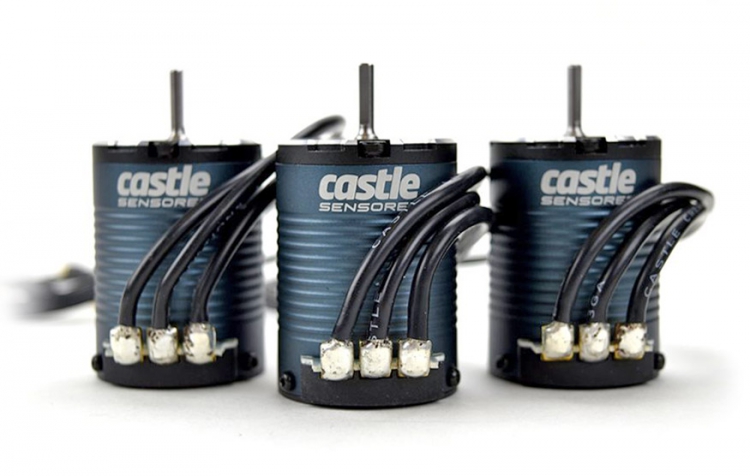

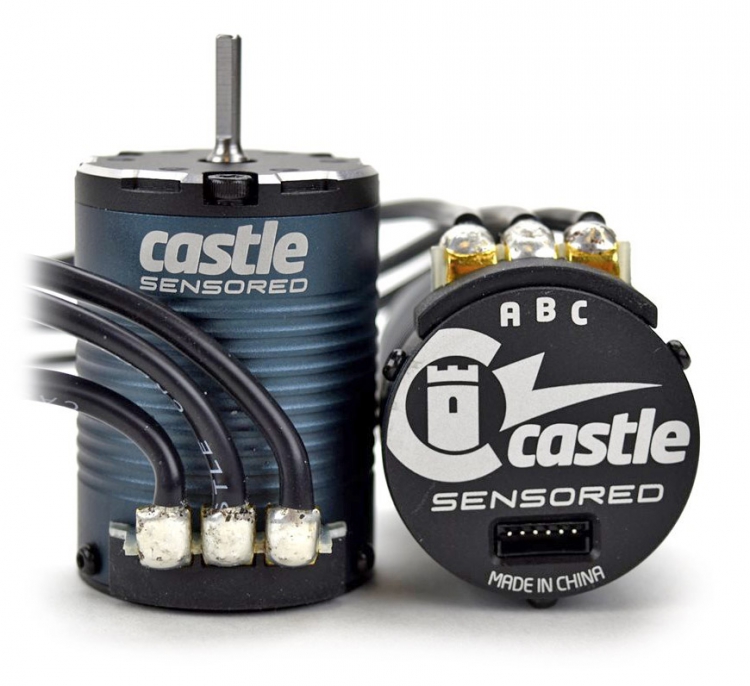

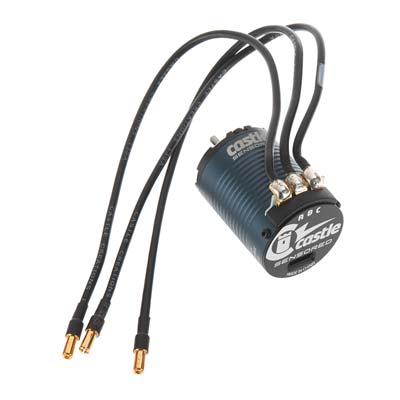

This is the Castle Creations 1406 4-Pole 1900Kv Sensored Brushless Motor.








FEATURES

For 1/10 scale rock crawlers using 2-4S LiPo batteries and weighing
 less than 8lbs (3.6kg), may also be used in more aggressive
 setups in lighter 1/10 scale touring cars, stadium trucks or
 buggies weighing up to 5lbs (2.3kg)
 4 pole 12 slot design for high degree of efficiency and less heat
 SMARTSENSE uses motor's sensors to provide smooth starts, excellent
 torque and low-speed drivability-once motor is turning it
 transitions to sensorless mode
 ROAR standard sensor port and labeled connections
 High performance 0.2mm steel lamination stacked stator
 CNC machined anodized 6061 T-6 aluminum motor can and endbells
 Rebuildable design allows replacement of front end bell/bearing
 assembly or rotor/shaft assembly






INCLUDES

1406 4-Pole 1900Kv Sensored Brushless Crawler Motor






REQUIREMENTS

Electronic Speed Control such as the Castle Creations Mamba Micro X,
 Mamba Max Pro, Mamba X or Mamba Monster X






SPECIFICATIONS

 Input Voltage Range: 3-4S LiPo
 Kv: 1900
 Max RPM: 100,000
 Length: 1.9" (49.5mm)
 Diameter: 1.4" (36mm)
 Weight: 6.9oz (197g)
 Shaft Length: 0.59" (15mm)
 Shaft Diameter: 1.8" (3.17mm)
 Mounting Hole Specs: M3 @ 25mm
 Connectors: 4mm Male Castle Bullet Connectors attached to 13 gauge
 wire
 Sensor Wire Length: 8.3" (210mm)

Castle Creations

Castle Creations

Castle Creations makes the best electronic speed controllers in the industry, possibly the world!  Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
