Castle Creations 2850KV Crawler pakke

Castle Creations

På lager: 4

Fra 2.695,-

27% Rabatt Pris utenom pakke 3.693,-

1

Produkter

Skjul detaljer

Castle Creations Crawler 4-Pole Sensored BL Slate 1406-2850kV

Mer informasjon

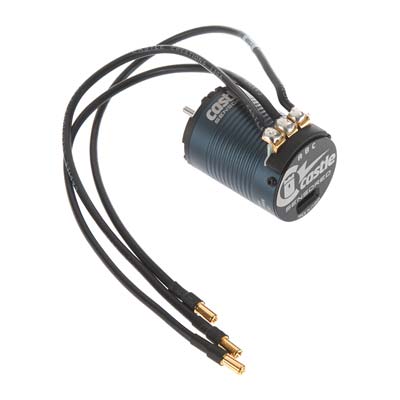

This is the Castle Creations 1406-2850Kv Brushless Sensored Motor.

FEATURES

Ideal for 1/10 scale rock crawlers, trail rigs, touring cars, stadium
trucks and buggies powered by 2-4S LiPo batteries with appropriate
gearing
ROAR standard sensor port and labeled connections
SMARTSENSE uses sensors to provide smooth starts, excellent torque
and low speed driveability
CNC machined 6061-T6 aluminum can, slate gray in color
High performance 0.2mm steel lamination stacked stator
High strength 180°C grade neodymium sintered magnets with Kevlar wrap
Oversize NMB grade ball bearings
Rebuildable

INCLUDES

1406-2850Kv Brushless Sensored Motor with Sensor Wire
Three 4mm Female Castle Bullet Connectors

REQUIREMENTS

ESC such as the Castle Creations Mamba Max Pro, Mamba X and Mamba
Micro X

SPECIFICATIONS

Input Voltage Range: 2-4S LiPo
Kv Rating: 2850
Max RPM: 100.000
Can Length: 1.9" (49.5mm)
Can Diameter: 1.4" (36mm)
Weight: 6.9oz (197g) with wires
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Wire Lead: Castle 13 AWG silicone insulated wire
Connectors: 4mm male Castle Bullet Connectors
Castle Creations MAMBA Micro X2 16,8V WP Sensored ESC 4mm
Mer informasjon
CASTLE CREATIONS MAMBA MICRO X2 1/18 SENSORED ESC WITH 4MM BULLETS

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

Important Product Update, 8/2/2022.

Due to ongoing supply chain disruptions, we have been unable to manufacture the Micro X2. The parts in question are integral to the onboard 2-amp BEC. In an effort to provide the Micro X2 for sale again, we have removed the internal BEC and are including our external 10-amp CC BEC (a $24 value) with every Micro X2 purchase. This upgraded BEC has a wider range of BEC voltages and much higher current capacity. The retail price for the ESC and combos has not changed. For instructions on how to install the CC BEC, please visit www.castlecreations.com/microx2BEC.

Input Voltage range 2S-4S

Waterproof design; included CC BEC is not waterproof.

Sensored Motor capable (with optional sensor harness)

Convenient transmitter programming for six common adjustable settings.

Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)

Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)

Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.

Audible Alerts that will notify you of possible issues with calibrations and error conditions.

Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

Mamba Micro X2 ESC Purchase Includes:

Mamba Micro X2 ESC with 3.5mm connectors

External 10-amp CC BEC

Coupon for free Castle Link USB adapter

Quick Start Guide

Castle Decals

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Specs:

Input Voltage Range: 2S-4S LiPo (16.8V Max)

Operating Environment: Waterproof* design allows for use in nearly any environment

Brake: Proportional

Reversible: Yes, but may be disabled

On/Off Switch: Yes, waterproof

Cooling Fan: Not included

Size (L x W x H): 41.6 x 29.4 x 21.3 mm

Weight (with wires): 47 gr

Connectors: 4 mm bullets

Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended

Product Use Statements:

Applying voltages higher than 16.8 volts will cause irreparable damage to your controller

Minimum recommended battery capacity for 1/18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell

Mamba Micro X2 has 4mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.

Application Guidelines:

1/14 scale RC vehicles weighing up to 1.3kg and 1/10 scale low speed crawler vehicles up to 4kg

Recommended Motors:

- Castle 1406-1900Kv Sensored Motor

- Castle 1406-2280Kv Sensored Motor

- Castle 1406-2850Kv Sensored Motor

Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)

Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters

Tech Notes:

*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Castle Creations CC BEC 10A 6S Switching Regulator

Mer informasjon

This is the CC BEC 10A Receiver Battery Eliminator by Castle Creations.

FEATURES: Eliminates the need for a receiver and servo battery pack
          Draws higher voltage from the motor batteries and drops it to a
            voltage level suitable for the receiver and servos

INCLUDES: One CC BEC receiver battery eliminator

REQUIRES: Installation in the aircraft

SPECS:    Length: 1.2" (30mm)
          Width:   .6" (15mm)
          Height: .4" (10mm)
          Weight: .4oz (11g)
          Input voltage: 5V to 25.2V (2S to 6S LiPo)
          Current output: 12 volts input = 7 amps* continuous, 10 amp peak;
            24 volts input = 5 amps* continuous, 7 amp peak
            *Ratings are determined with a 5mph airflow on the BEC
          Selectable Output: 4.8 - 9.0V via the Castle Link (sold separately)
            Default voltage is 5.1V
