Castle Creations 060-0115-00 4-Pole Sensored Brushless 1520-1650

Art.nr: 060-0115-00
3.095,- 3.295,- -6%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Castle Creations
På lager: 1

Description:

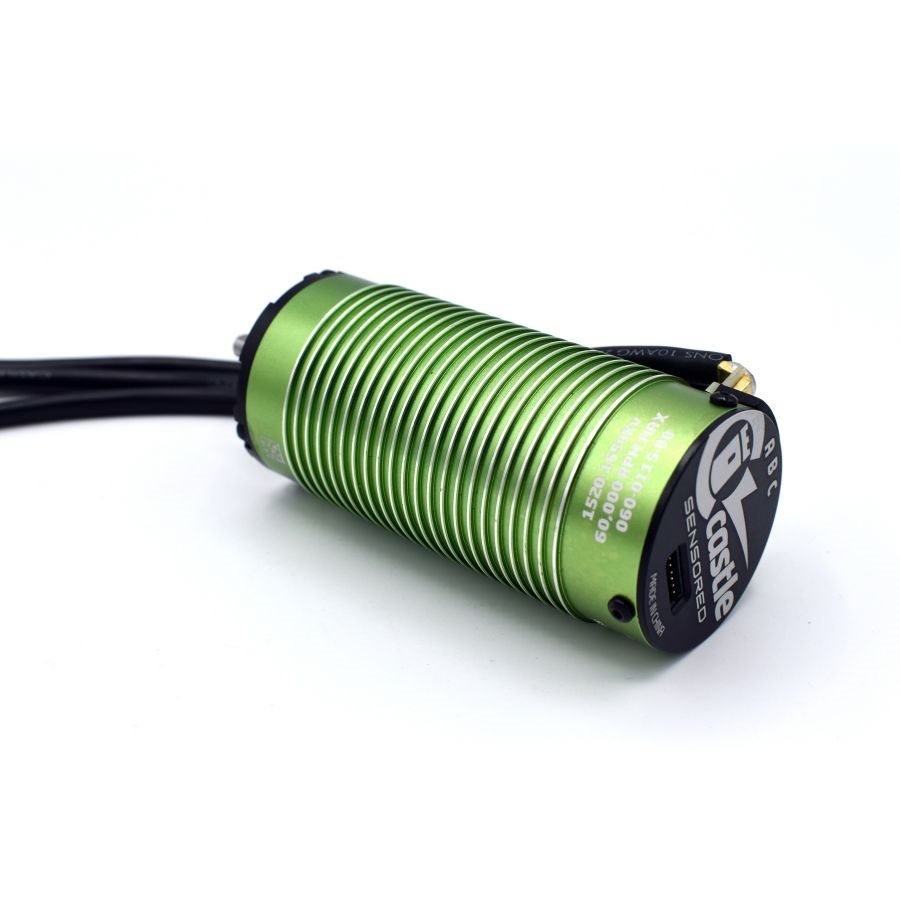

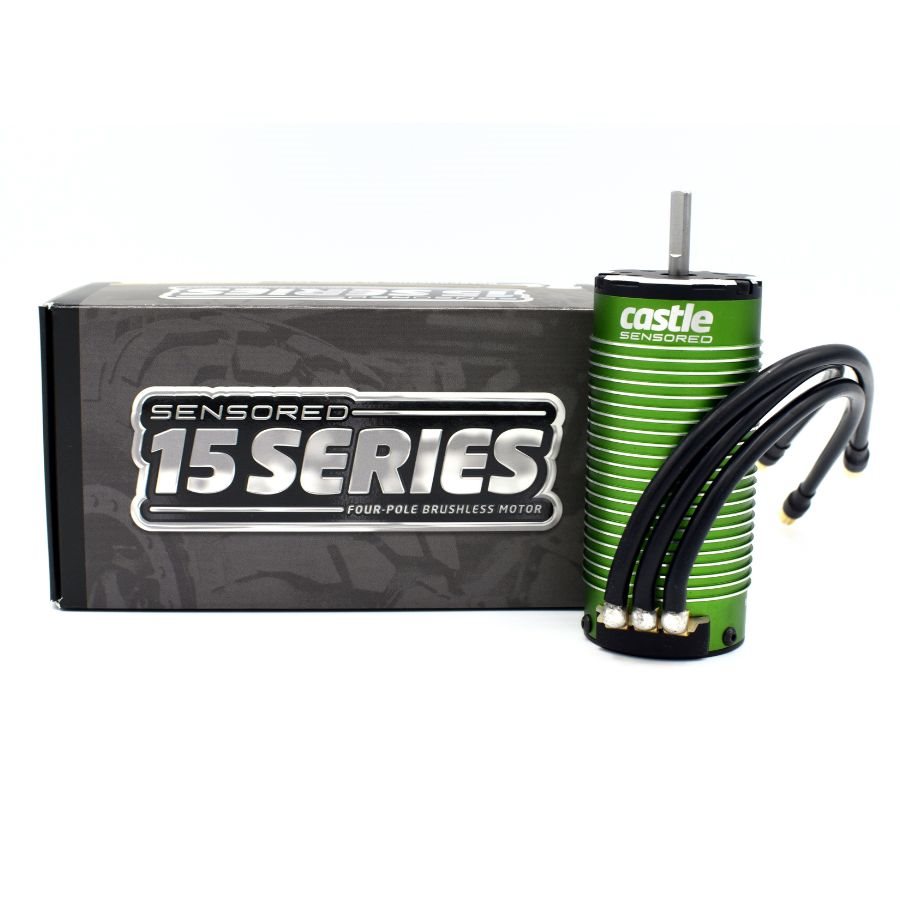

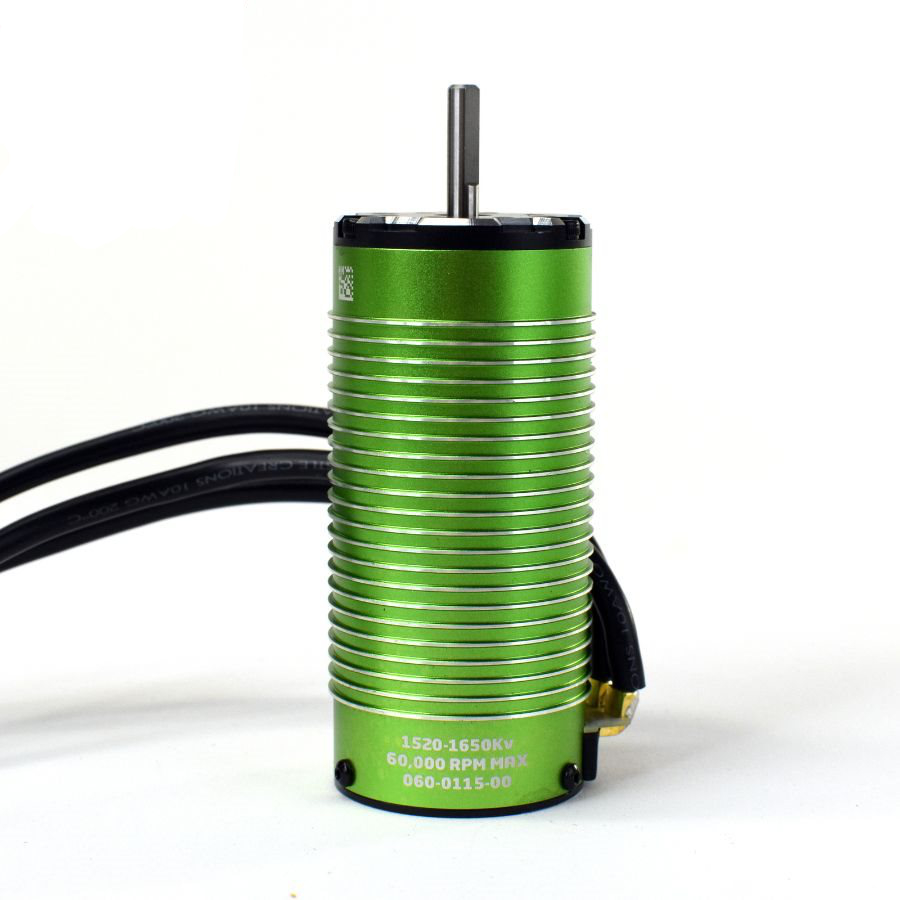

This is Castle Creations 4-Pole Sensored Brushless 1520-1650KV V2 Motor For 1/6 1/7 1/8 RC Car.



Feature:



  • For: 1/6 1/7 1/8 RC Car
  • Material: Metal
  • Color: Green
  • Input Voltage range: 3s-8s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings

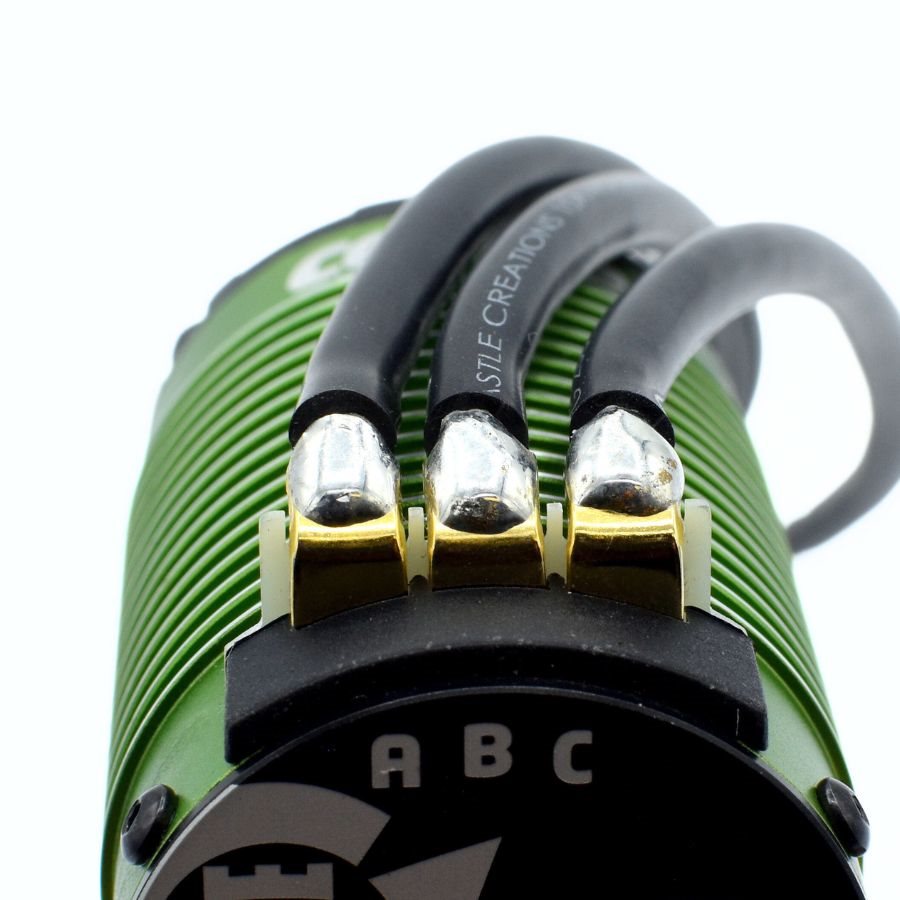

  • 10 AWG, High-Strand-Count Silicone-Insulated Wire w/6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.



Specification:



  • Minimum Input Voltage : 3S
  • Maximum Input Voltage : 8S
  • Sensored Capable : Yes
  • Recon G6 Certified Motor : No
  • ROAR Certified Motor : No



Include:



  • Castle Creations 4-Pole Sensored Brushless 1520-1650KV V2 Motor (1 pc)
Castle Creations

Castle Creations

Castle Creations makes the best electronic speed controllers in the industry, possibly the world!  Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
