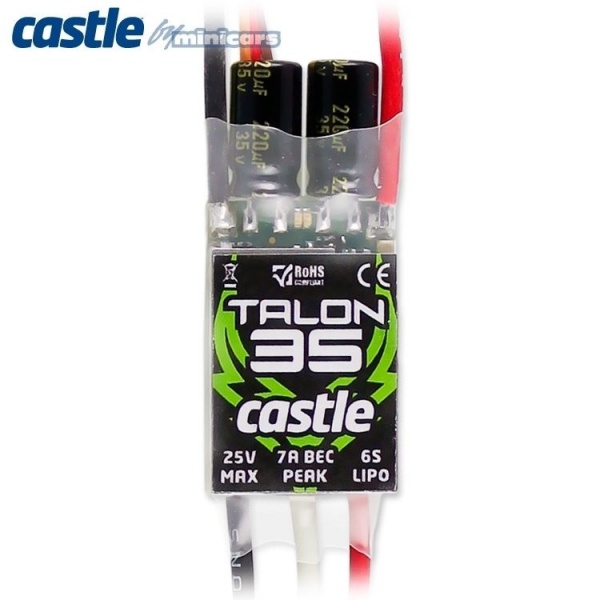

Talon 35: Little package, big BEC.This "mighty mini" can take on the most extreme maneuvers while keeping it's cool. Talon 35 is intended for use in 450 Heli setups running up to 6S or .10 to .20 fixed wing applications pulling up to 35 amps and boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle's industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter. The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.
Specs:
Input voltage: MIN: 2S LiPo - MAX: 6S LiPo
Max continuous amperage at full throttle: 35 amps*
BEC voltage (voltage regulator for powering radio and servos): 5.5 volts
BEC output: 7 amp peak** - 5 amp continuous (always check servo draw prior to first flight)
Dimensions & Weight:
Width: 22.4 mm
Length: 49 mm
Depth: 8.4 mm
Weight (with wires): 27.8 g
Weight (without wires): 12 g
Items needed for operation or installation:
Battery connector and motor connectors sold separately
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software.
*RC HOBBY APPLICATION RATING: 35 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
**Peak indicates amperage sustainable for most servos’ current draw transients. Always confirm servo current draw before the first flight of the model.
Castle Creations makes the best electronic speed controllers in the industry, possibly the world! Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.
Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
