Castle Creations 010-0145-03 Monster X 25.2V ESC/1515-2200kV Mot

Art.nr: 010-0145-03
4.595,- 4.795,- -4%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Castle Creations
På lager: 1

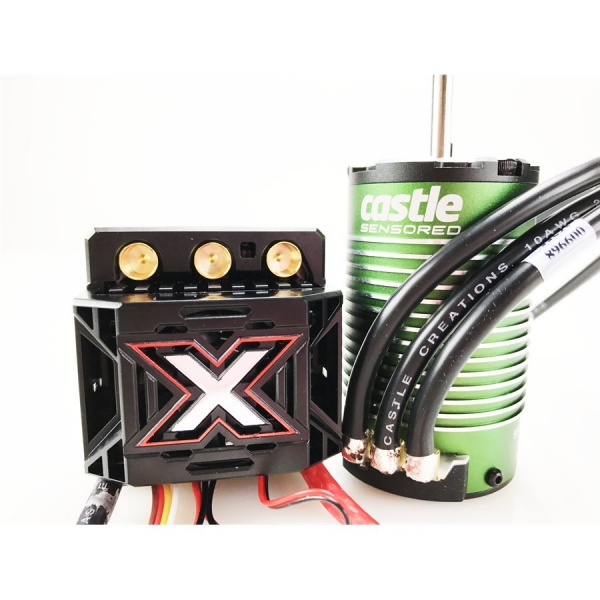

Castle Creations 010-0145-03 Monster X 25.2V ESC/1515-2200kV Motor.

Putting the X in Extreme!

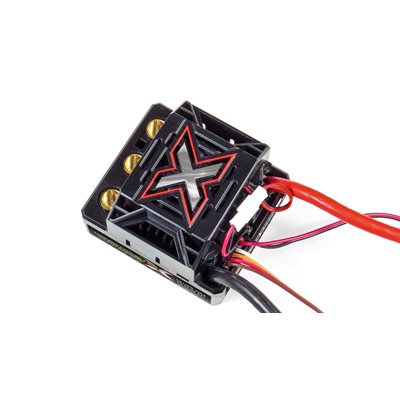

Mamba Monster X is our latest 1:8 scale and Monster truck controller capable of 2S - 6S LiPo, with an 8 amp peak BEC - and, it’s waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. It also comes standard with a highly efficient, 30mm ESC cooling fan. Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

Now With a Sensored Motor!
The Mamba Monster X is now paired with our brand new sensored 15xx series motors.We have taken our award winning 15xx series motors and added sensor capabilities. So now you can all of the torque and performance you know and love and have even more control! We still use the same high quality components as our sensorless motors, such as ultra-thin stator laminations, high temperature sintered neodymium magnet and high RPM ABEC3 bearings. Combo includes required Castle sensor harness and sensor wire for sensored operation.

Why sensored? Some drivers and applications are better suited for sensored motors. Some drivers need smoother throttle control in racing environments. When coming out of a corner a sensorless motor may not provide optimal throttle control and can cause the motor power to surge a bit. With sensored motors the throttle will feel smoother and more linear which allows for more precise throttle management. If you are simply bashing and not racing on a track you will most likely not see the full benefits from a sensored operation.

The Auxiliary Advantage.
Mamba Monster X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter.

Data Logging
Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to quickly access the ESC's receiver wire without having to disconnect from your receiver. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Telemetry Capability
Mamba Monster X is telemetry ready, which means owners of the Futaba T4PX Transmitters are able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

The 1515-2200kv version is capable of 2S to 6S LiPo and is perfect forMonster trucks up to 6S. This is the perfect motor for 1:8 scalebuggies, truggies and on-road vehicles as well as 1:10 scale monstertrucks weighing up to 15 lbs. Paired with our Mamba Monster X ESC youwill have all the power your 1/8th scale vehicle demands with thesmoother throttle control of a sensored motor.

*Although Mamba Monster X and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.


**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

  • SPECIFICATIONS
  • : 2023-04-28
    Application: Car
    Motor Type: Brushless
    kV Value: 2200 kV
    Motor diameter: 40 mm
    Motor length: 75,4 mm
    Shaft length: 20 mm
    Shaft Diameter: 5,0 mm
    Connector: 6,5mm Bullet
    Special: Complete System , Sensor-based
Castle Creations

Castle Creations

Castle Creations makes the best electronic speed controllers in the industry, possibly the world!  Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
