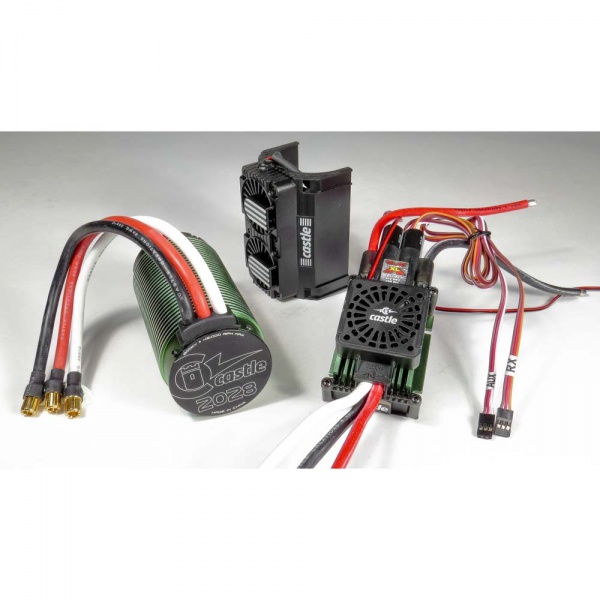

This is the Castle Creations 2028 800kV Sensorless Brushless Motorand Mamba XL X Electronic Speed Control with Cooling Fan.
For 1/5 scale ultra high performance vehicles weighing up to30lbs (13.6kg)
FEATURES
2028 Motor;
Can be powered by 12S LiPo batteries(NB! NB! Esc just 8S lipo)
Designed for heavy throttle action and extended usage characteristic of 1/5 and 1/8 scale off-road vehicles weighing up to 30lbs(13.6kg)
Sealed to keep out dirt and moisture
Rotor is assembled with four high temperature rated 4-poleneodymium magnets
Advanced slotted design stator with super thin steel laminations
High-quality sealed ball bearings
8mm hardened steel shaft
Mamba XL X
ESC;
Adjustable 20A peak
BEC handles powerful servos and electricalcomponents that run off of the ESC
Castle Link compatible
Link Live software enhancement allows drivers to experience real-time telemetry data such as battery voltage, battery current,and ESC temperature
On the Fly Programming modes include;
Max Throttle Percentage Adjustment
Max Reverse Percentage Adjustment
Max Brake Percentage Adjustment
Drag Brake Adjustment
Reverse Enable/Disable
Torque Control Adjustment
Datalog Erase
INCLUDES
Castle Creations 2028 800kV Brushless Motor with 8AWG Motor Leadsand 5mm Female Bullet Connectors
Mamba XL X ESC with Cooling Fan with two 40mm Motor Cooling Fans
SPECIFICATIONS
Motor;
Length: 4.4" (113.2mm)
Diameter: 2.2" (57mm) with fins
Shaft Diameter: 0.31" (8mm)
Shaft Length: 1.18" (30mm)
Weight: 44oz (1247g)
Max RPM: 45,000
Kv: 800
Motor Mount Spacing: 1.18" (30mm)
ESC;
Input Voltage Range: MIN: 3S LiPo, MAX: 8S LiPo
BEC: Adjustable from 5V to 8.4V (20A peak), default 5.5V
Length: 4.81" (122.23mm)
Width: 2.06" (52.38mm)
Height: 2.75" (69.85mm)
Weight: 10.4oz (294g) without battery connector
Castle Creations makes the best electronic speed controllers in the industry, possibly the world! Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.
Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
