Castle Creation Motor Sensor Inrunner 4-Pole 1520-1650KV 1/8-1/6

Art.nr: CC060-0075-00
3.095,- 3.295,- -6%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

** Ikke på lager

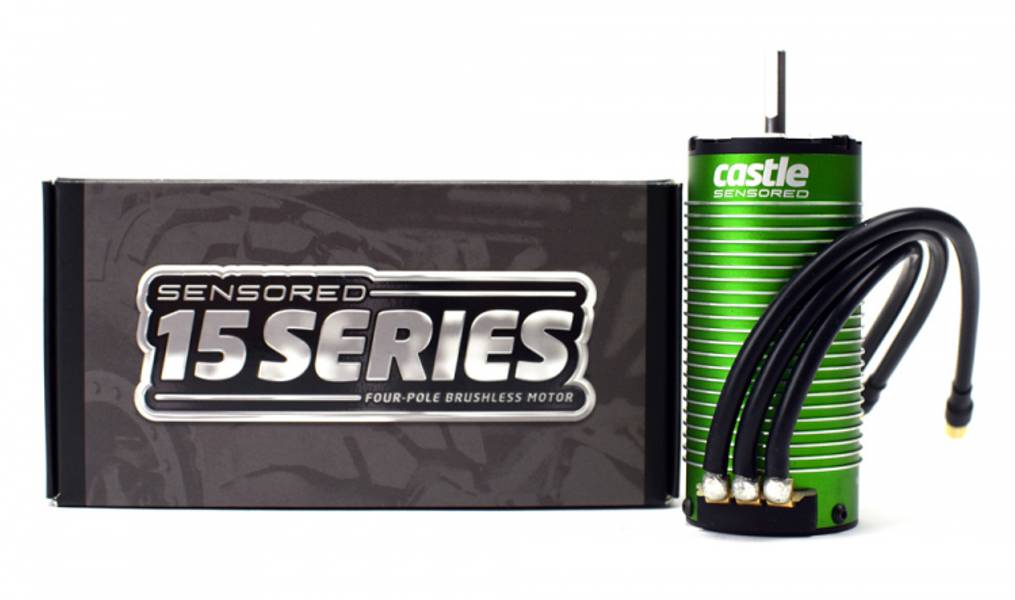

Castle 1520-1650KV - 1Y Sensored Motor

The Castle 1520-1650KV motor is a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. This motor is a blast from the past with the added benefit of sensored capabilities! It is the perfect upgrade for any for 1/8, 1/7 and 1/6 scale vehicles weighing up to 18lbs and up to 8s LiPo. The 1520-1650Kv has all of the secret sauce that the big brother 1717-1650Kv has, but in a more compact diameter, fitting into smaller spaces without modifications to your chassis.

  • Minimum Input Voltage : 3S
  • Maximum Input Voltage : 8S
  • Sensored Capable : Yes
  • Recon G6 Certified Motor : No
  • ROAR Certified Motor : No


Vehicle examples include Losi LST2-E™; Arrma™: Limitless™, Typhon™ 6s, Kraton 6s™, Kraton EXB™, Infraction™ Felony™ 6s, Notorious 6s™, Talion™ 6s; Kyosho Inferno™, Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™


  • Running modes include SmartSense™ Sensored and an ULTRA-EFFICIENT sensorless mode.
  • High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
  • Updated modern and sleek design; looks as cool as it performs.


Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

Specs:

  • Application: The 1520-1650kV motor is intended for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 18 lbs. and running up to 8s LiPo. Examples include Losi LST2-E™; Arrma™: Limitless™, Typhon™ 6s, Kraton 6s™, Kraton EXB™, Infraction™ Felony™ 6s, Notorious 6s™, Talion™ 6s; Kyosho Inferno™, Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
  • Max Weight: 8.1kg
  • Input Voltage: 3s-8s
  • Kv: 1650
  • Max RPM: 60,000
  • Diameter: 41.6mm
  • Length: 88.8mm
  • Weight (with wires): 508g (459g without wires)
  • Shaft Size: 5mm
  • Mounting Hole Specifications: M3 and M4 @ 25.4mm (1.0") Diameter
  • Running Modes: SmartSense™ Sensored and an ultra-efficient Sensorless mode
  • Cooling Fan: N/A
  • Connectors: 6.5mm make connectors and 10AWG wire
  • I tems Needed for Operation: Compatible Electronic Speed Control - We recommend Mamba Monster X 8S


Product Use Statements:
Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC. Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.

Tech Notes:
The 1520-1650Kv is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

Castle Creations

Castle Creations


Castle Creations makes the best electronic speed controllers in the industry, possibly the world!  Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
