Castle Creation MAMBA Micro X2, 16,8V WP Sensored ESC, 3,5

Art.nr: CC 010-0169-00

1.395,- ~~1.595,-~~ -13%

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

Castle Creations

På lager: 1

Informasjon
Produsent

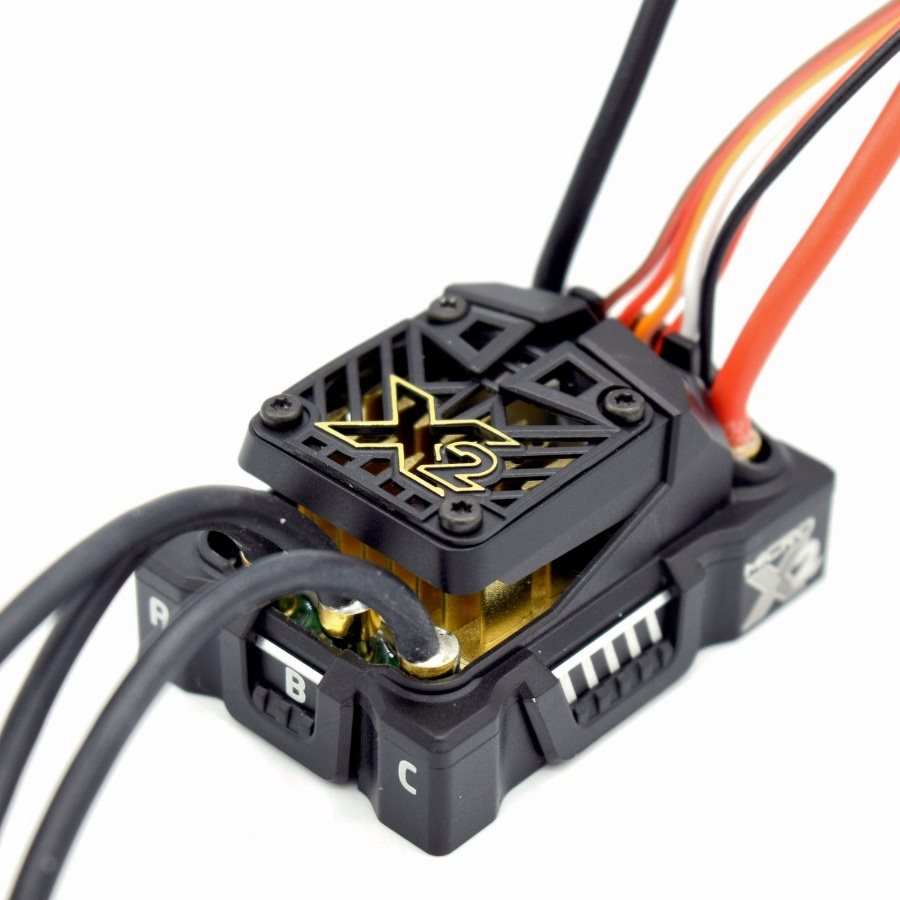

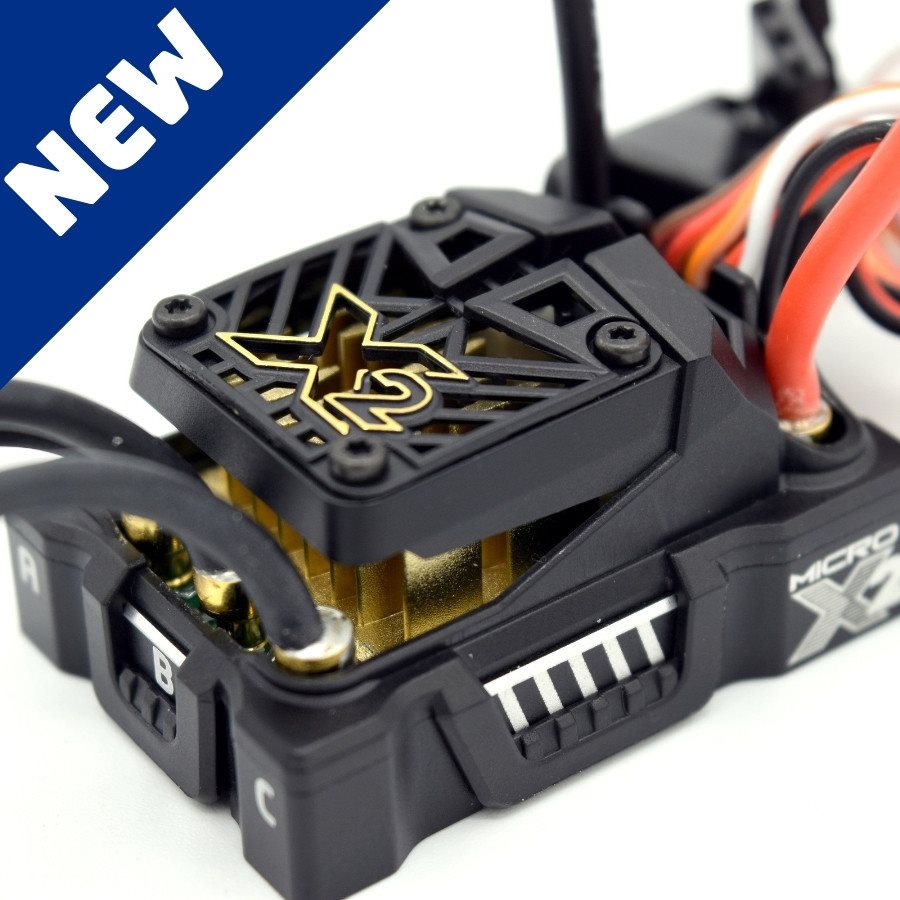

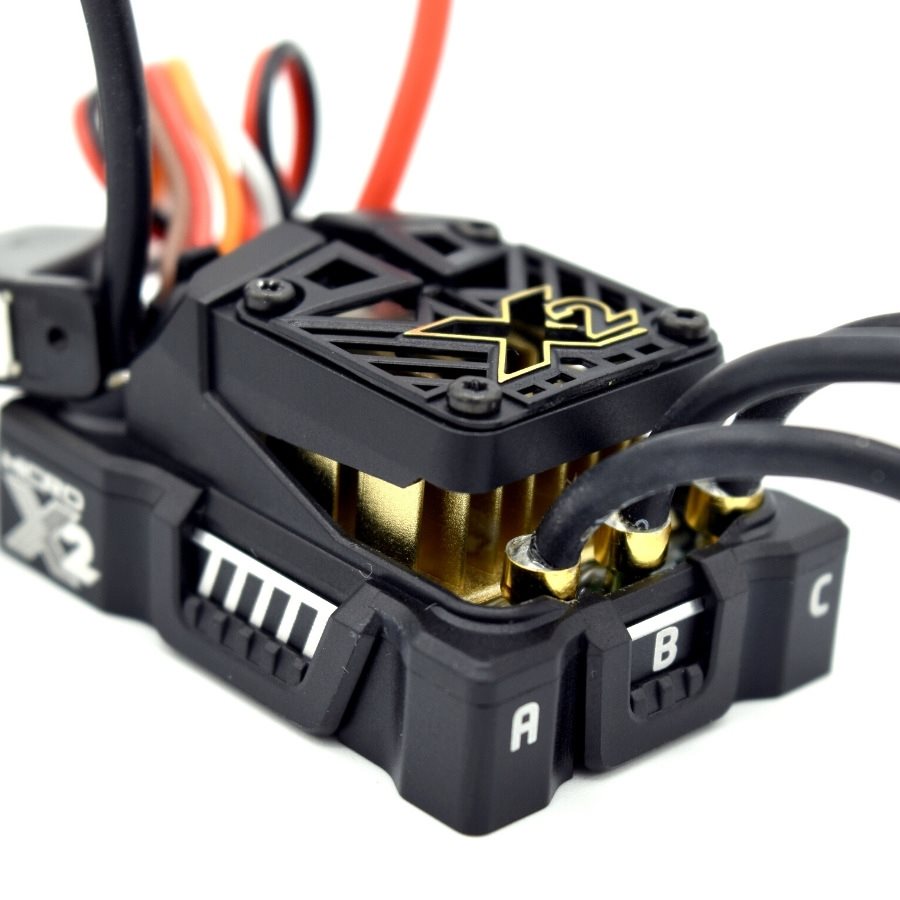

Castle Creation MAMBA Micro X2, 16,8V WP Sensored ESC, 3,5

Putting the X in Extreme!

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC,waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

FEATURES:

Input Voltage range 2S-4S
Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Waterproof design.
Sensored Motor capable (with optional sensor harness)
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.

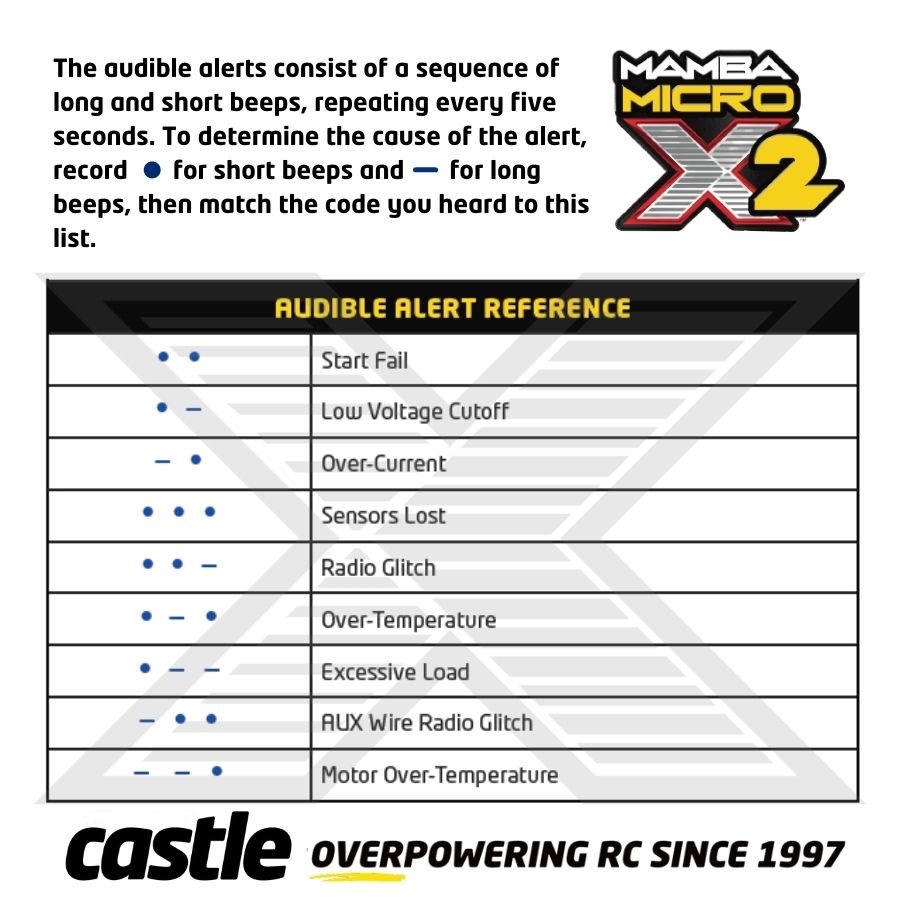

Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

Mamba Micro X2 ESC Purchase Includes:

Mamba Micro X2 ESC with 3.5mm connectors
Coupon for free Castle Link USB adapter
Quick Start Guide
Castle Decals

MAMBA MICRO X2, 16.8V, WP SENSORED ESC

Putting the X in Extreme!

Input Voltage range 2S-4S
Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Waterproof design.
Sensored Motor capable (with optional sensor harness)
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

Mamba Micro X2 ESC Purchase Includes:

Mamba Micro X2 ESC with 3.5mm connectors
Coupon for free Castle Link USB adapter
Quick Start Guide
Castle Decals

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Technical Specs
Input Voltage Range:	2S-4S LiPo (16.8V Max)
BEC Specifications:	Adjustable; 5.5V or 7.5V (default 5.5V) 2A Peak
Operating Environment:	Waterproof* design allows for use in nearly any environment
Brake:	Proportional
Reversible:	Yes, but may be disabled
On/Off Switch:	Yes, waterproof
Cooling Fan:	Not included
Size (L x W x H):	41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires):	1.66 oz / 47 grams
Connectors:	3.5 mm bullets
Items Needed for Operation:	Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Product Use Statements:	Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty. Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell). Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Application Guidelines:	1:18 scale RC hobby vehicles weighing up to 2.25lbs.
Recommended Motors:	Castle 0808 4100Kv: Max Cells: 3S Lipo or 8 NiMH Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH Castle 0808 8200Kv: Max Cells: 2S Lipo or 8 NiMH
Max. Recommended Vehicle Weight:	2.25 lbs, with batteries, ready-to-run
Programmability:	Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable:	Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Tech Notes:	*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

Castle Creations

Castle Creations makes the best electronic speed controllers in the industry, possibly the world! Our engineers have spent countless hours integrating features and firmware that no other manufacturers can match.

Speed Controllers enabled with SmartSense use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
