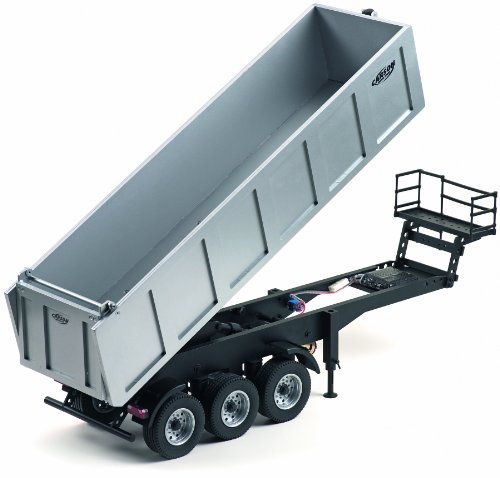

The CARSON dumper semi-trailer in scale 1:14.5 is a detailed model of the
dumpers, used in the local traffic of construction sites.
Load up your dumper semi-trailer and off you go with a truckload of sand,
flint or stones to the next construction site or a stone pit. With the
separately availabe dump-mechanics (spindle drive with shaft joint Item 907056)
the basin can be dumped respectively the load unloaded. After lowering of the
basin, the back wall is secured automatically with a 2-hook locking.
Technical Details:
- Basin and back wall made of reinforced PVC, CNC-milled
- suspension of GFK with horizontal rods
- air-spring dummy (screw springs)
- aluminium chassis CNC-milled
- 12 ball-bearings
- 6 trailer rims wide
- 6 wide tires for trailer rims
- 7-chamber tail lights
- license plate mount lightened
- plastic fenders with mount
- automatical 2-hook back wall locking
- aluminium underbody protection CNC-milled
- trailer supports mechanically adjustable
- support plastic/metal composite construction CNC-milled
- hydraulic cylinder dummy
- Measurements (L x W x H) 700 x 185 x 235 mm
- tire width 25 mm
- tire outer-Ø 82 mm
- weight 4.600 g
- max. load approx. 10.000g
