"Bulk" Spektrum Firma 5687-750Kv 4-pole Brushless Motor

Art.nr: BULK SPMXSM2400
1.995,- 2.595,- -23%

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Spektrum
På lager: 1

*** This is a Brand new item taken from a kit (chopped part), therefore will not have a Spektrum packaging ***

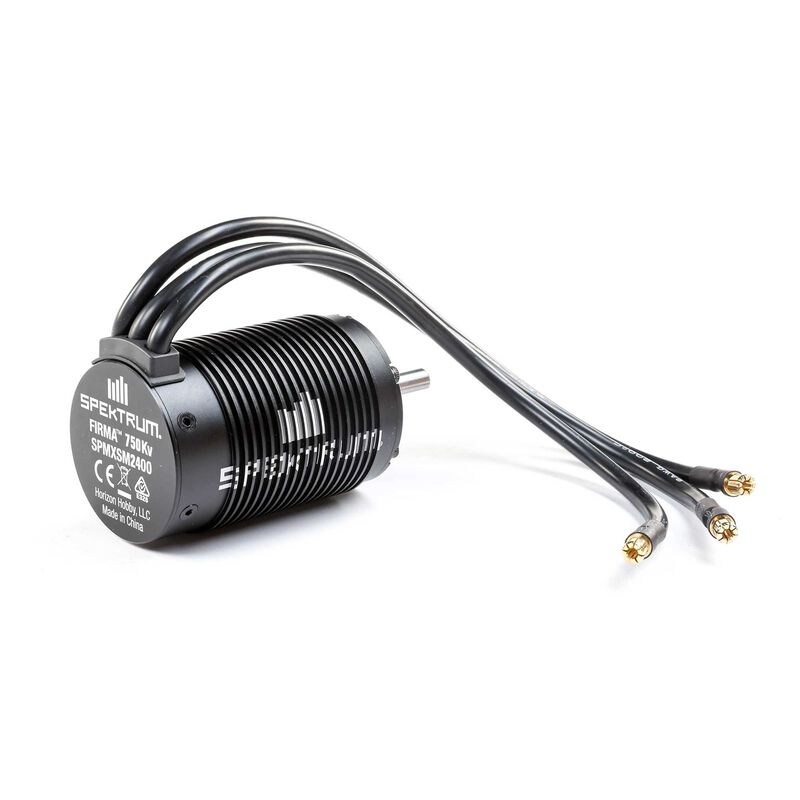

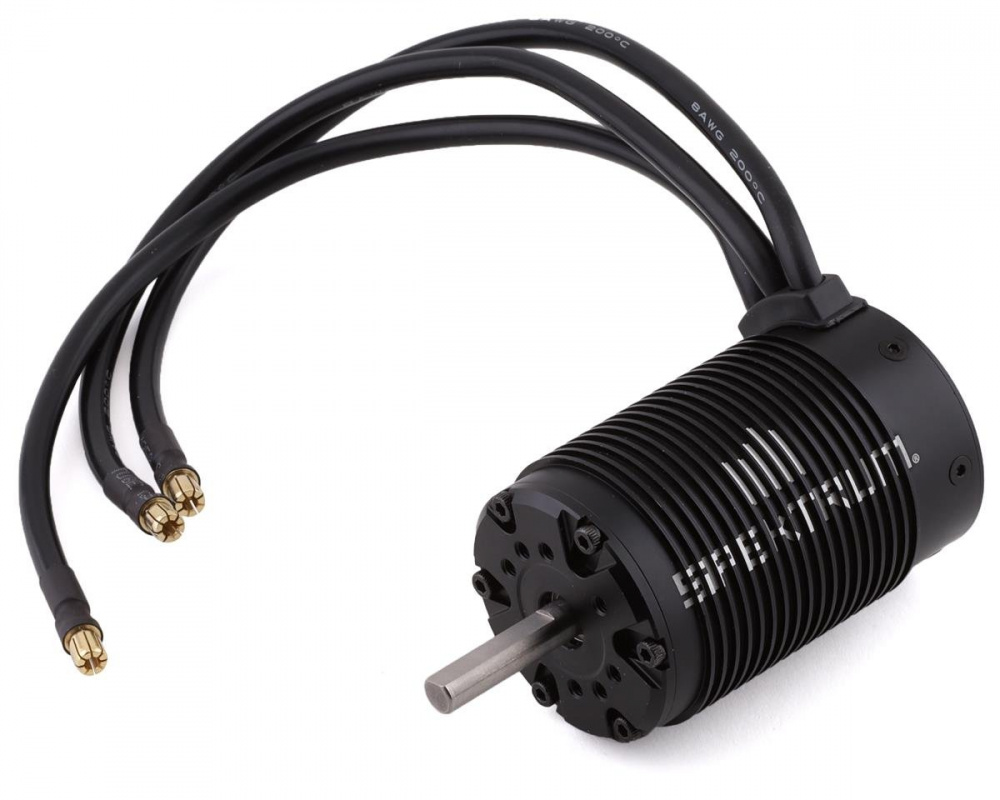

BULK Spektrum Firma 5687-750Kv 4-pole Brushless Motor

Spektrum RC Firma 5687 4-pole Brushless Motor. This is the replacement motor for the Losi Super Baja Rey 2.0.



Key Features
  • 4S LiPo Capable
  • Low Cog 4-Pole 8-Magnet Rotor Design
  • Alloy steel 8mm Output Shaft
In The Box
  • Firma 5687 - 750Kv 4-Pole Brushless Motor
Needed to Complete
  • 150A ESC

Overview

The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

  • Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
  • High efficiency design
  • 4S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft

Product Specifications

Application 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup
Connector Type 6.5mm Bullet
Efficiency 87%
Input Voltage 12 25.2V
Maximum Continuous Current 80A
Motor Design Inrunner
Motor Size 5687
Motor Type Brushless - Sensorless
Number of Poles 4
Outer Diameter 2.2" (56 mm)
Output 3950W
Product Length 3.43" (87 mm)
Product Weight 2.08lbs (947g)
RPM/Volt (Kv) 750Kv
Shaft Diameter 0.314" (8 mm)
