The 1/10 scale Axial® SCX10™ III Jeep® JLU Wrangler 4WD kit marks the next step forward in scale off-road action. While continuing to incorporate key components that have made SCX10™ vehicles successful, the SCX10™ III increases chassis realism with details that include a replica V8 engine to house the front-mounted 540 motor. It's mated to a realistic transmission housing and transfer case, like a 1:1 vehicle.
The kit's versatile transmission can be built in several ways. If you're using a 3-channel radio like the Spektrum™ DX3™, you can set it up with a third-channel DIG function that lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius. Another 3-channel option is to set up the vehicle with a two-speed transmission to select between high and low speeds. To have access to the two-speed transmission and DIG function simultaneously, just add another servo and use a radio with at least four channels (such as the 5-channel Spektrum™ DX5).
The SCX10™ III Jeep® JLU Wrangler kit uses portal axles to improve performance by increasing the ground clearance and reducing torque twist. Its standard battery tray accepts full-size standard LiPo or NiMH packs. There's also space on the side rails for drivers who prefer "shorty" packs. Inner fenders and floor sides hide internal components that would usually be visible from the side of the chassis.

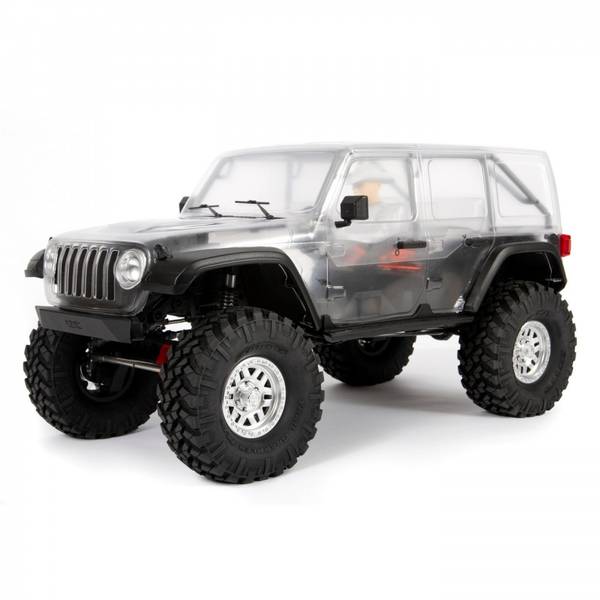

To top off the chassis, the kit comes with a clear Jeep® Wrangler Unlimited four-door body that's ready for finishing however you like. Scale details include a roll cage, front hood vents and cowl, windshield wipers, mirrors, door handles and more, plus a detailed interior. New taller and wider, officially licensed Nitto Trail Grappler tires on 3-piece licensed KMC Machete beadlock wheels add more scale realism and more grip on dirt, rocks, and all other off-road trails.
Needed to Complete
What's in the Box?
Scale features including a replica V8 engine, transmission housing, and transfer case all cover and protect your electric motor while adding to the realistic appearance.
The SCX10™ III Jeep® JLU Wrangler has a standard battery tray that accepts full-size standard LiPo or NiMH packs. There's space on the side rails, too, for drivers who prefer smaller size packs or need additional power for other accessories.
Using 3-channel control, the kit's transmission can be set up one of two ways: with high and low speeds or with a DIG function that locks the rear axle from the transmitter on command, for the tighter turning radius of front wheel drive. With another servo and 4-channel control, both options can be made available simultaneously.
Portal Axles like those found in some full-size off-roaders provide higher ground clearance and reduce the torque on other drivetrain components for improved performance.
The SCX10™ III Jeep® JLU Wrangler kit wheelbase is adjustable with optional links, allowing you to choose the wheelbase of your choice.

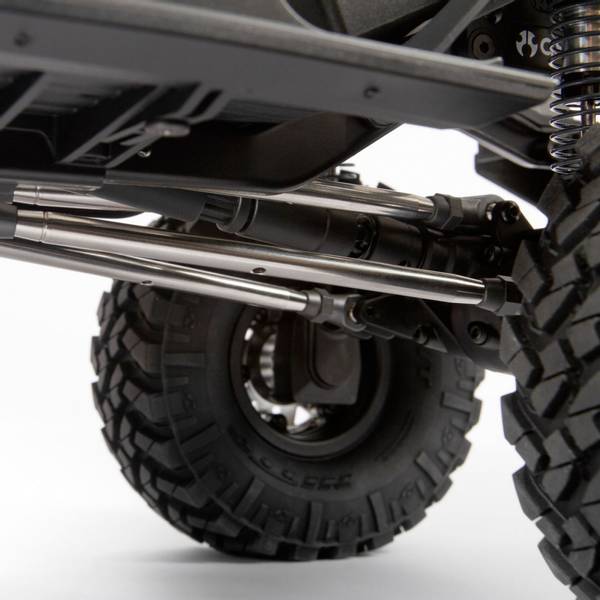

The suspension geometry is based on the SCX10™ II but refined slightly for the new chassis layout. The front suspension has been optimized to reduce bump steer, while the rear 4-link reduces torque twist.

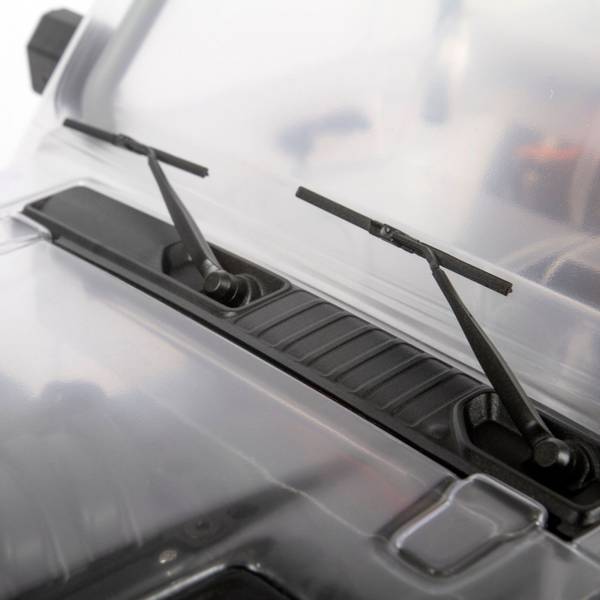

The clear scale Jeep® Wrangler Unlimited body mirrors its full-size counterpart with a detailed interior for "super scale" looks. The interior has a molded roll cage, steering wheel, and driver head. There are many molded scale details on the body, too: front radiator/light buckets; front hood vents; front cowl; windshield wipers; mirrors; door handles; and fuel door.

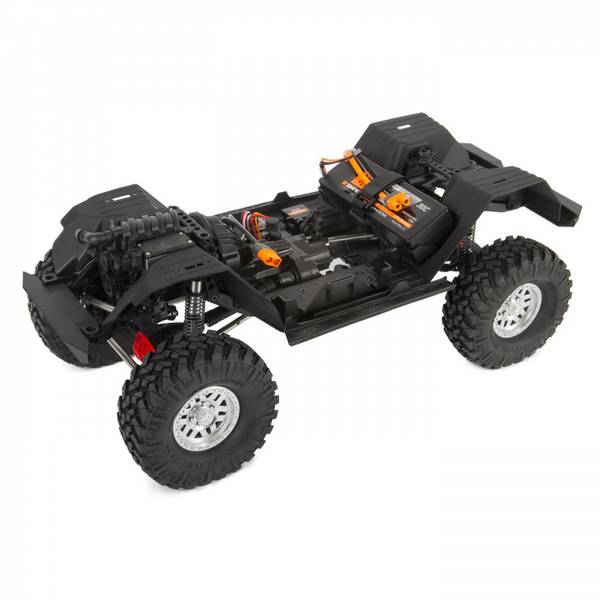

The SCX10™ III Jeep® JLU Wrangler kit body's inner fenders and floor sides hide internal components that would usually be visible from the side of the chassis. The sealed receiver box can be removed to give you more space for the electronics of your choice. An extra tree of body posts is included, allowing you to customize your rig with any 12.3" wheel based bodies.
The S30 compound Nitto Trail Grappler tires included with the SCX10™ III Jeep® JLU Wrangler kit are taller and wider (4.74 x 1.7), providing more ground clearance and more grip in the variety of terrain that you will find while you're off-roading.
Legendary in the off-road world, these officially licensed KMC XD Machete wheels are molded in satin chrome and include stunning scale details. Because they're 3-piece beadlock wheels, tires can be mounted, removed and replaced easily without gluing.
The oil-filled shocks have clear anodized, threaded bodies, a single coilover spring, plus an emulsion-style cap with screw for easier rebuilds. The shocks are tunable for achieving the best dampening rate. Their increased bore size also creates more fluid volume for better performance.
CMS has become a standard in scale RC and the SCX10™ III is designed with that standard in mind. The servo is mounted in the chassis, just as a full-size Jeep has its steering box located on the frame.
Using a 3-channel transmitter and a micro servo, you have control on demand. The SCX10™ III kit transmission can be configured in one of two ways. Set it up for 2-speed using the high and low gears or set it up for front dig to have a tighter turning radius with the rear axle locked. With a 4-channel transmitter and a second micro servo, it can be configured to use both features.
Spec:
Manufacturer #
605482689325
Product Weight
6.5 lbs (2.9kg)
Tire Tread
Nitto Trail Grappler M/T
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Approximate Assembly Time
7-10 Hours
Body
Clear polycarbonate Jeep Wrangler Unlimited with detailed interior
Brakes
Integral with ESC
Pinion
14T
Scale
1/10
Battery
Sold Separately
Ground Clearance
3 in (76.2mm)
Motor Size
540 (sold separately)
Product Length
19.125" (486 mm)
Spur Gear
40T
Steering Type
2WS
Suspension
Multi-link solid axle
Wheel Width
1 in (25.5mm)
Ball Bearings
Complete set
Chassis
Adjustable steel C-channel
Completion Level
Kit
Drivetrain
4WD
Product Height
9.5" (241 mm)
Tire Compound
R30
Wheel Hex Size
12mm
Final Drive Ratio
45.6:1
Speed Control
Sold Separately
Wheelbase
12.3" (312 mm)
Power Type
Electric
Gear Pitch
32-Pitch
Servos
Sold Separately
Product Width
9.25" (235 mm)
Radio
Sold Separately
Bushing Material
Metal
Charger
Sold Separately
Differential
Locked
Max Battery Dimensions
5.47 x 1.85 x 0.98 in (139 x 47 x 25mm)
Receiver
Sold Separately
Shock Type
Oil-filled coil over spring
